Multifunction Switch, Wiper/Washer Portion - Front: Schematic

WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

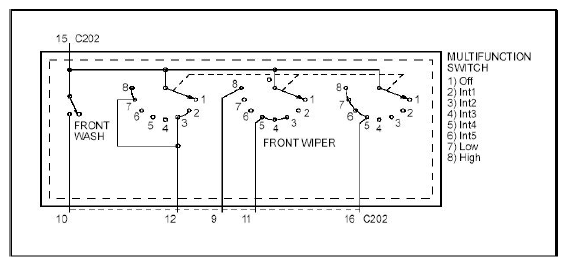

Fig 1: Multifunction Switch, Wiper/Washer Portion - Front Schematic
G09092215Courtesy of FORD MOTOR CO.
