WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

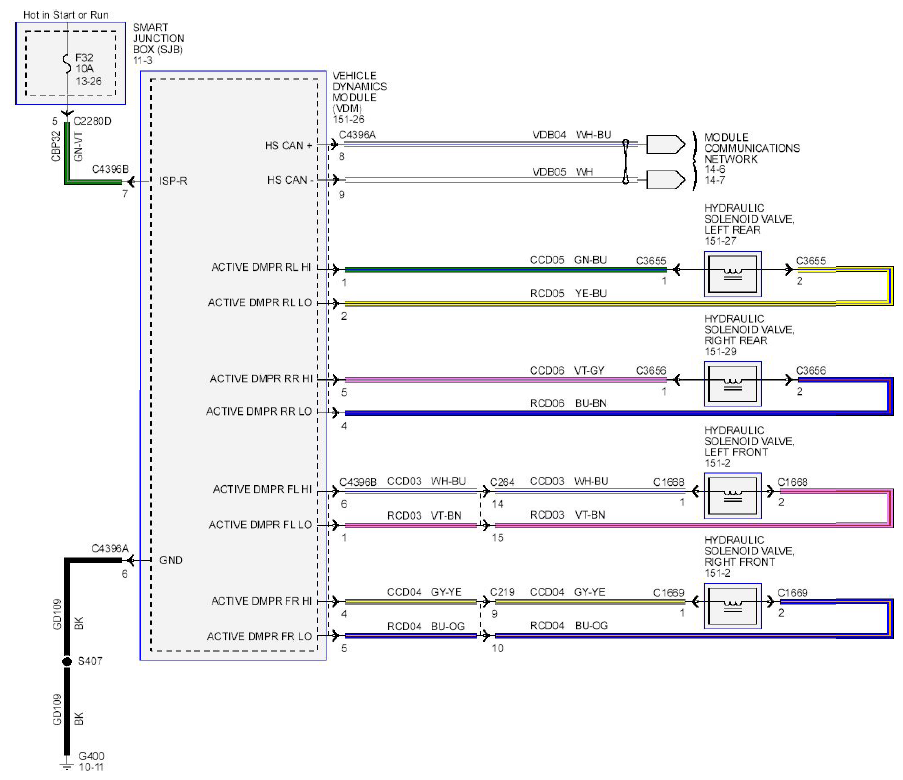

Fig 1: Vehicle Dynamic Systems - Wiring Diagram (5.8L; 1 Of 2)
Courtesy of FORD MOTOR CO.

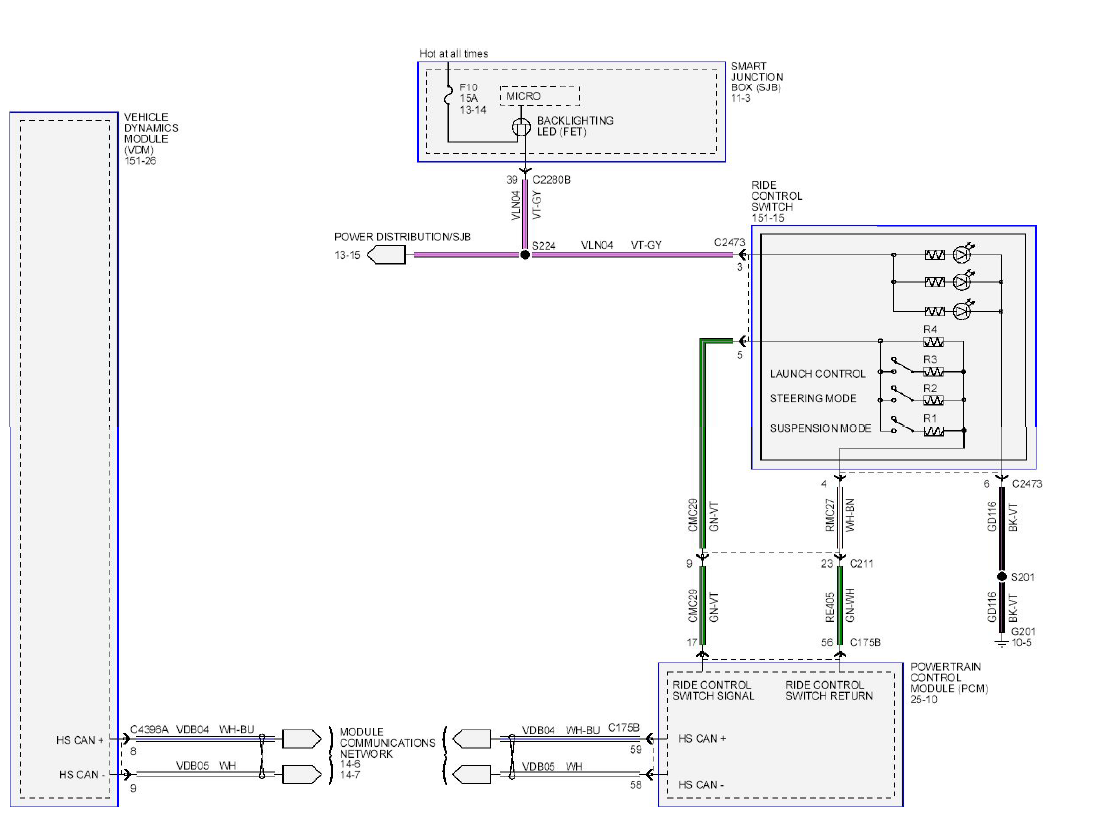

Fig 2: Vehicle Dynamic Systems - Wiring Diagram (5.8L; 2 Of 2)
