Turn Signal/Stop/Hazard Lamps: Notes

WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

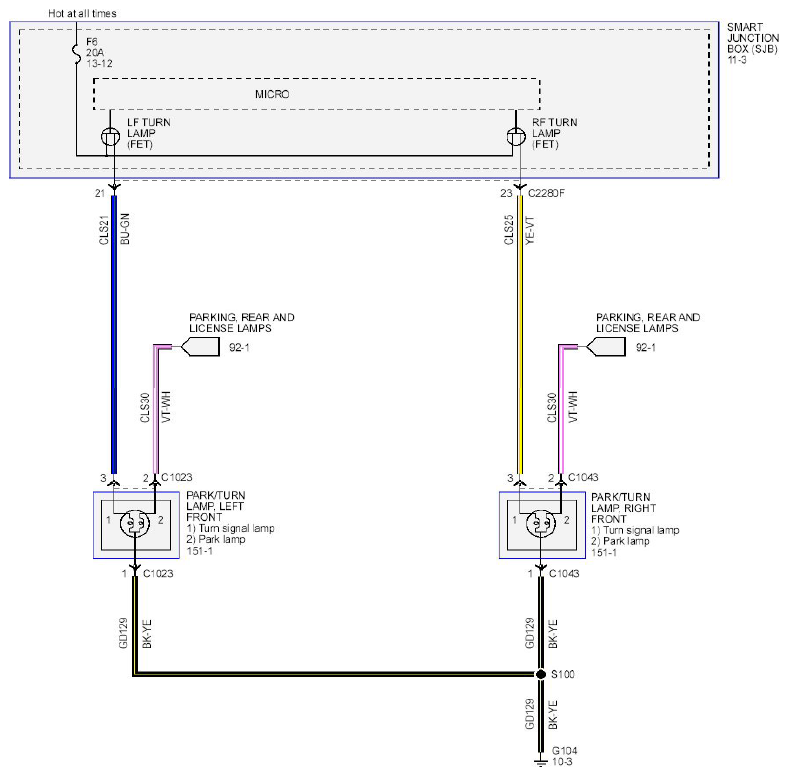

Fig 1: Turn Signal/Stop/Hazard Lamps - Wiring Diagram (1 Of 6)

Courtesy of FORD MOTOR CO.

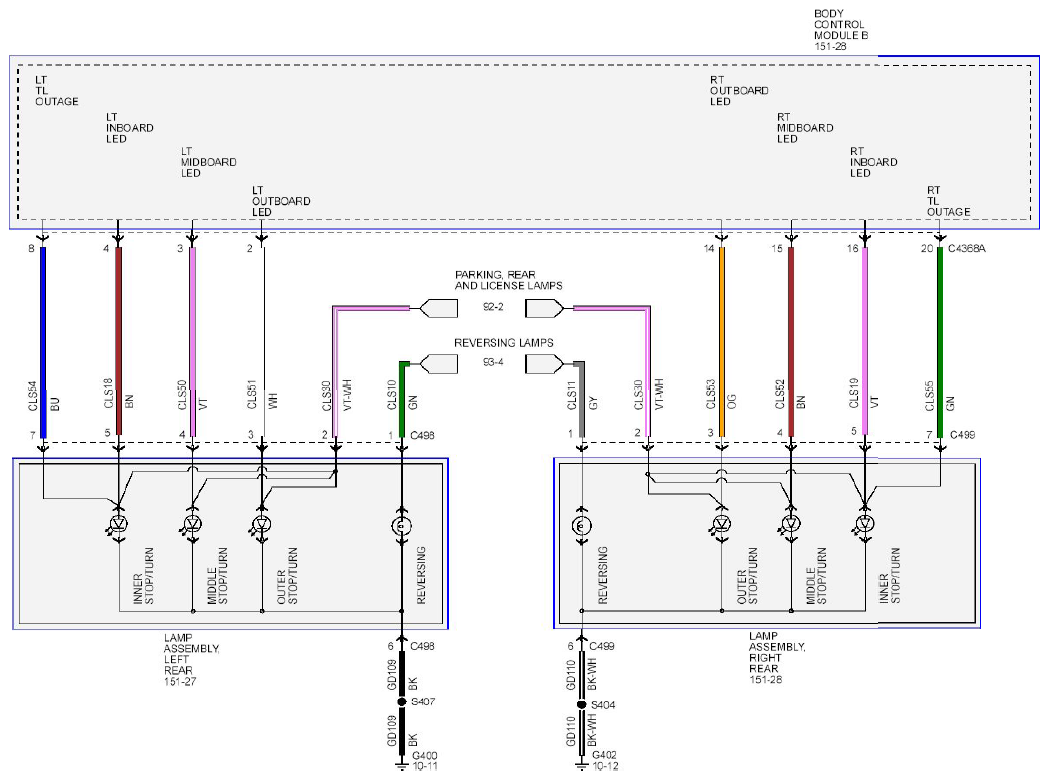

Fig 2: Turn Signal/Stop/Hazard Lamps - Wiring Diagram (2 Of 6)

Courtesy of FORD MOTOR CO.

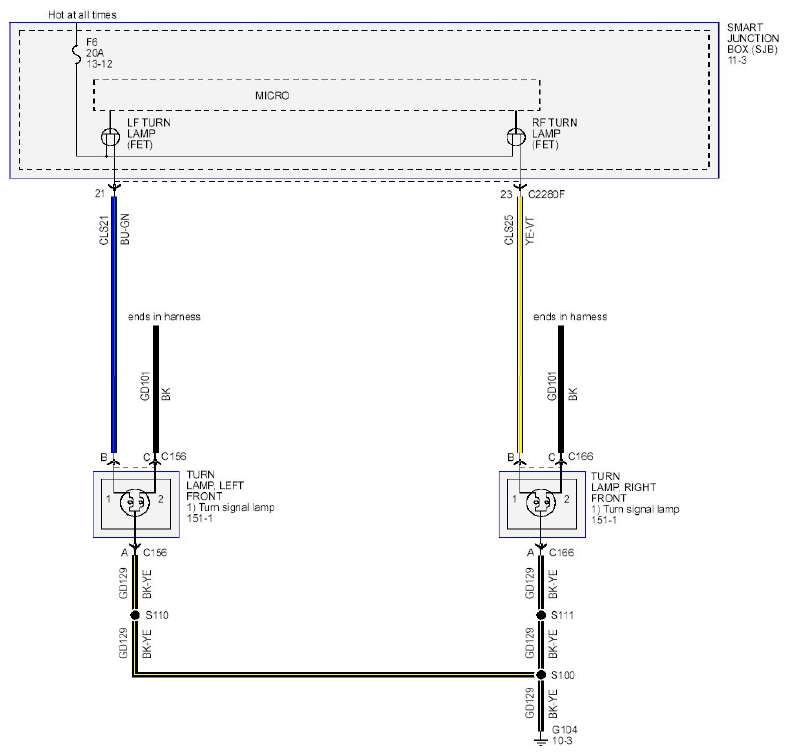

Fig 3: Turn Signal/Stop/Hazard Lamps - Wiring Diagram (3 Of 6)

Courtesy of FORD MOTOR CO.

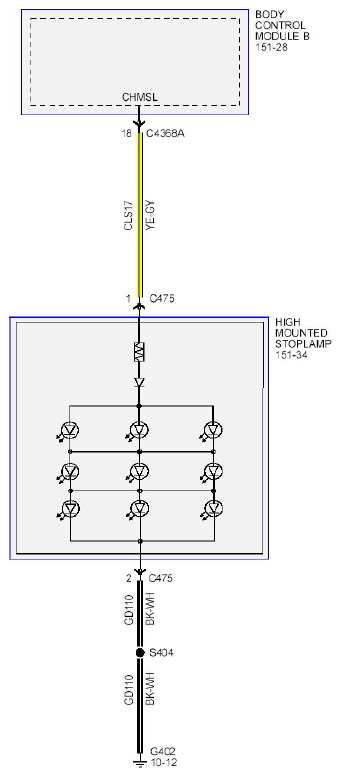

Fig 4: Turn Signal/Stop/Hazard Lamps - Wiring Diagram (4 Of 6)

Courtesy of FORD MOTOR CO.

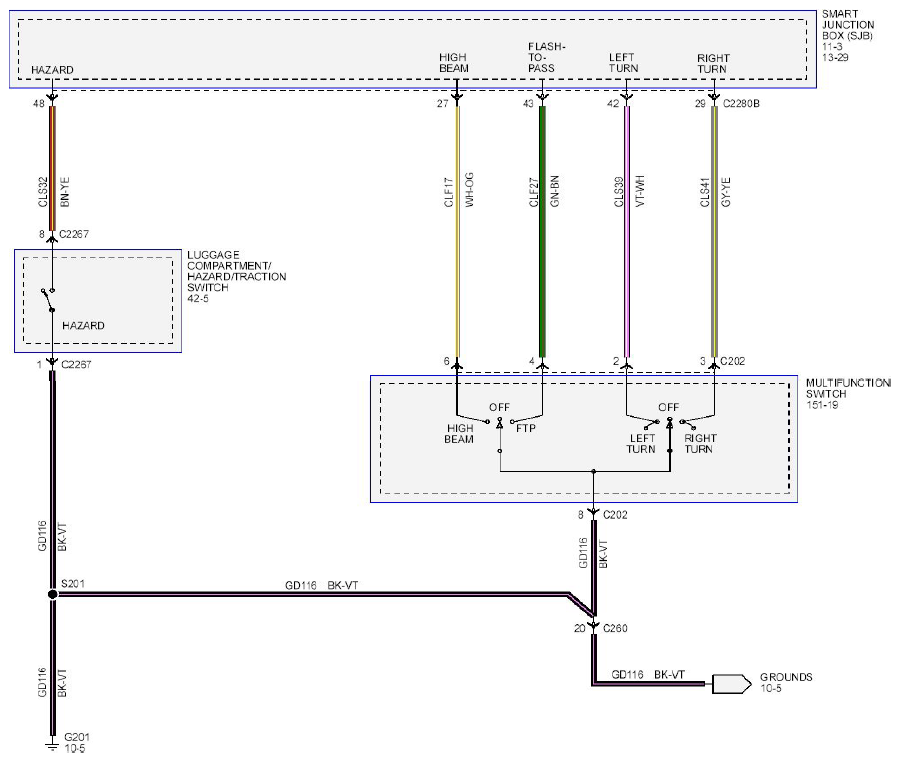

Fig 5: Turn Signal/Stop/Hazard Lamps - Wiring Diagram (5 Of 6)

Courtesy of FORD MOTOR CO.

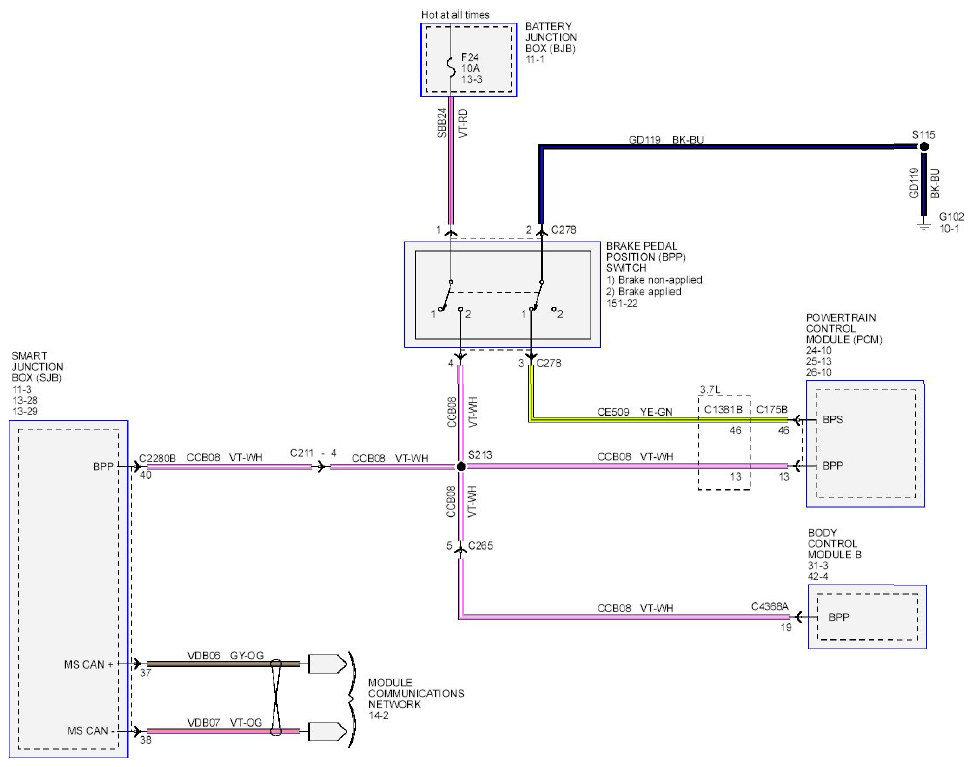

Fig 6: Turn Signal/Stop/Hazard Lamps - Wiring Diagram (6 Of 6)

Courtesy of FORD MOTOR CO.
