Transmission Controls - 6R80

WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

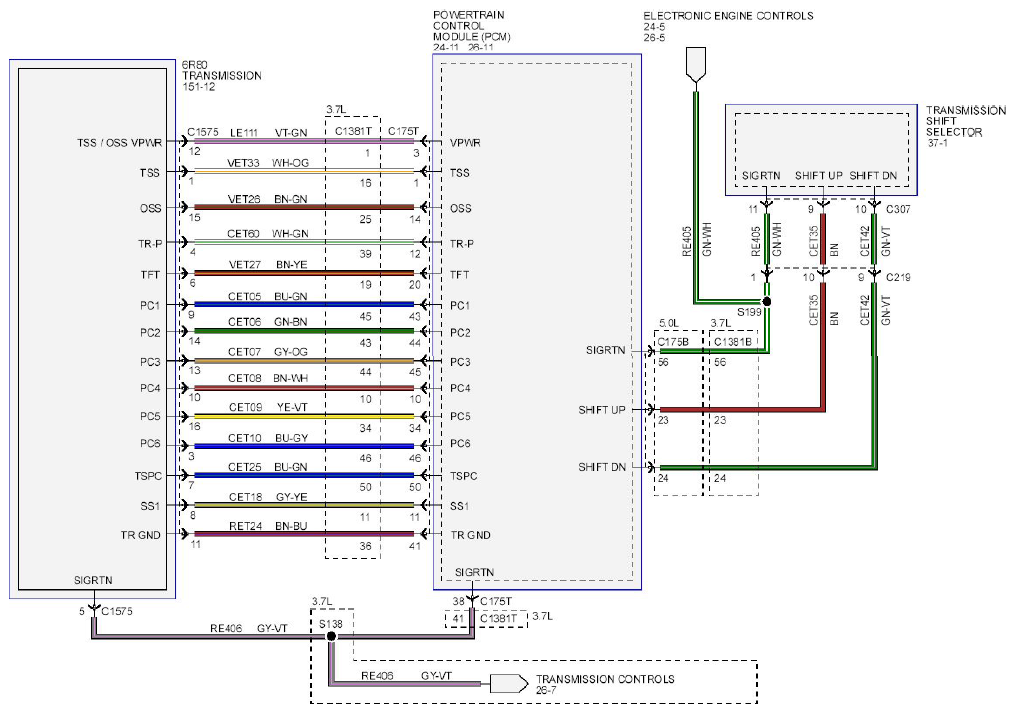

Fig 1: Transmission Controls - Wiring Diagram (6R80)
G09092093Courtesy of FORD MOTOR CO.
