Reversing Lamps: 5.8L

WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

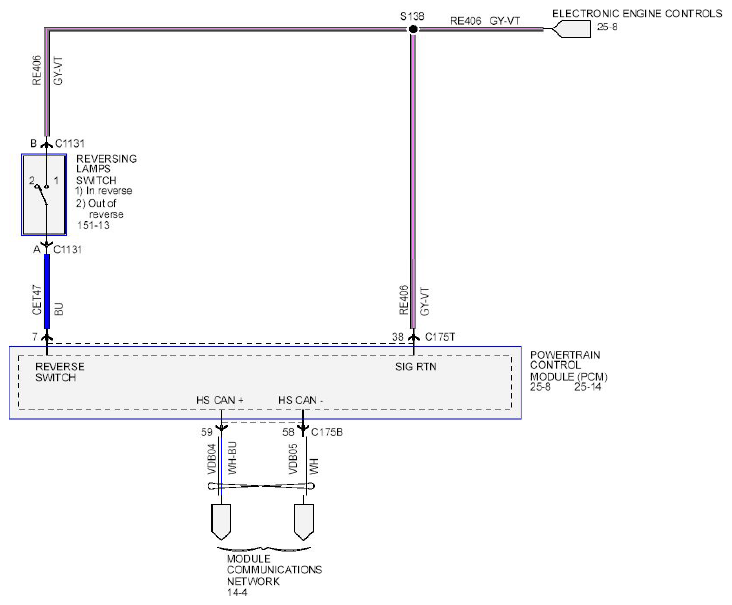

Fig 1: Reversing Lamps - Wiring Diagram (5.8L)
G09092164Courtesy of FORD MOTOR CO.
