Section 210 (OEM Wiring Diagrams)
>>
Power Mirrors
>>
Rear Video Camera Without Navigation
Rear Video Camera Without Navigation
WARNING:
This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

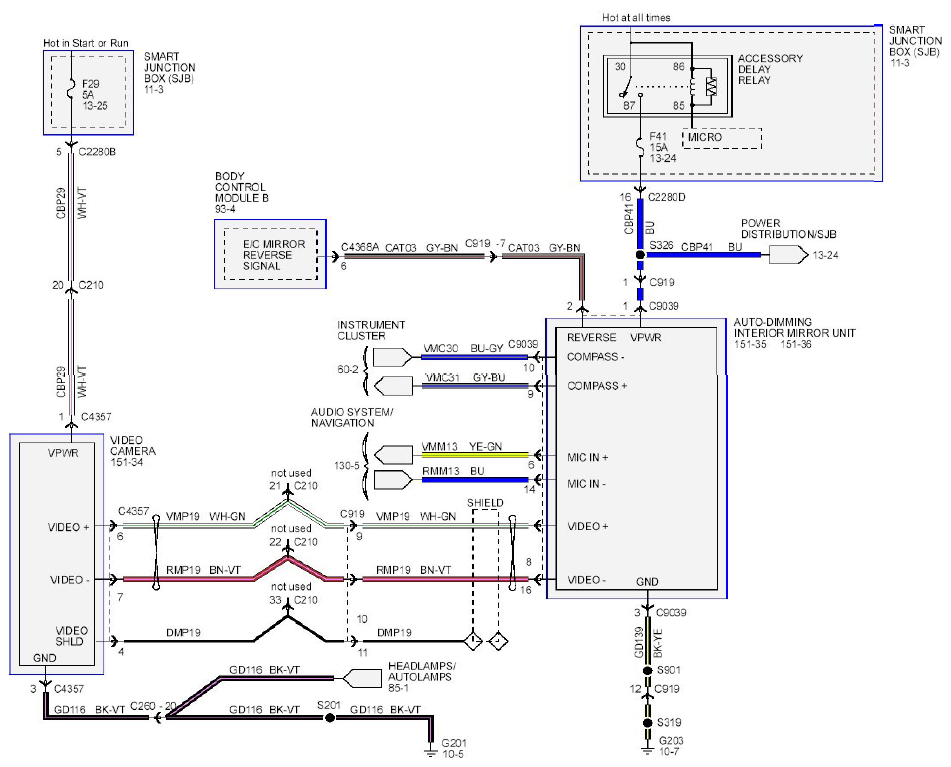

Fig 1: Power Mirrors - Wiring Diagram (Rear Video Camera Without Navigation)
Courtesy of FORD MOTOR CO.
