WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

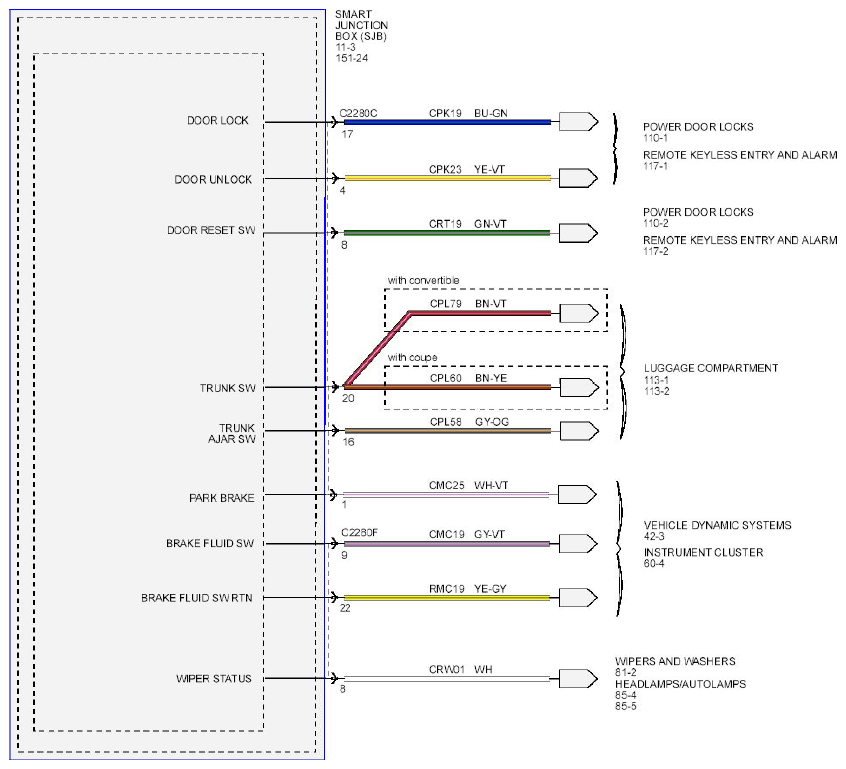

Fig 1: Power Distribution/SJB - Wiring Diagram (1 Of 6)
Courtesy of FORD MOTOR CO.

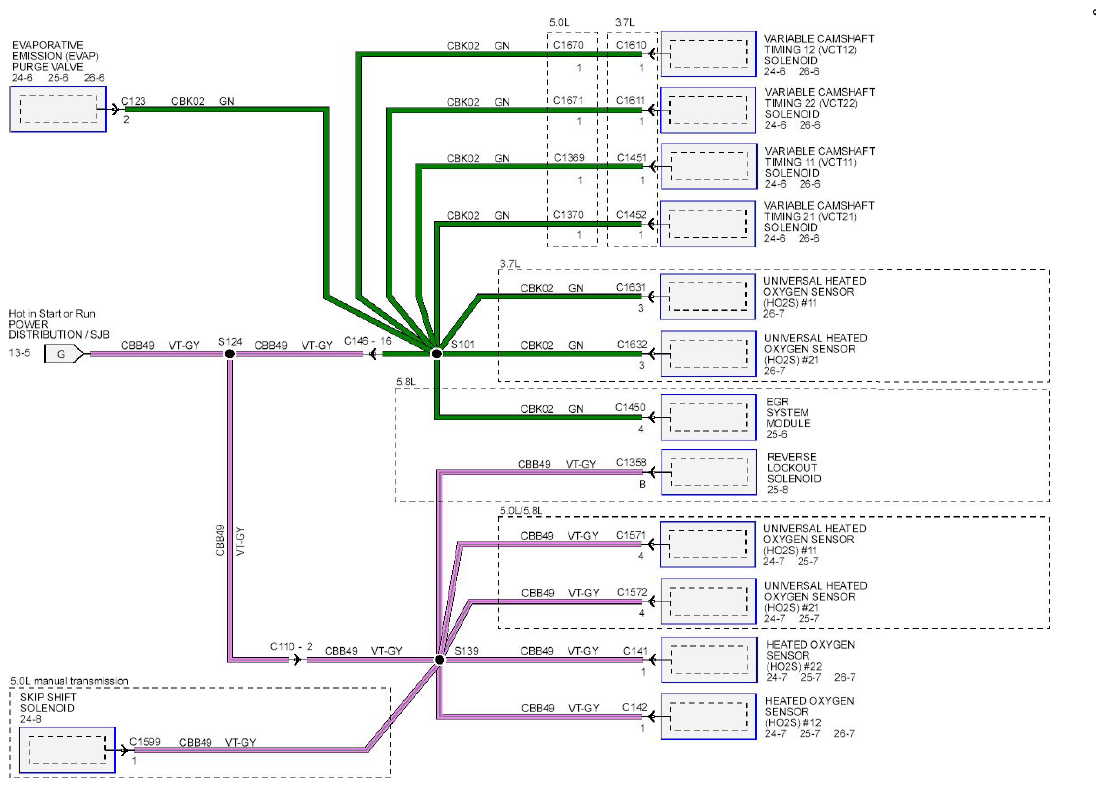

Fig 2: Power Distribution/SJB - Wiring Diagram (2 Of 6)
Courtesy of FORD MOTOR CO.

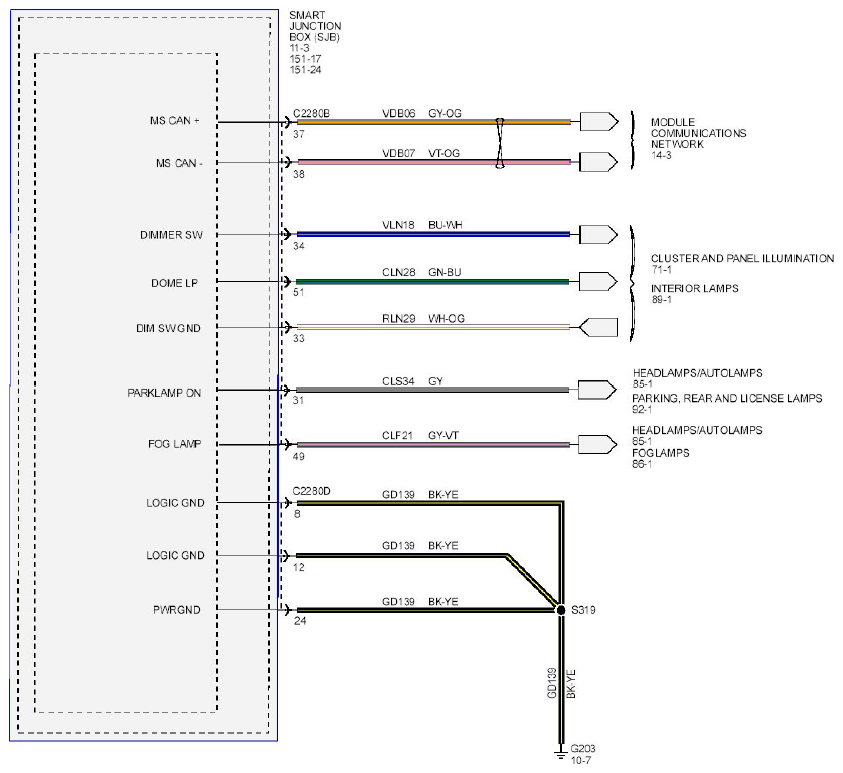

Fig 3: Power Distribution/SJB - Wiring Diagram (3 Of 6)
Courtesy of FORD MOTOR CO.

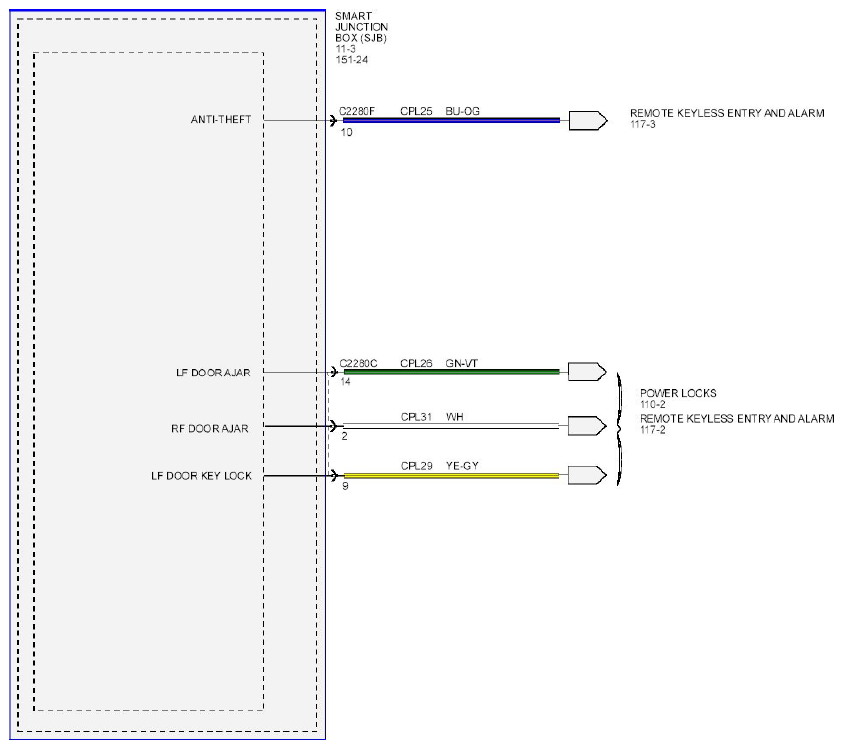

Fig 4: Power Distribution/SJB - Wiring Diagram (4 Of 6)
Courtesy of FORD MOTOR CO.

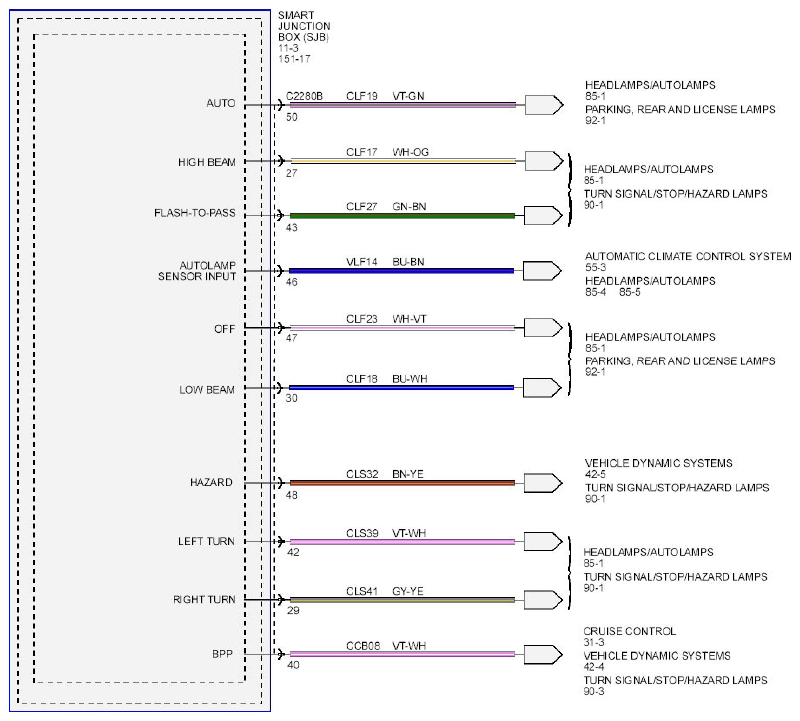

Fig 5: Power Distribution/SJB - Wiring Diagram (5 Of 6)
Courtesy of FORD MOTOR CO.

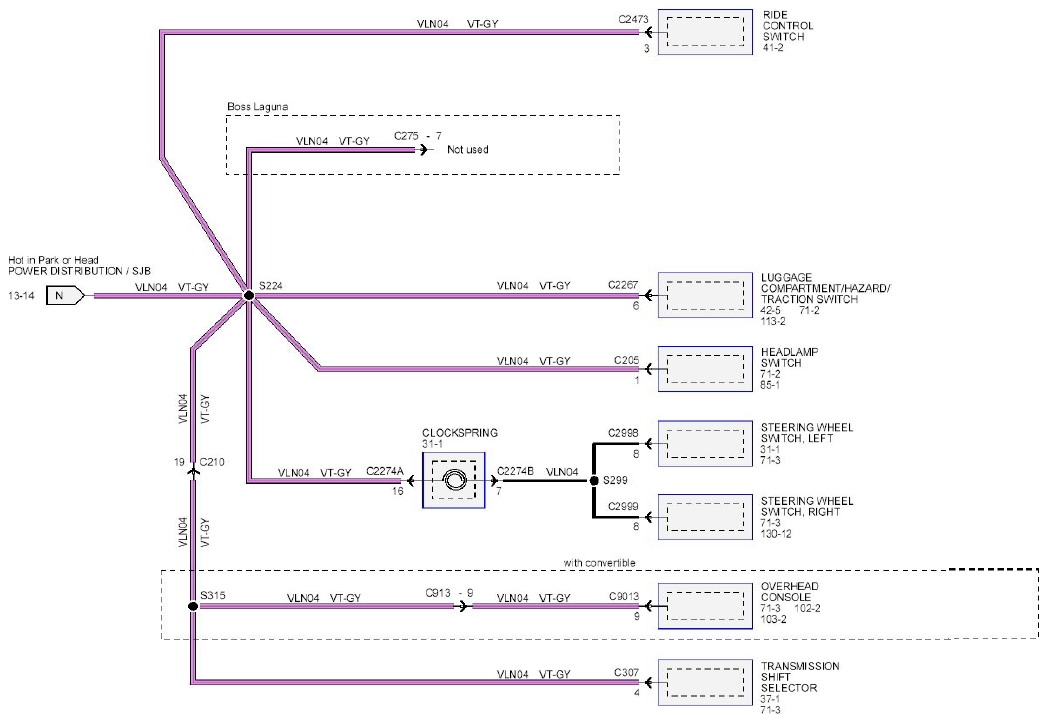

Fig 6: Power Distribution/SJB - Wiring Diagram (6 Of 6)
