Mega, F1, F4, F5, F6, F17, F21

WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

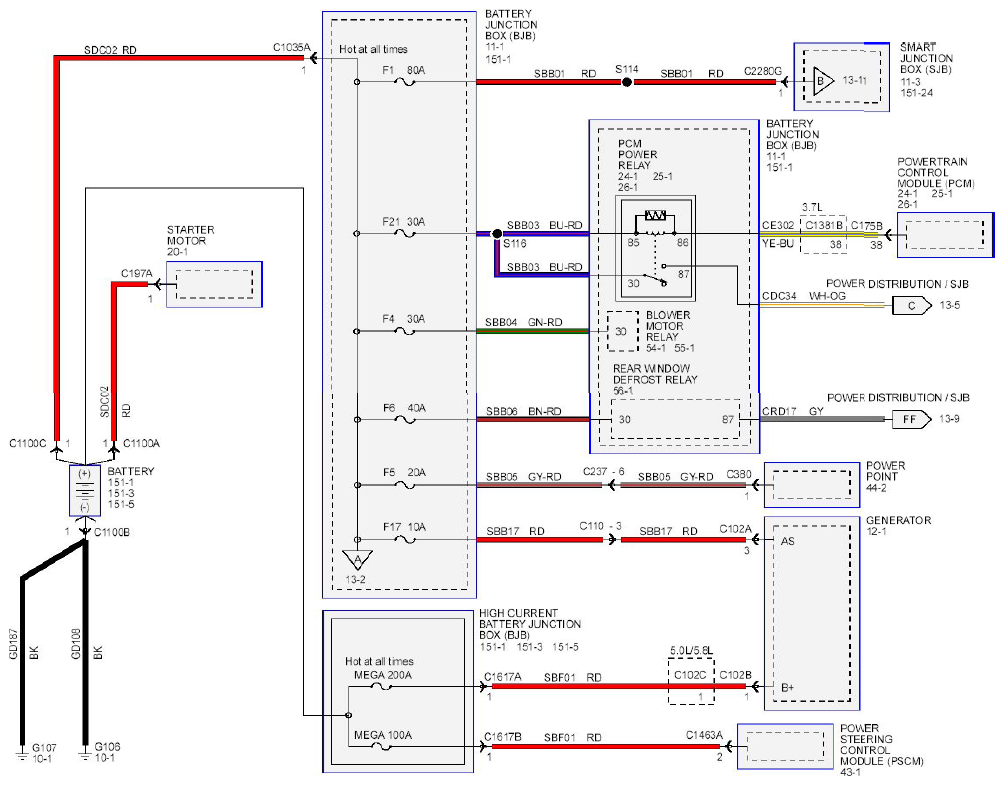

Fig 1: Power Distribution/SJB - Wiring Diagram (MEGA, F1, F4, F5, F6, F17 And F21)
G09092016Courtesy of FORD MOTOR CO.
