F27, F28

WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

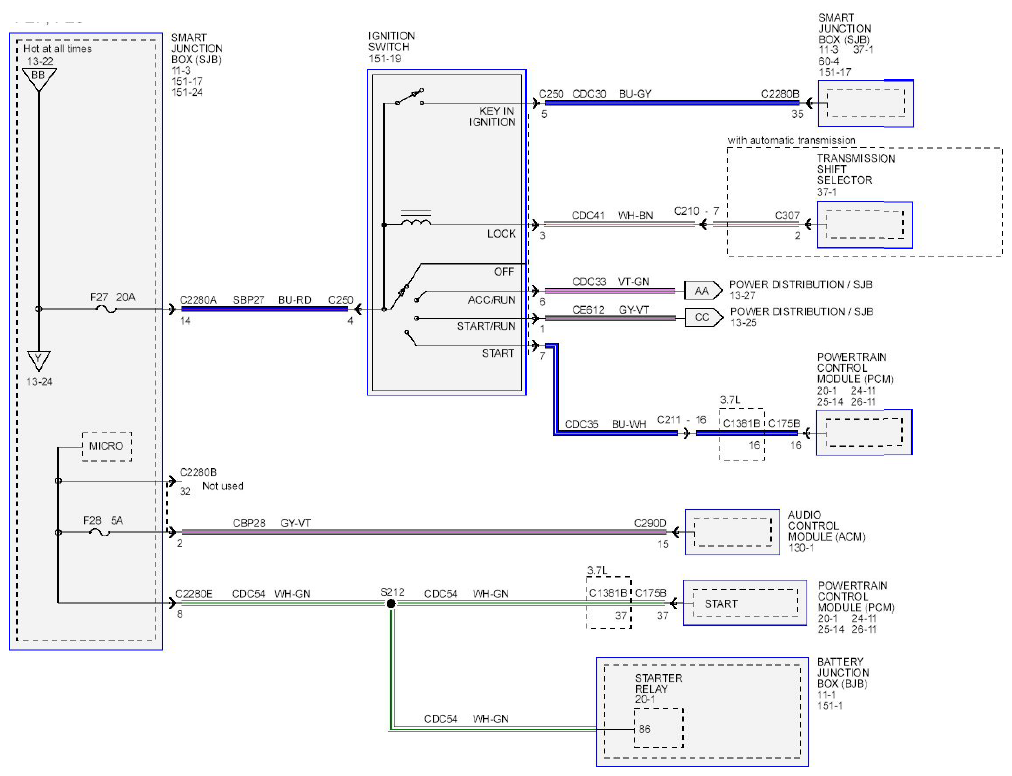

Fig 1: Power Distribution/SJB - Wiring Diagram (F27 And F28)
G09092038Courtesy of FORD MOTOR CO.
