F13, F14, F15, F16

WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

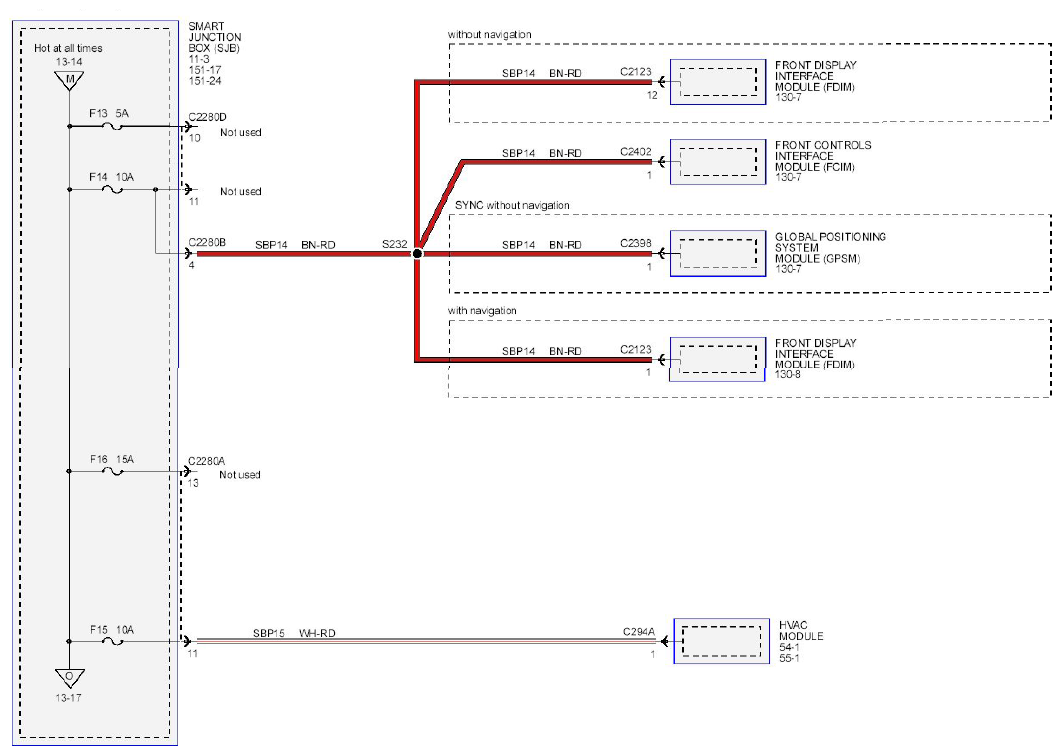

Fig 1: Power Distribution/SJB - Wiring Diagram (F13, F14, F15 And F16)
G09092031Courtesy of FORD MOTOR CO.
