F12, F29, F31, F32, F33, F34, F35

WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

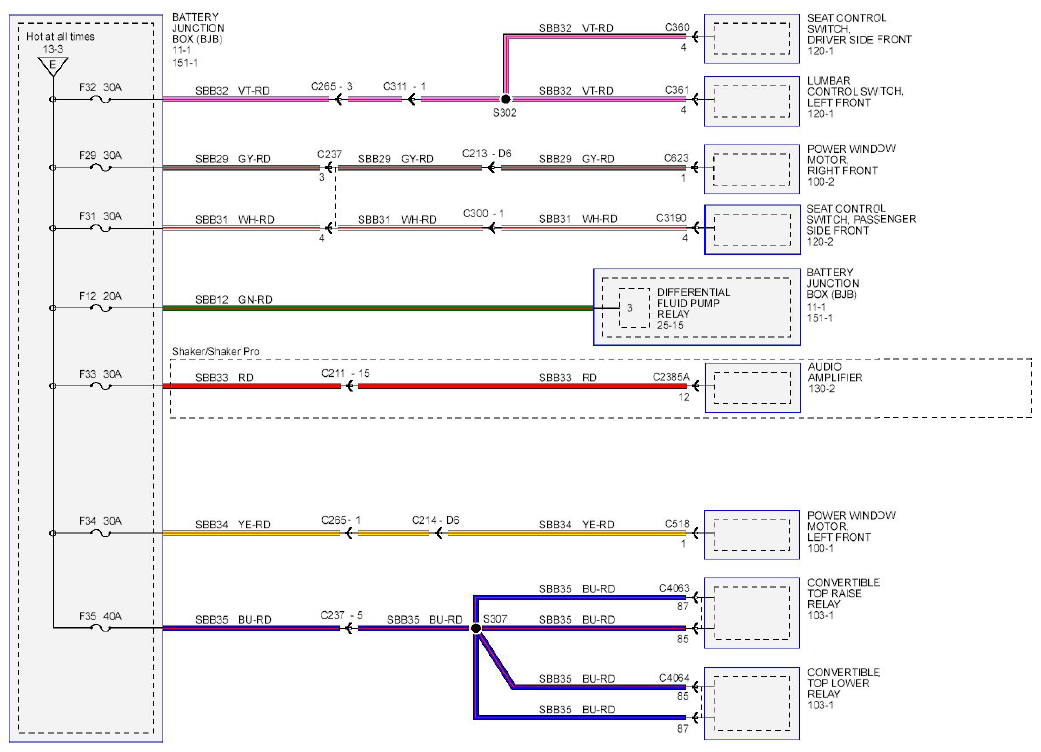

Fig 1: Power Distribution/SJB - Wiring Diagram (F12, F29, F31, F32, F33, F34 And F35)
G09092019Courtesy of FORD MOTOR CO.
