F10, F11, F12

WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

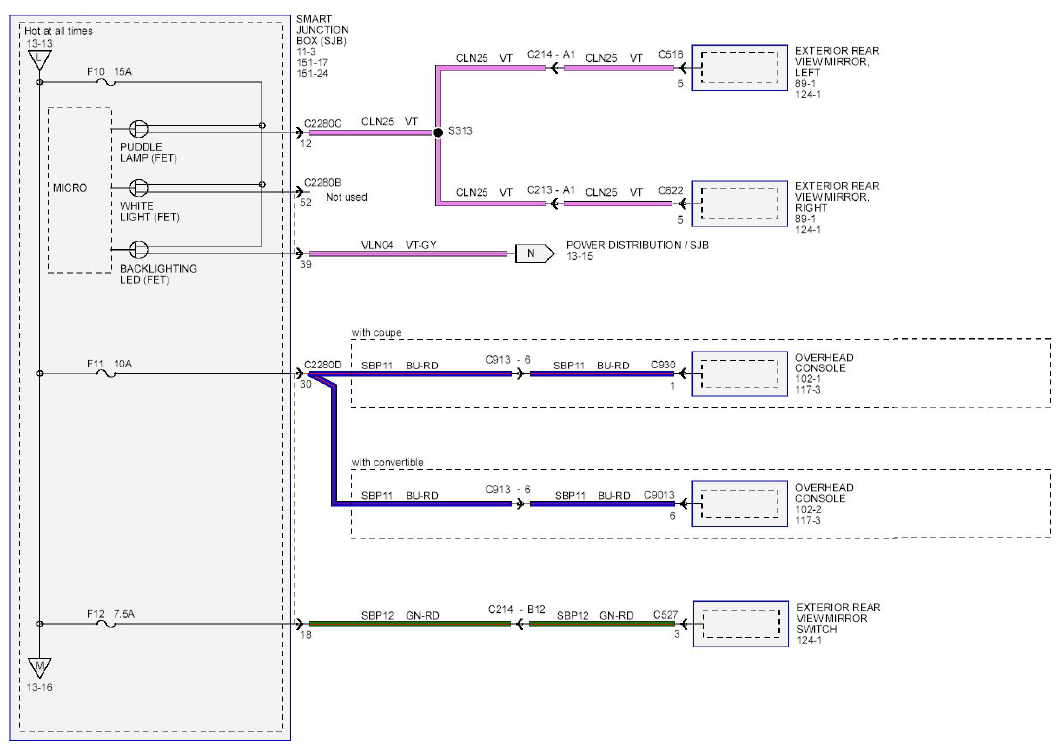

Fig 1: Power Distribution/SJB - Wiring Diagram (F10, F11 And F12)
G09092029Courtesy of FORD MOTOR CO.
