F1, F2, F3, F4, F5

WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

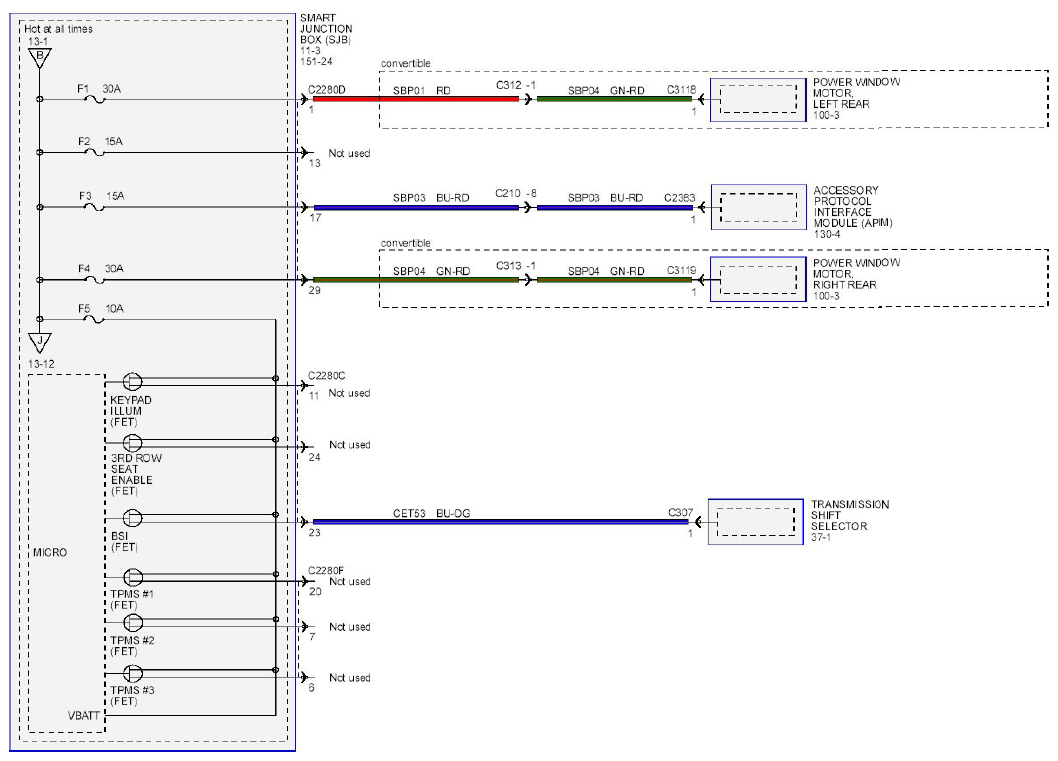

Fig 1: Power Distribution/SJB - Wiring Diagram (F1, F2, F3, F4 And F5)
G09092026Courtesy of FORD MOTOR CO.
