Power Distribution/SJB: 5.0L/5.8L

WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

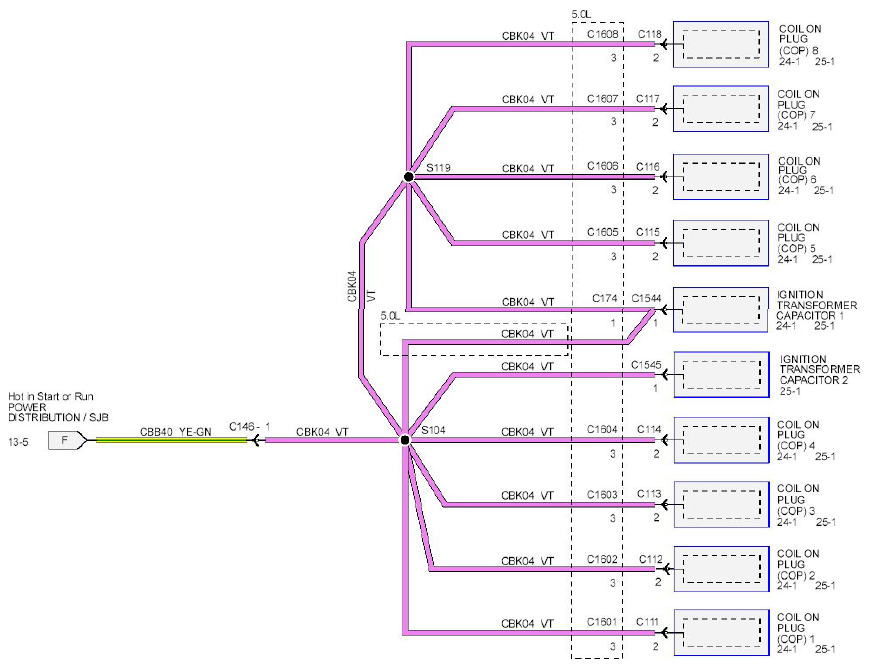

Fig 1: Power Distribution/SJB - Wiring Diagram (5.0L/5.8L)
G09092022Courtesy of FORD MOTOR CO.
