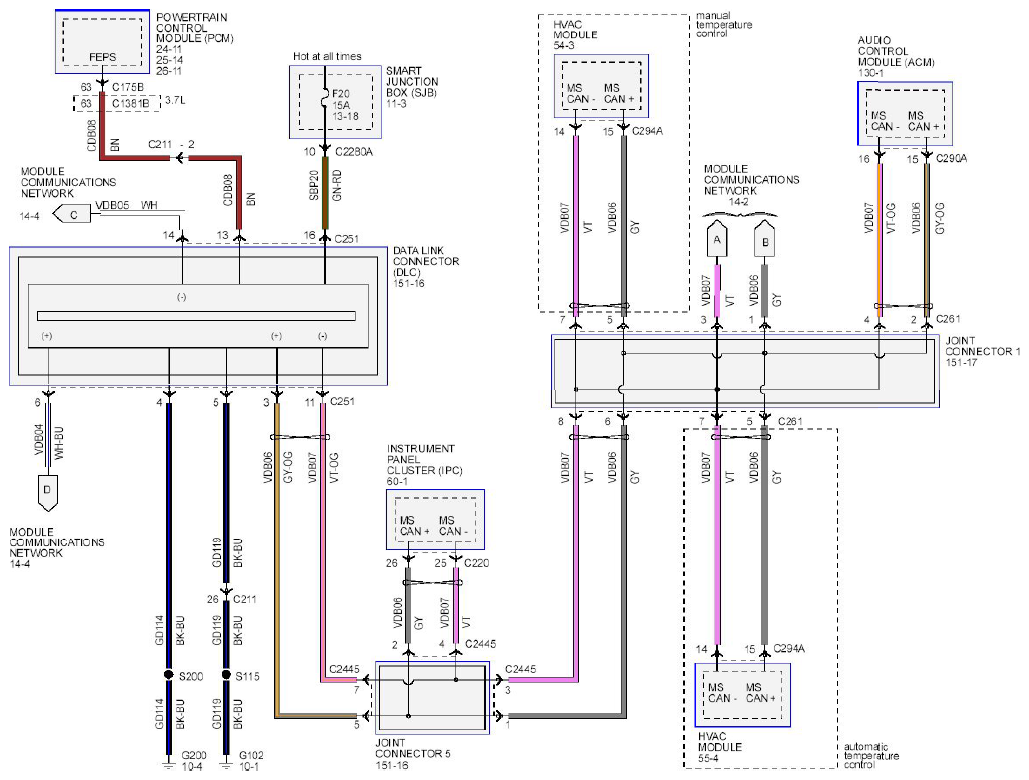

Fig 1: Module Communication Network - Wiring Diagram (1 Of 4)
Courtesy of FORD MOTOR CO.

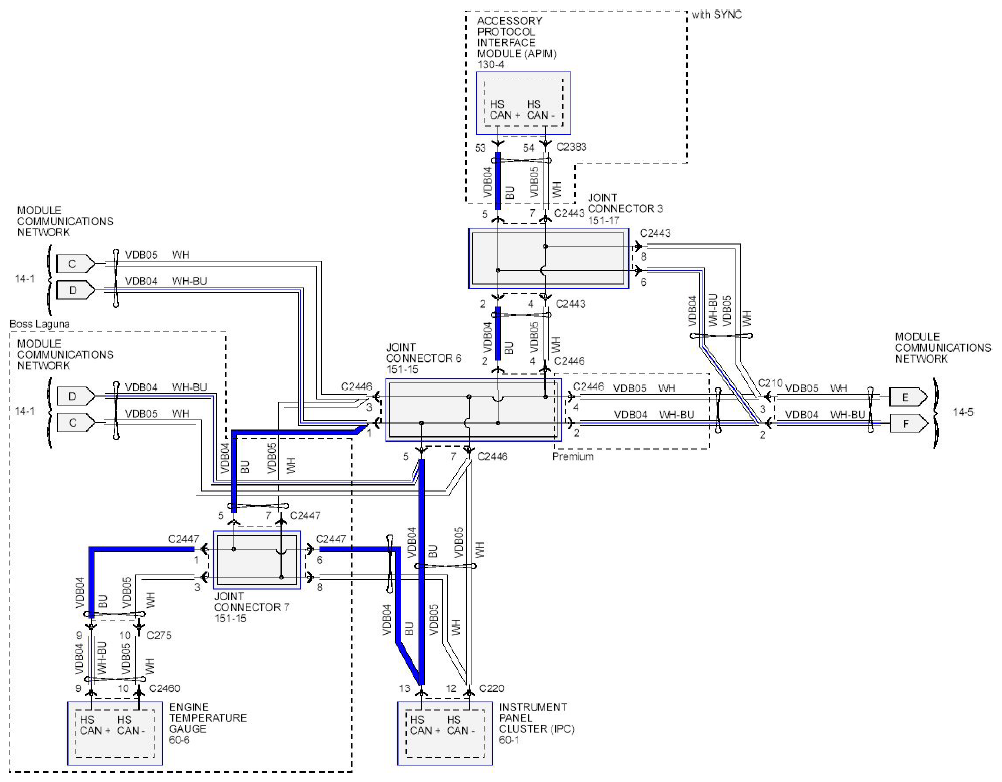

Fig 2: Module Communication Network - Wiring Diagram (2 Of 4)
Courtesy of FORD MOTOR CO.

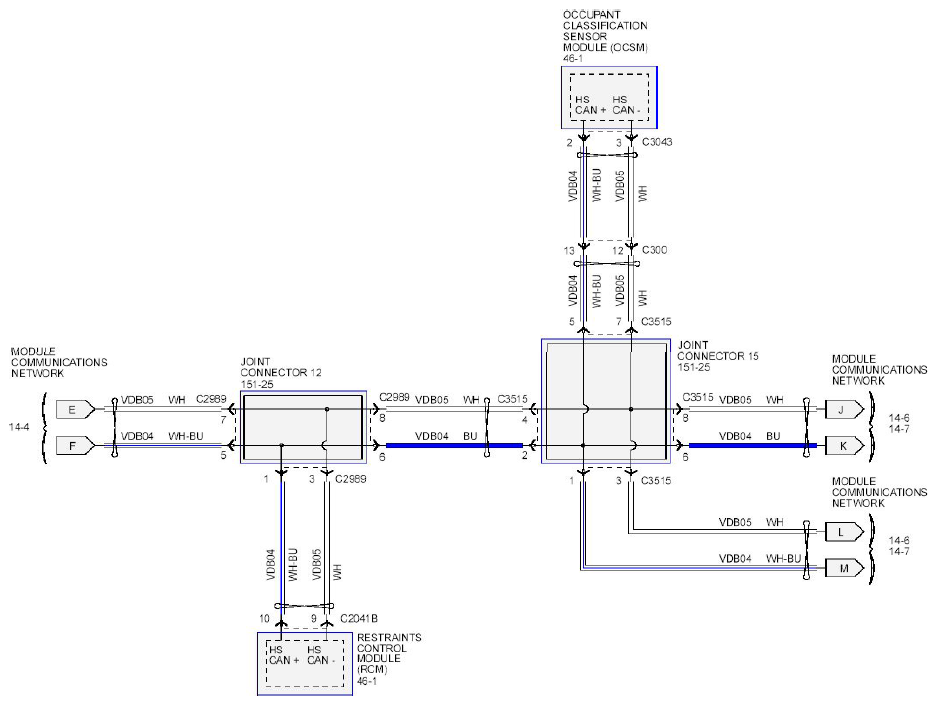

Fig 3: Module Communication Network - Wiring Diagram (3 Of 4)
Courtesy of FORD MOTOR CO.

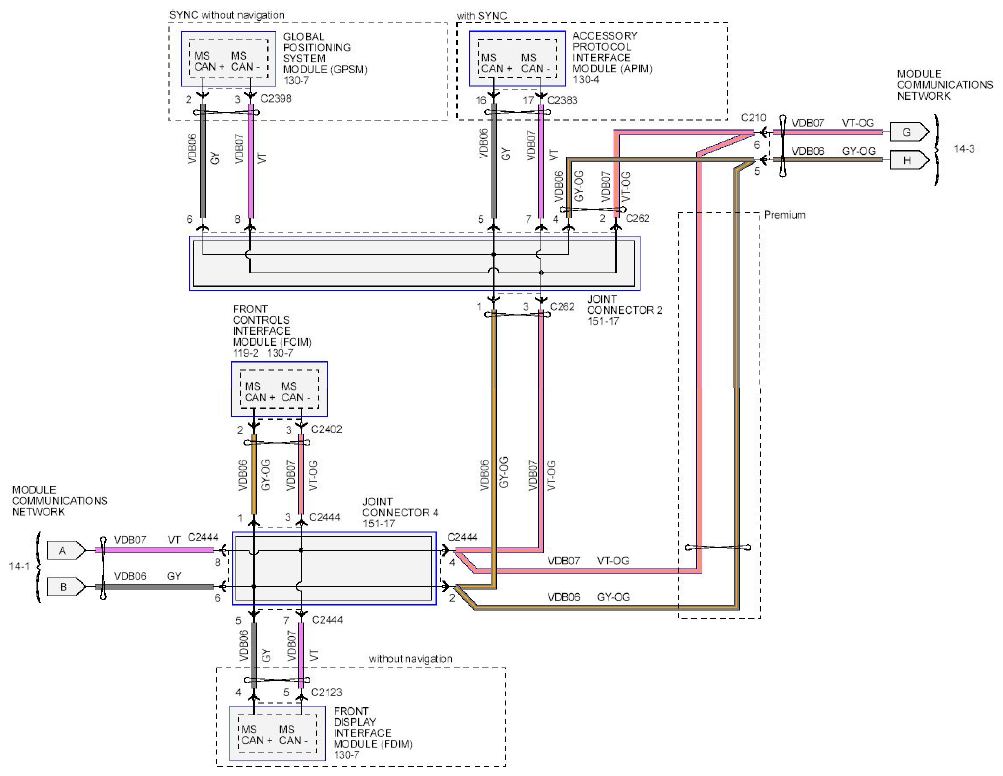

Fig 4: Module Communication Network - Wiring Diagram (4 Of 4)
