With Hid

WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

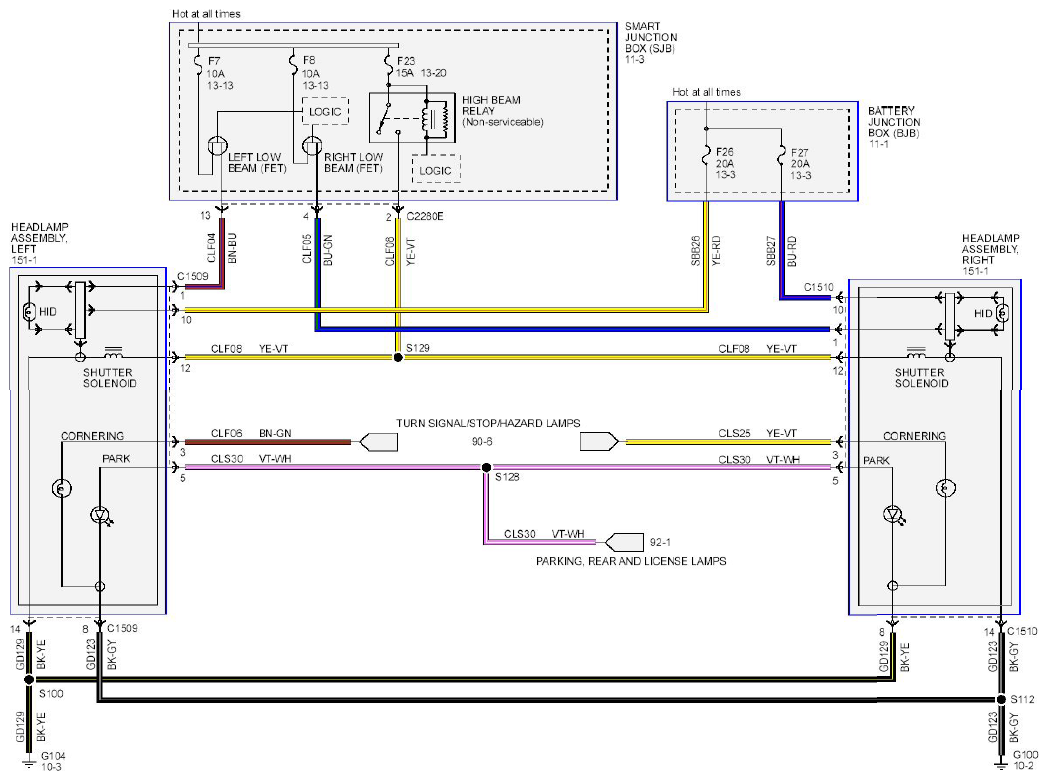

Fig 1: Headlamps/Autolamps - Wiring Diagram (With HID)
G09092141Courtesy of FORD MOTOR CO.
