Electronic Engine Controls - 3.7L

WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

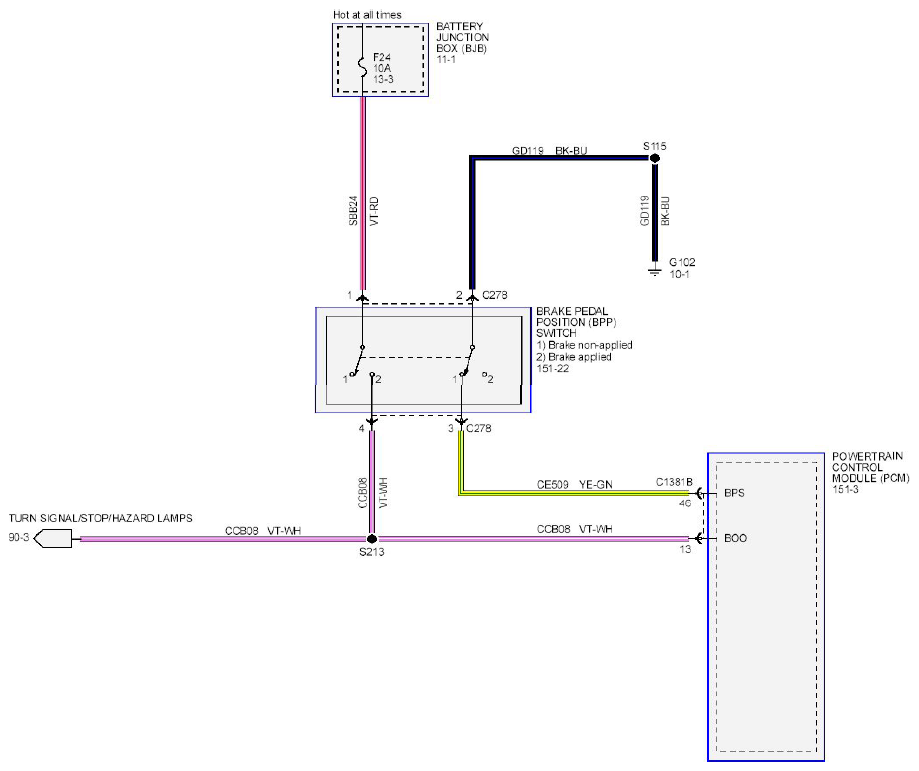

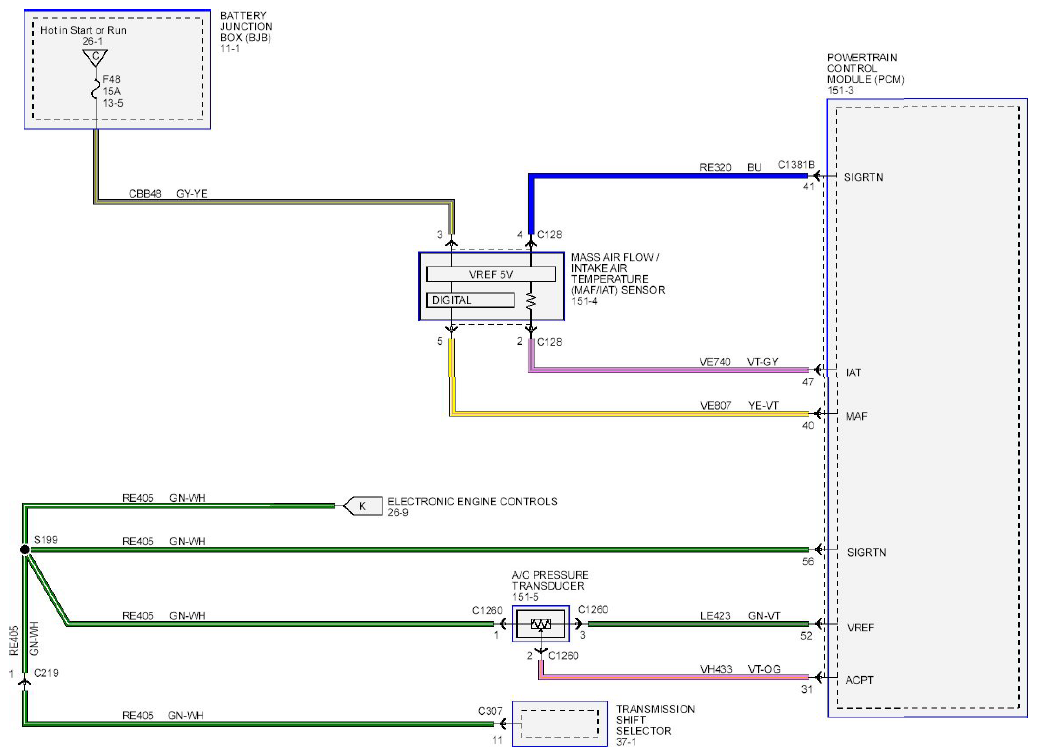

Fig 1: Electronic Engine Controls - Wiring Diagram (3.7L; 1 Of 11)

Courtesy of FORD MOTOR CO.

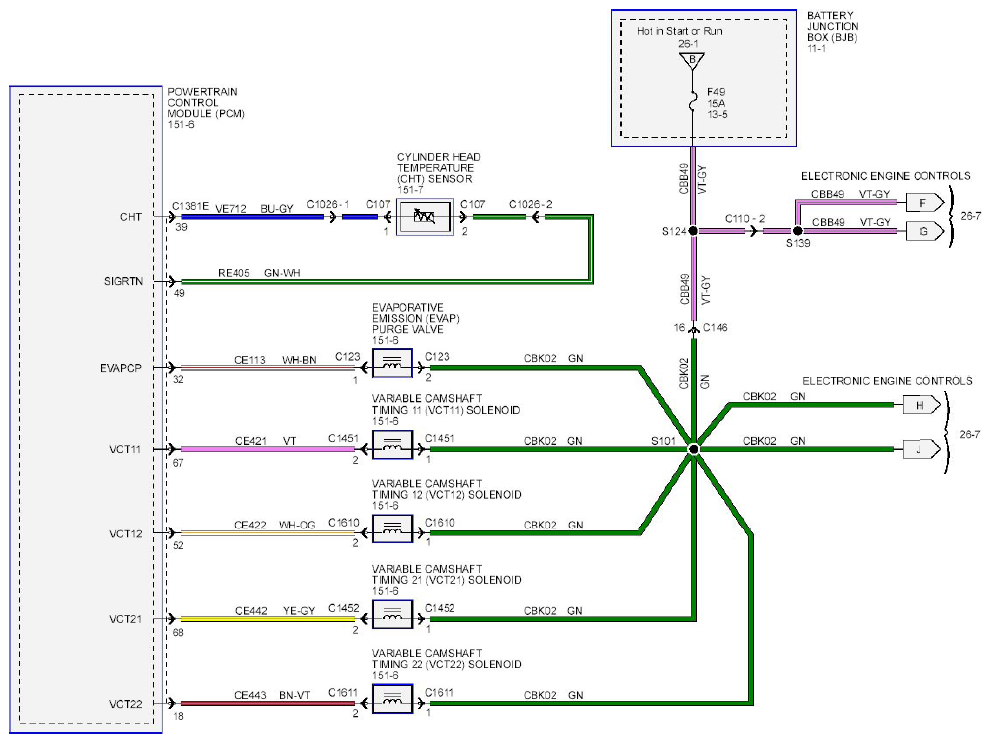

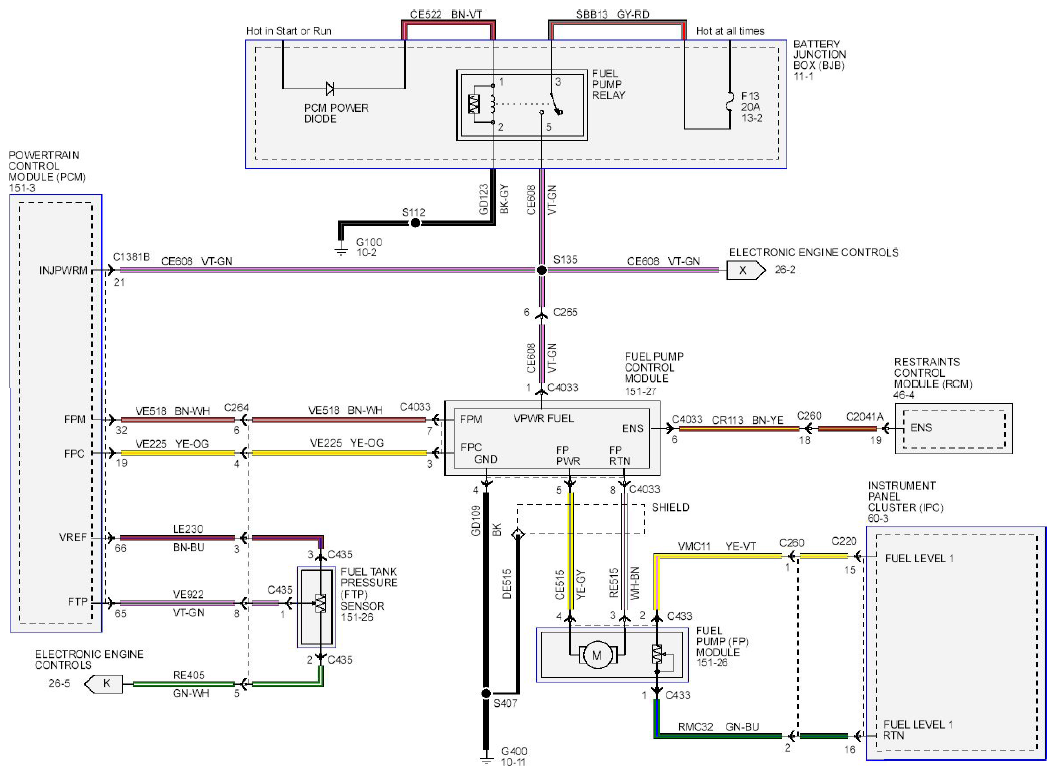

Fig 2: Electronic Engine Controls - Wiring Diagram (3.7L; 2 Of 11)

Courtesy of FORD MOTOR CO.

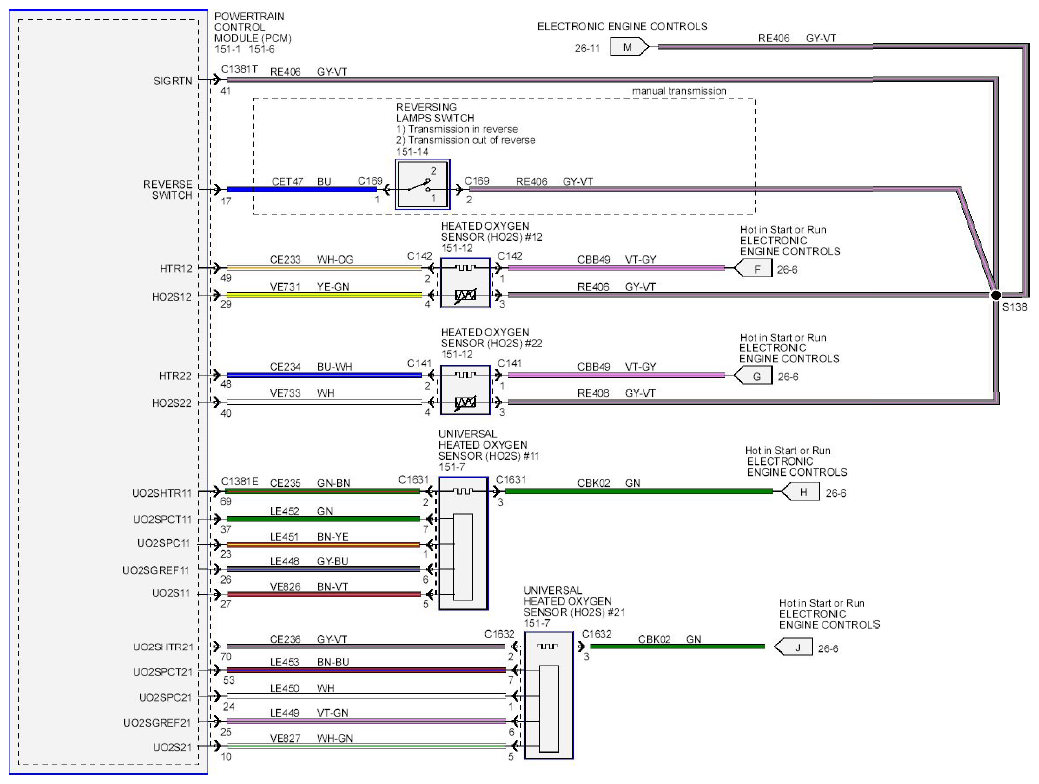

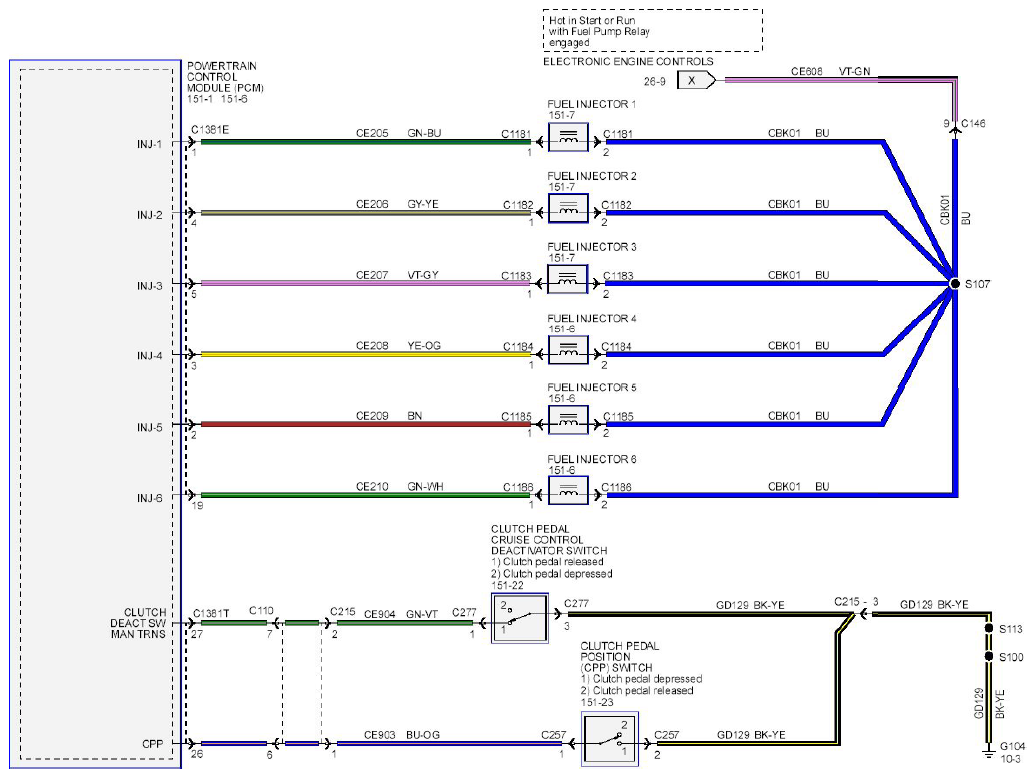

Fig 3: Electronic Engine Controls - Wiring Diagram (3.7L; 3 Of 11)

Courtesy of FORD MOTOR CO.

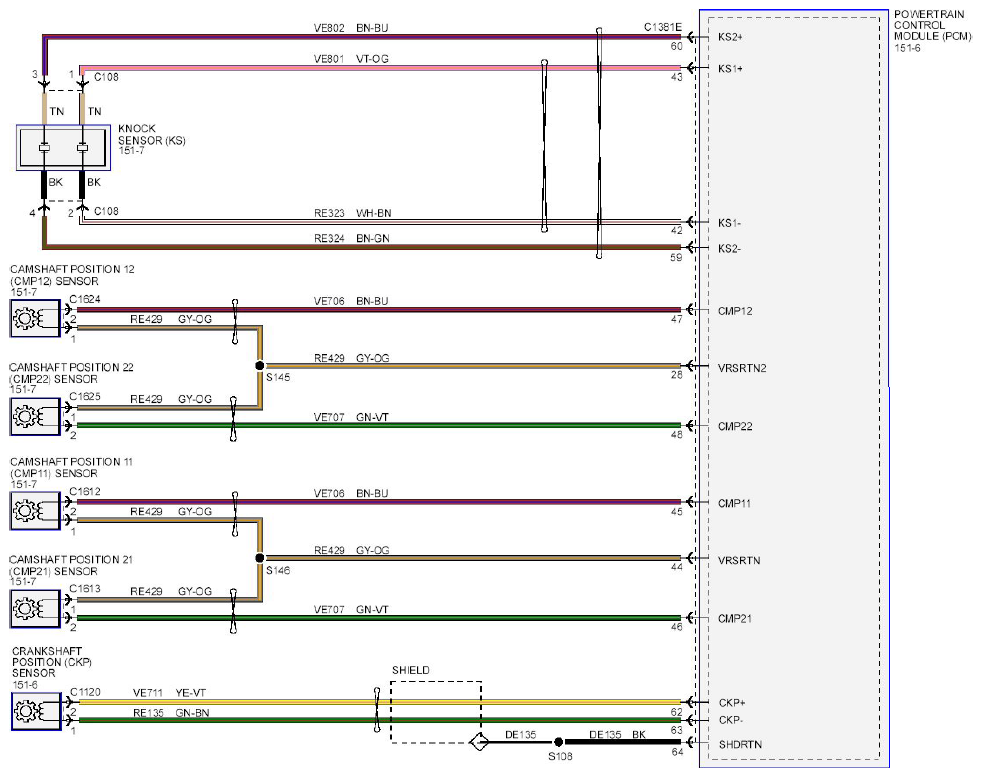

Fig 4: Electronic Engine Controls - Wiring Diagram (3.7L; 4 Of 11)

Courtesy of FORD MOTOR CO.

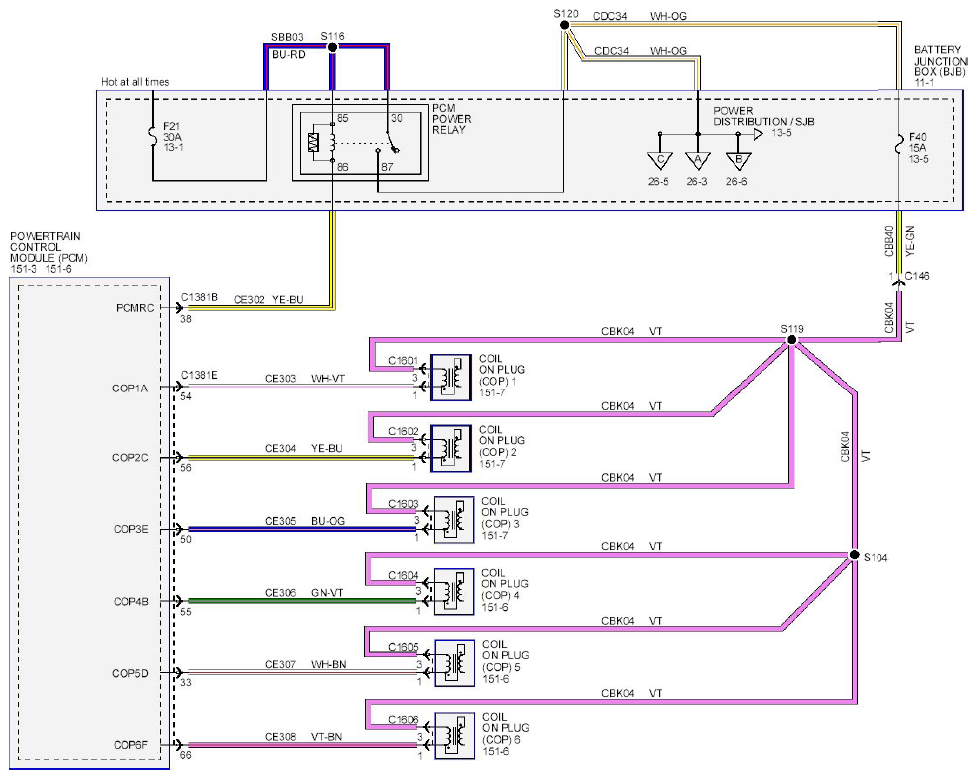

Fig 5: Electronic Engine Controls - Wiring Diagram (3.7L; 5 Of 11)

Courtesy of FORD MOTOR CO.

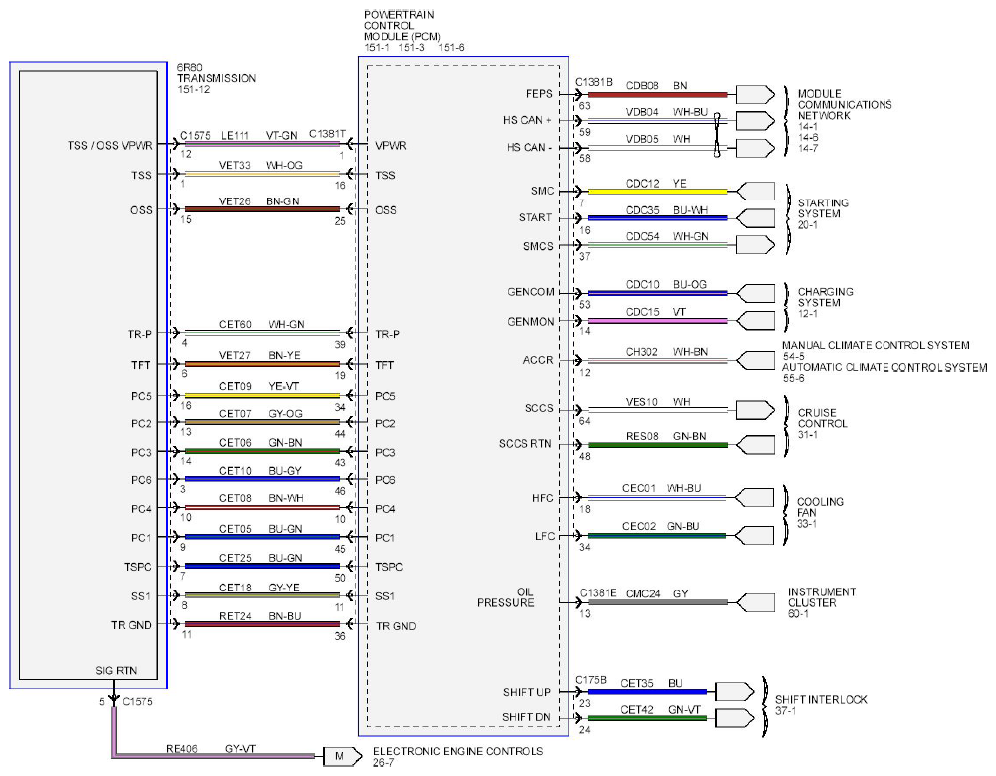

Fig 6: Electronic Engine Controls - Wiring Diagram (3.7L; 6 Of 11)

Courtesy of FORD MOTOR CO.

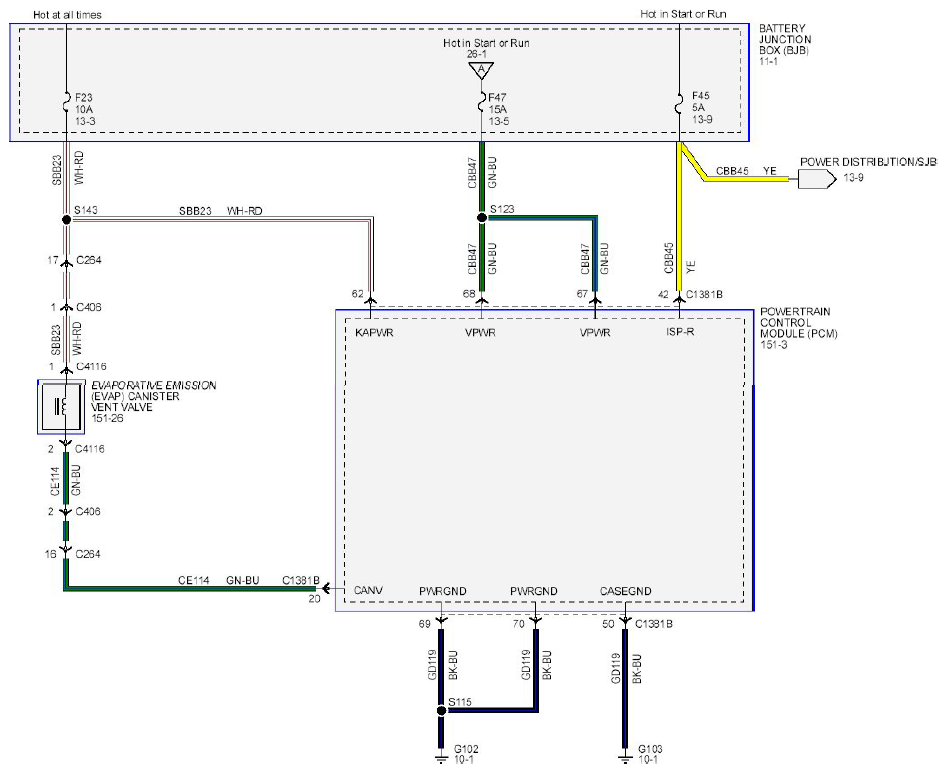

Fig 7: Electronic Engine Controls - Wiring Diagram (3.7L; 7 Of 11)

Courtesy of FORD MOTOR CO.

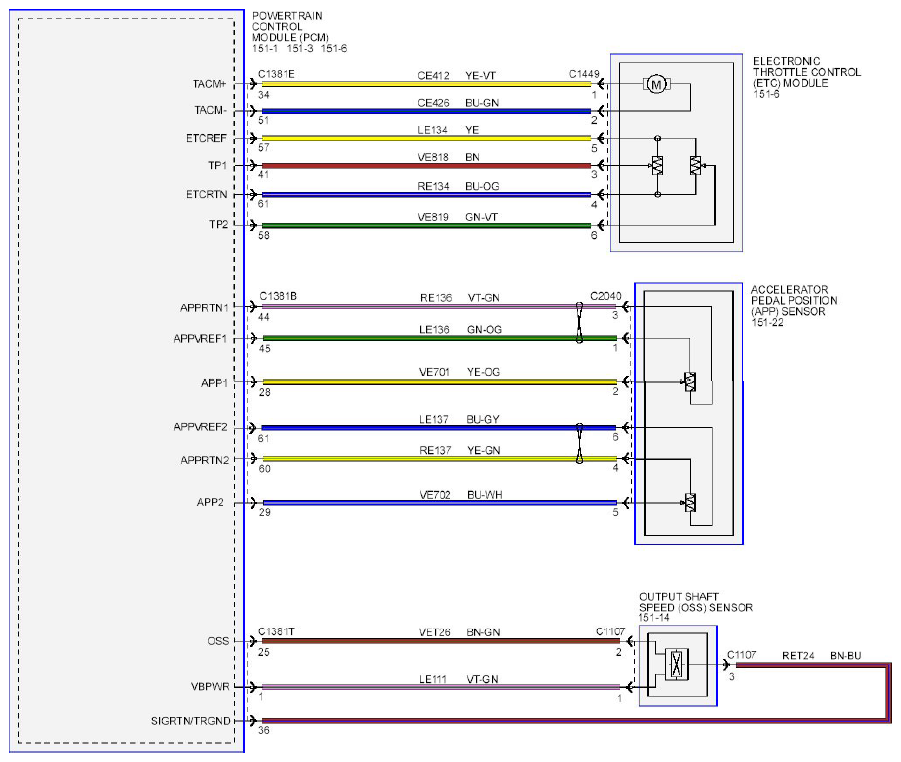

Fig 8: Electronic Engine Controls - Wiring Diagram (3.7L; 8 Of 11)

Courtesy of FORD MOTOR CO.

Fig 9: Electronic Engine Controls - Wiring Diagram (3.7L; 9 Of 11)

Courtesy of FORD MOTOR CO.

Fig 10: Electronic Engine Controls - Wiring Diagram (3.7L; 10 Of 11)

Courtesy of FORD MOTOR CO.

Fig 11: Electronic Engine Controls - Wiring Diagram (3.7L; 11 Of 11)

Courtesy of FORD MOTOR CO.
