With Redundant Audio Controls / Sync / Navigation

WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

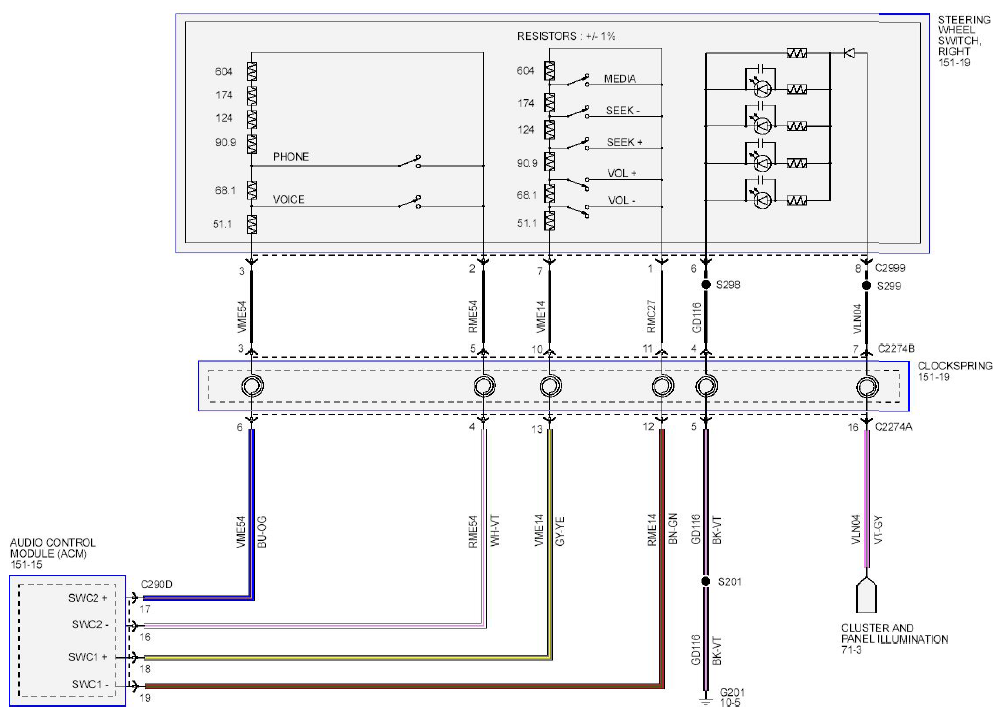

Fig 1: Audio System/Navigation - Wiring Diagram (With Redundant Audio Controls/Sync/Navigation)
G09092203Courtesy of FORD MOTOR CO.
