Audio System/Navigation: Sync

WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

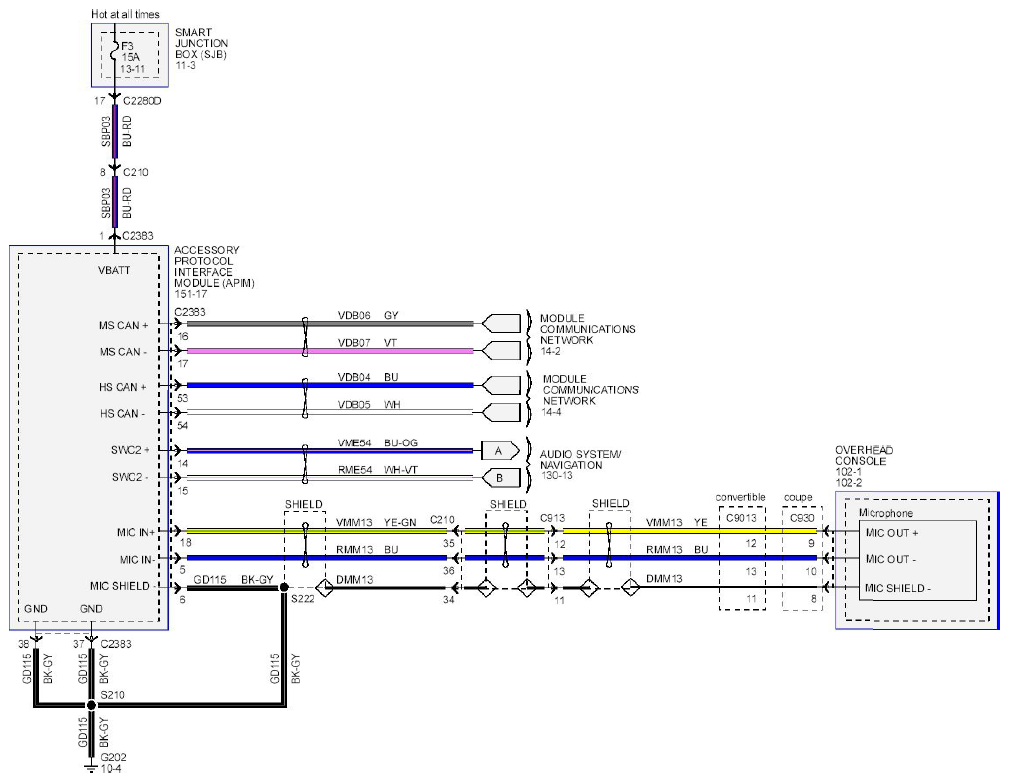

Fig 1: Audio System/Navigation - Wiring Diagram (SYNC; 1 Of 3)

Courtesy of FORD MOTOR CO.

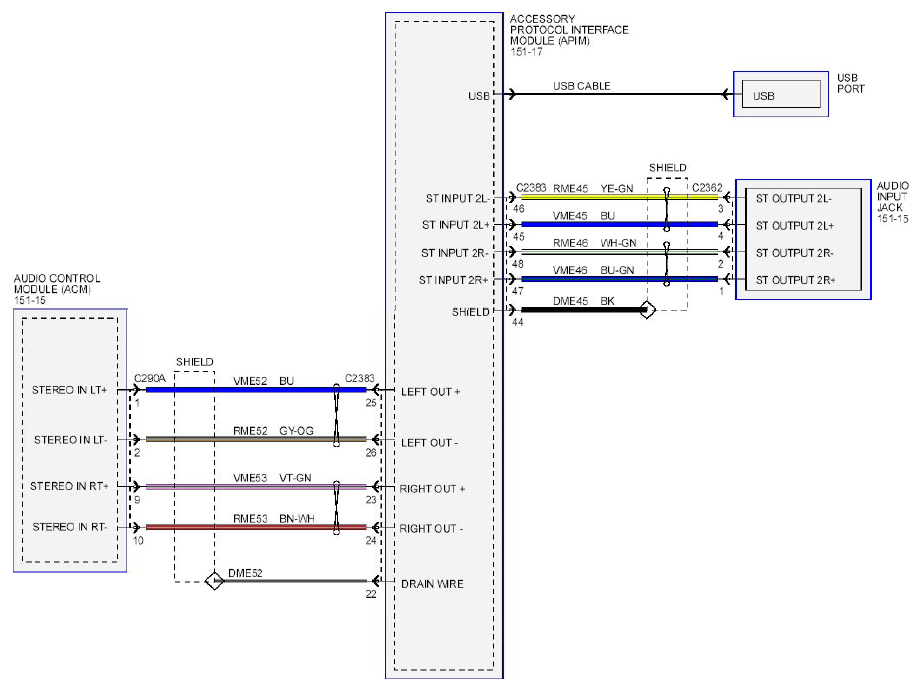

Fig 2: Audio System/Navigation - Wiring Diagram (SYNC; 2 Of 3)

Courtesy of FORD MOTOR CO.

Fig 3: Audio System/Navigation - Wiring Diagram (SYNC; 3 Of 3)

Courtesy of FORD MOTOR CO.
