Vehicle Identification Number (VIN) Location

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

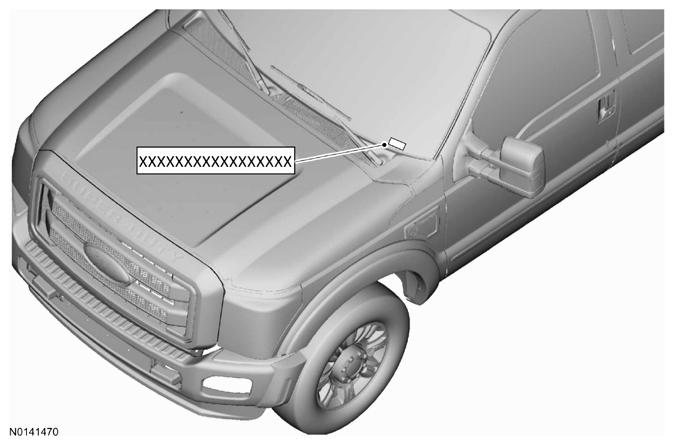

Fig 1: Identifying Vehicle Identification Number (VIN) Location
G08600282Courtesy of FORD MOTOR CO.

The Vehicle Identification Number (VIN) is a 17-digit combination of letters and numbers. The VIN is stamped on a metal tab riveted to the instrument panel, top upper left of the dash. The VIN is also found on the Vehicle Certification (VC) label. If the VIN plate requires replacement, an authorized dealer must contact their respective regional office.

Fig 2: Identifying Combination Of Letters And Numbers
G08600283Courtesy of FORD MOTOR CO.
Item Description
1 World Manufacturer Identifier (WMI)
2 Restraint type and Gross Vehicle Weight Rating (GVWR) code
3 Vehicle line, series and body-type code
4 Engine-type code
5 Government-assigned, computer-generated check digit
6 Model year code
7 Assembly plant code
8 Production sequence number
