Vehicle Dynamic Systems

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

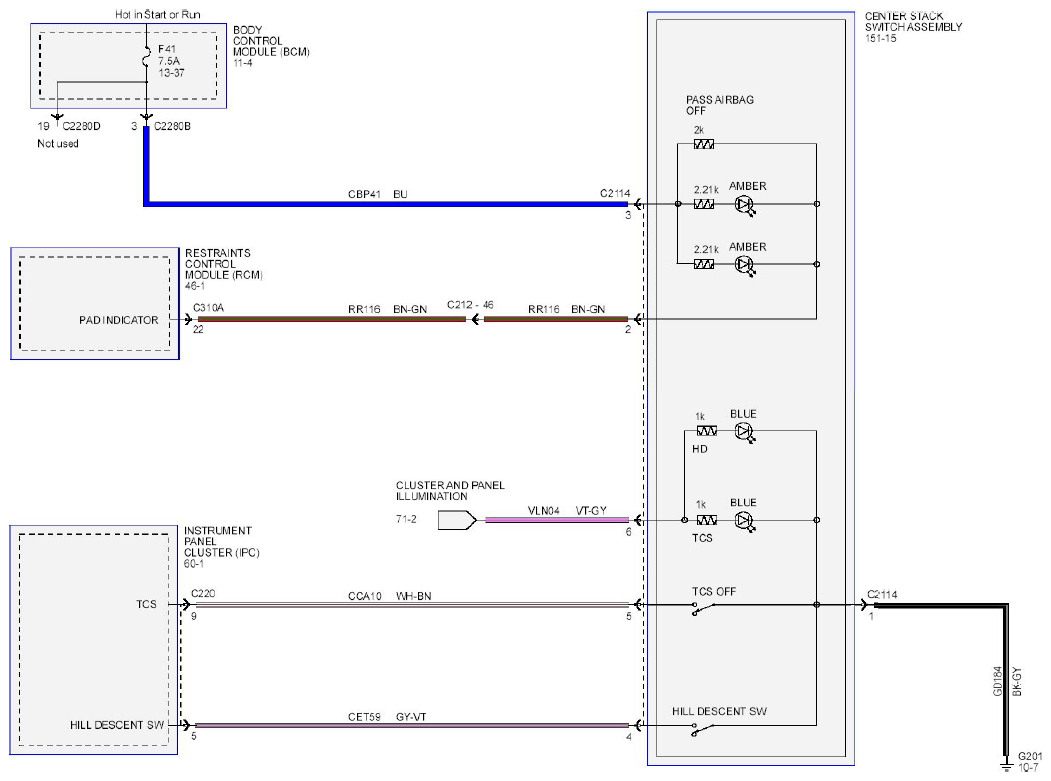

Fig 1: Vehicle Dynamic Systems - Circuit Diagram (1 Of 6)

Courtesy of FORD MOTOR CO.

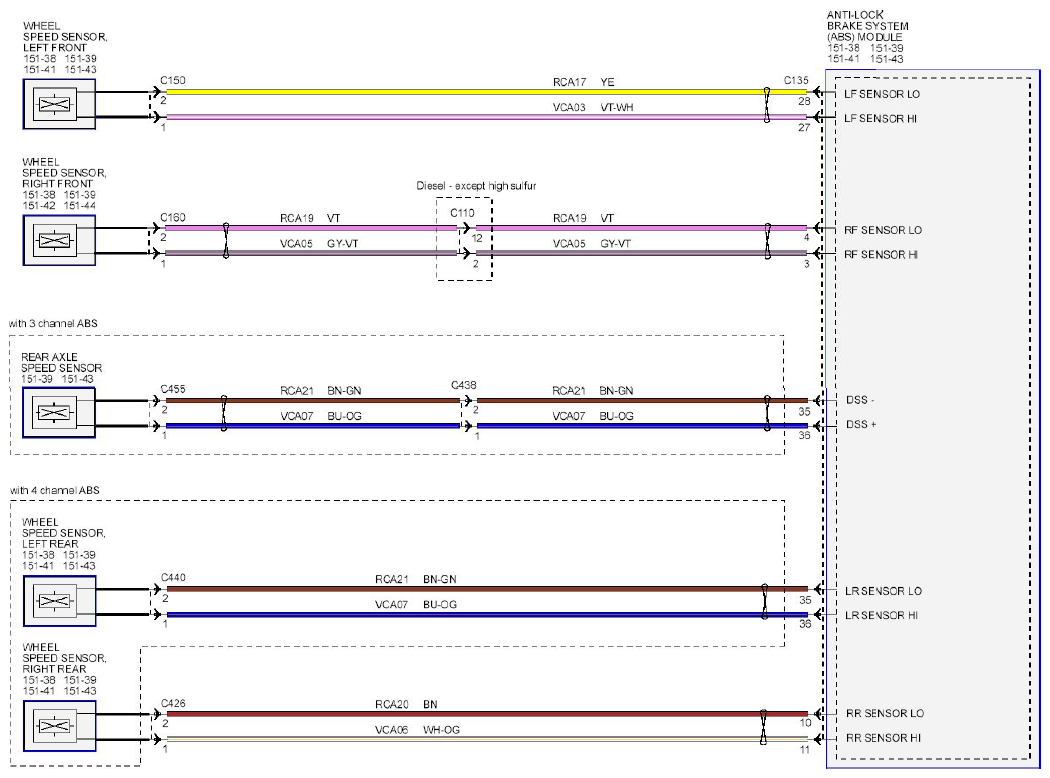

Fig 2: Vehicle Dynamic Systems - Circuit Diagram (2 Of 6)

Courtesy of FORD MOTOR CO.

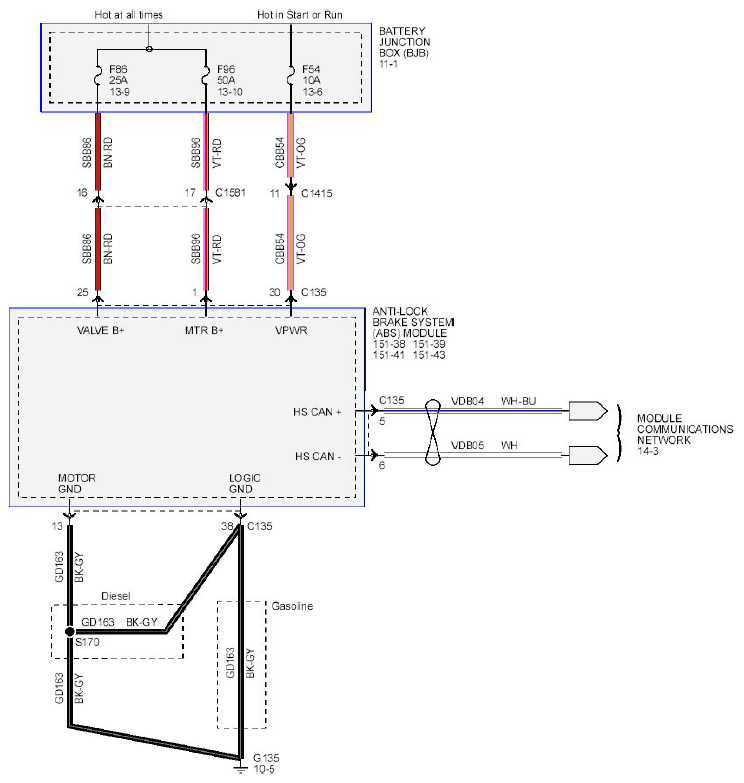

Fig 3: Vehicle Dynamic Systems - Circuit Diagram (3 Of 6)

Courtesy of FORD MOTOR CO.

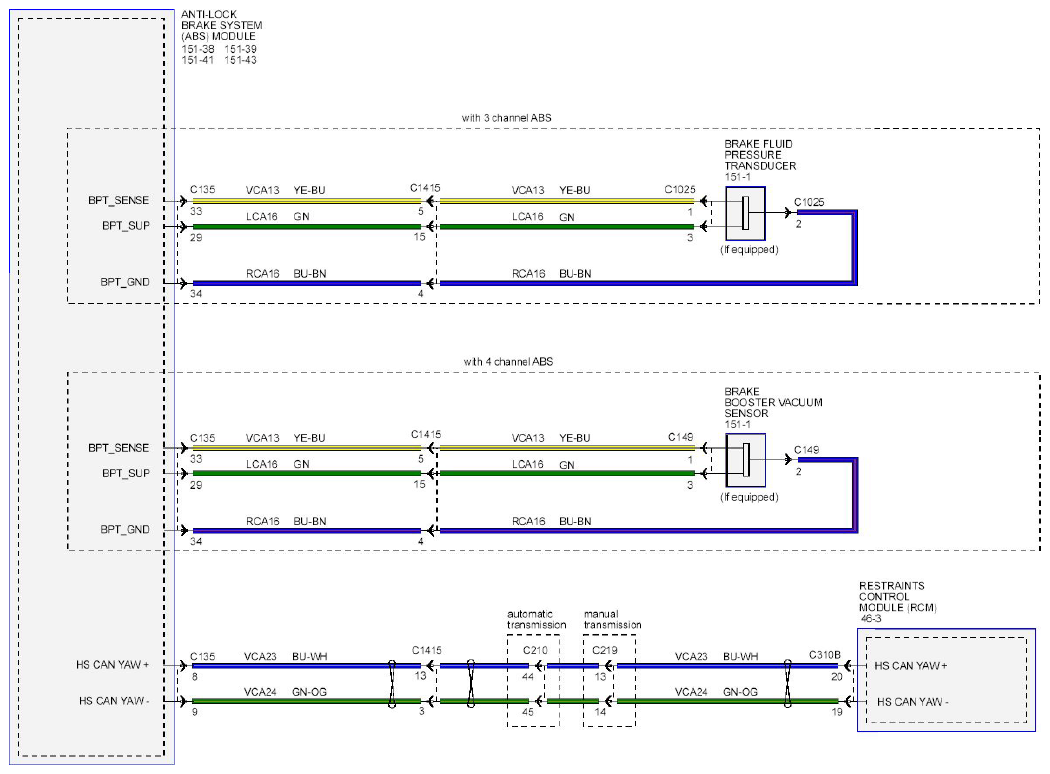

Fig 4: Vehicle Dynamic Systems - Circuit Diagram (4 Of 6)

Courtesy of FORD MOTOR CO.

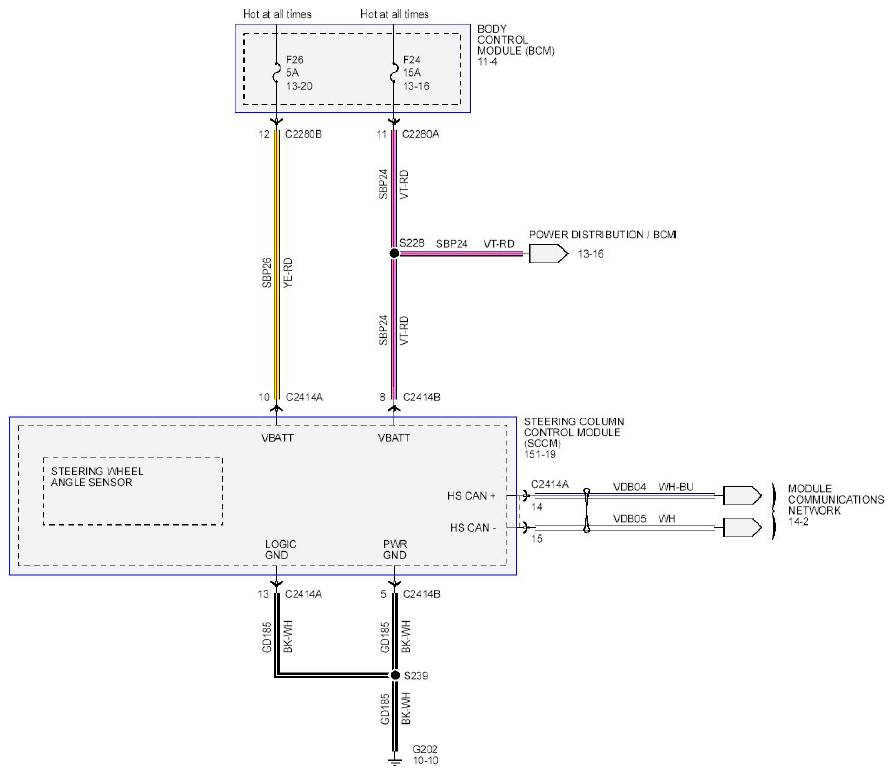

Fig 5: Vehicle Dynamic Systems - Circuit Diagram (5 Of 6)

Courtesy of FORD MOTOR CO.

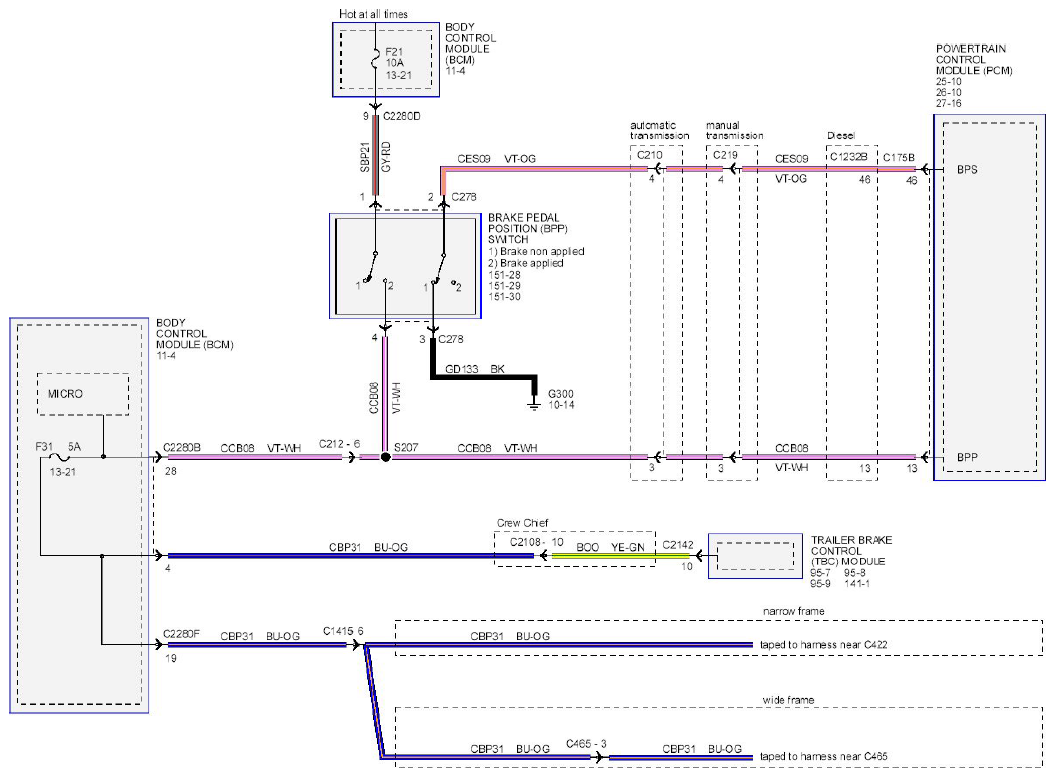

Fig 6: Vehicle Dynamic Systems - Circuit Diagram (6 Of 6)

Courtesy of FORD MOTOR CO.
