8-Inch Touchscreen SONY ® 8-Inch Touchscreen

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

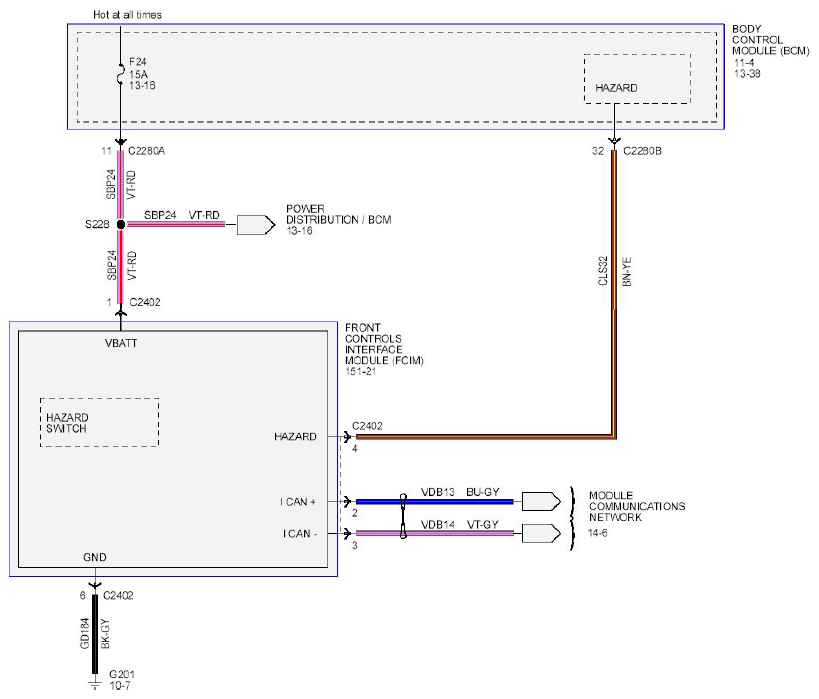

Fig 1: Turn Signal Stop Hazard Lamps - Circuit Diagram - 8-Inch Touchscreen Sony ® 8-Inch Touchscreen
G08743402Courtesy of FORD MOTOR CO.
