Starting System: Gasoline

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

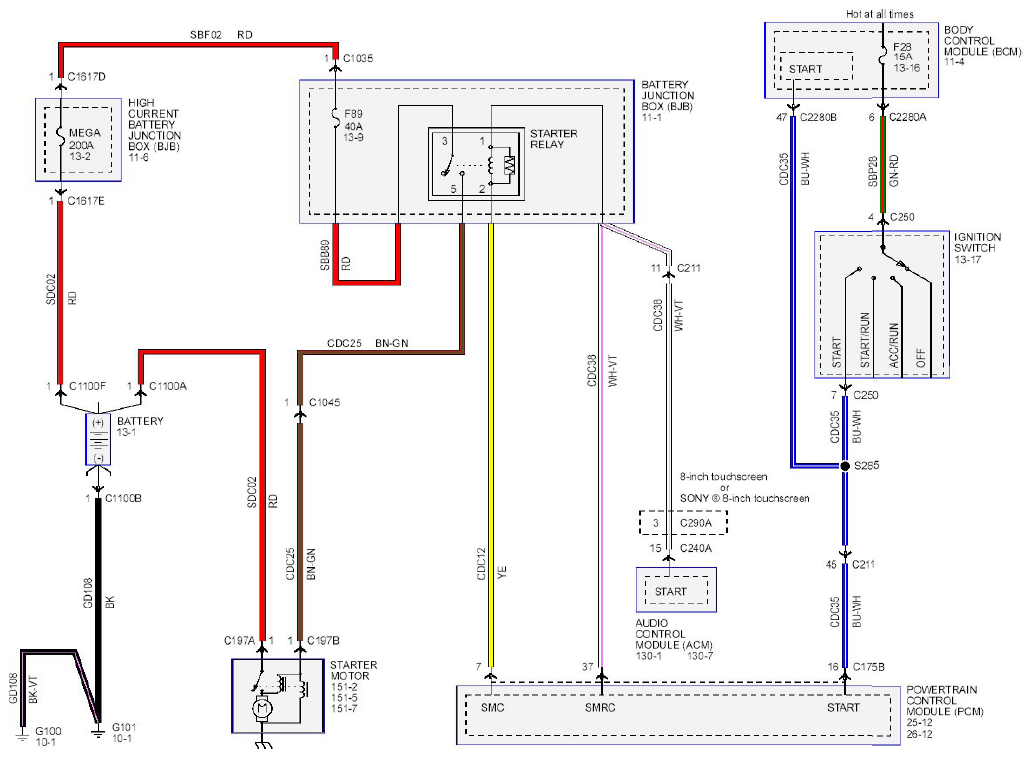

Fig 1: Starting System - Circuit Diagram (Gasoline)
G08743275Courtesy of FORD MOTOR CO.
