Power Distribution/BCM: Notes

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

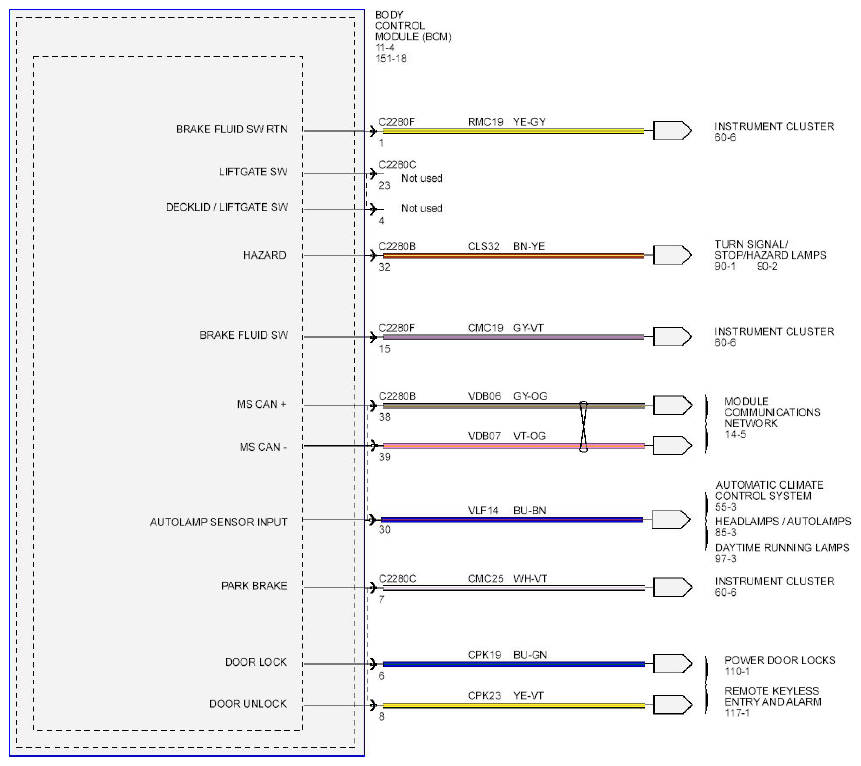

Fig 1: Power Distribution/BCM Circuit Diagram (1 Of 5)

Courtesy of FORD MOTOR CO.

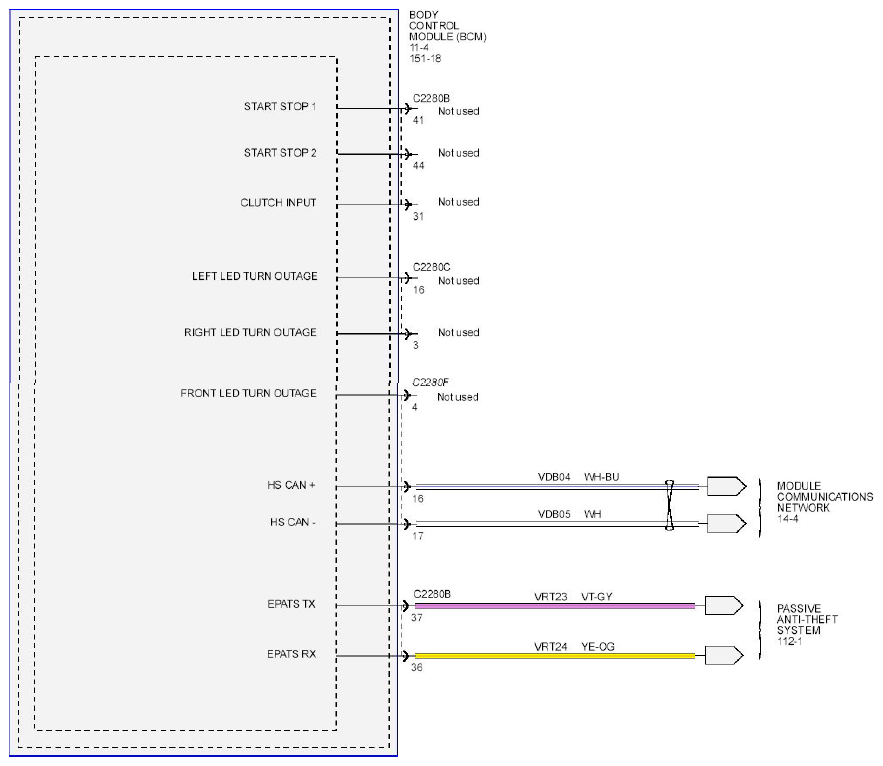

Fig 2: Power Distribution/BCM Circuit Diagram (2 Of 5)

Courtesy of FORD MOTOR CO.

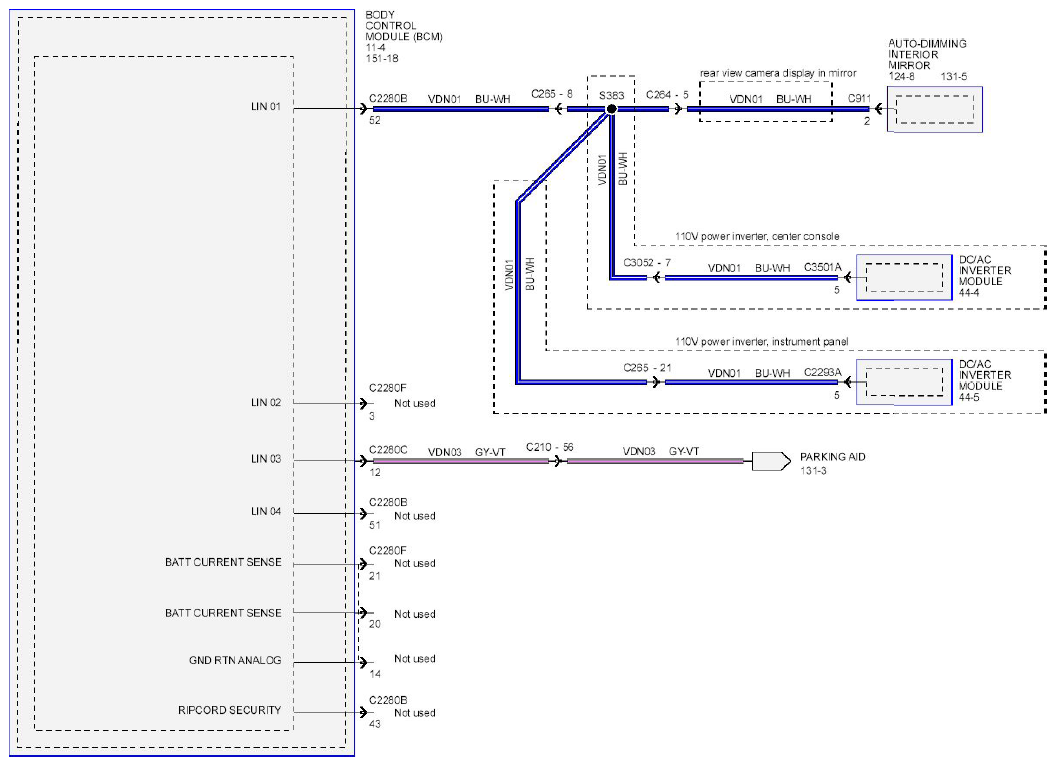

Fig 3: Power Distribution/BCM Circuit Diagram (3 Of 5)

Courtesy of FORD MOTOR CO.

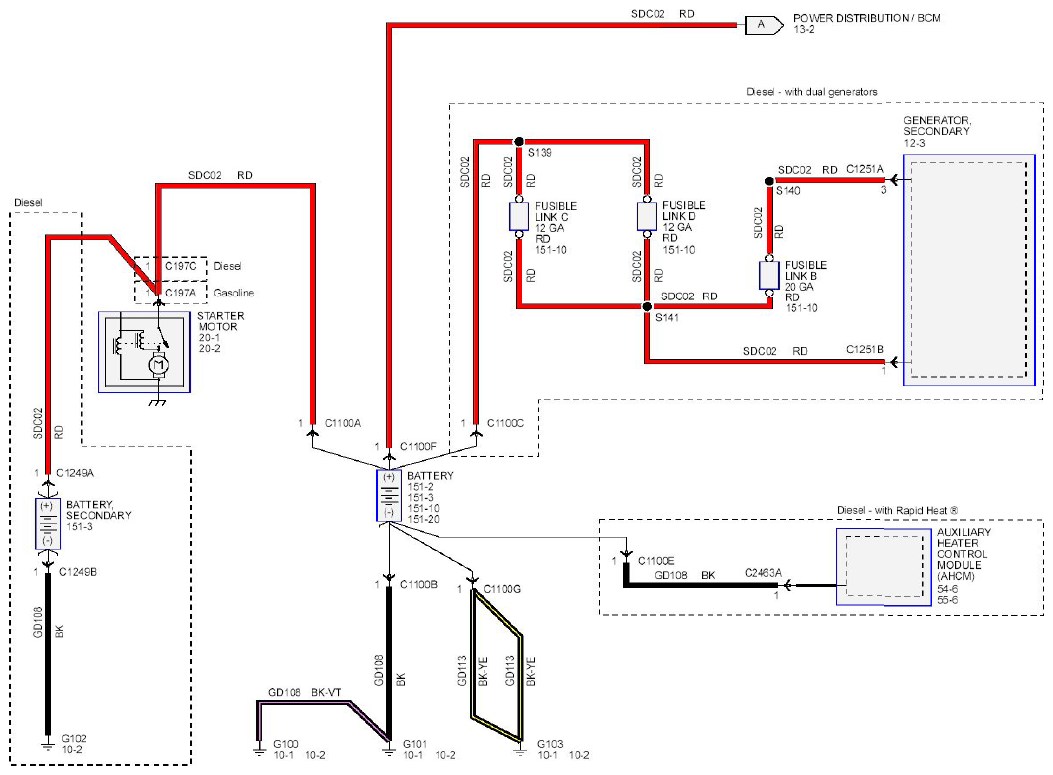

Fig 4: Power Distribution/BCM Circuit Diagram (4 Of 5)

Courtesy of FORD MOTOR CO.

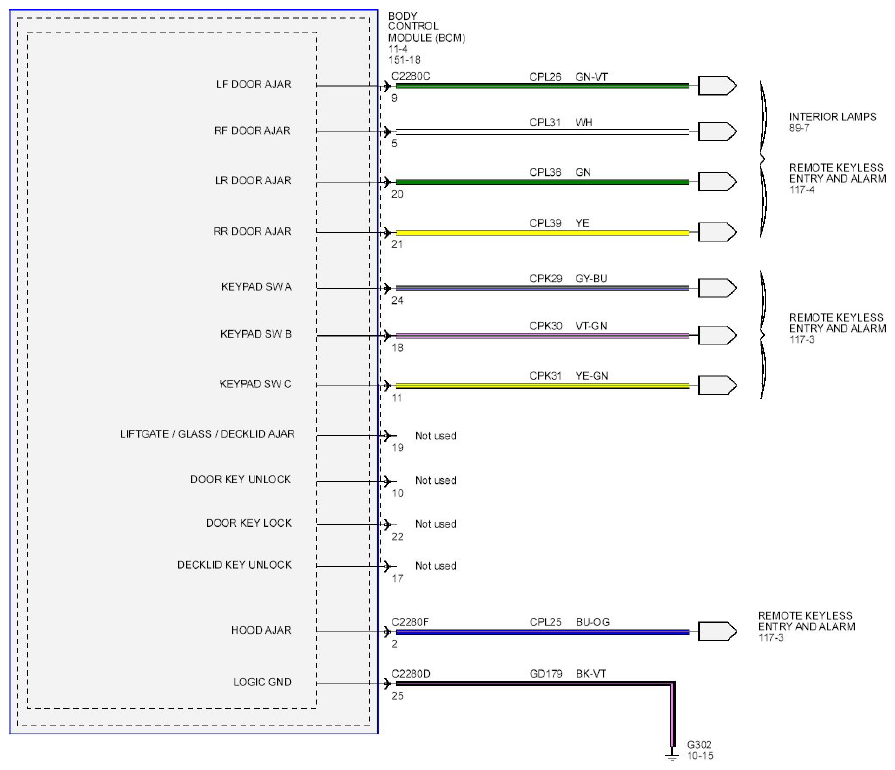

Fig 5: Power Distribution/BCM Circuit Diagram (5 Of 5)

Courtesy of FORD MOTOR CO.
