F35, F36 Gasoline - 6.8L

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

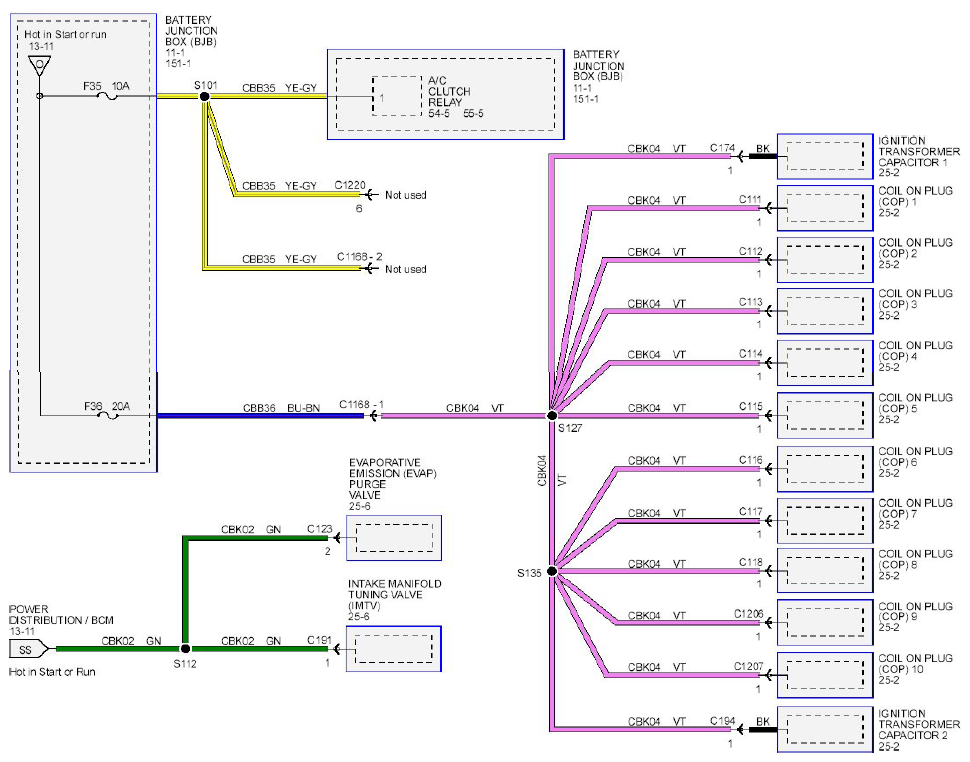

Fig 1: Power Distribution/BCM Circuit Diagram - F35 And F36 (Gasoline - 6.8L)
G08743240Courtesy of FORD MOTOR CO.
