F33, F34, F35, F36, F37, F41, F42

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

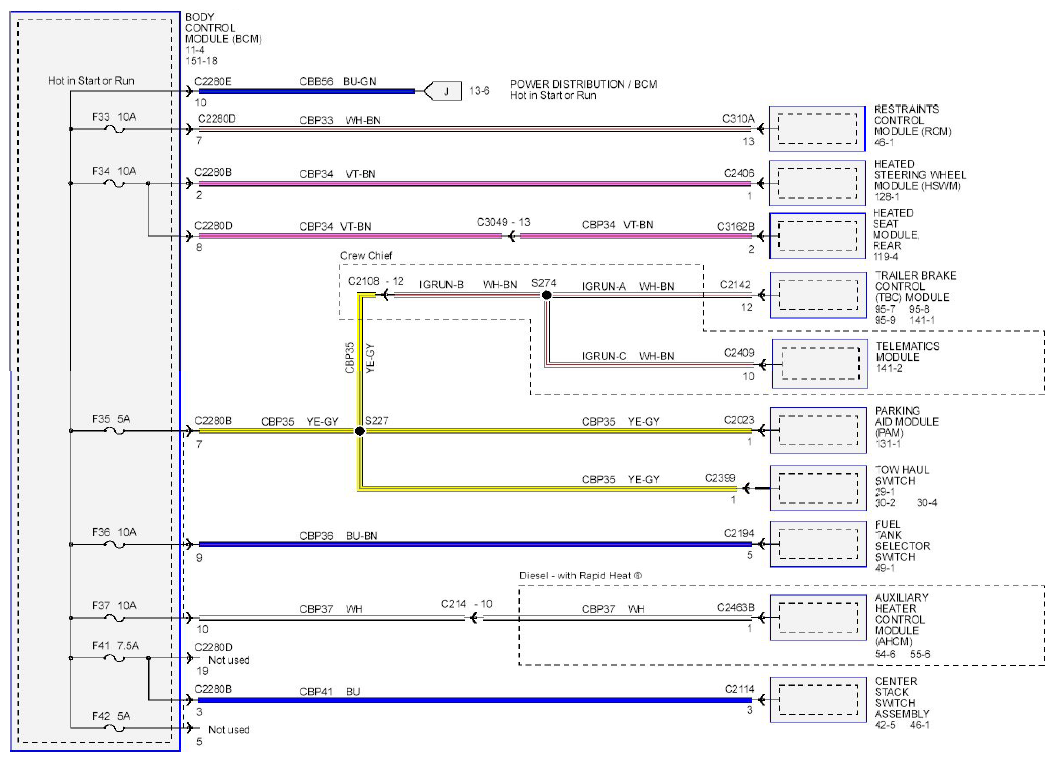

Fig 1: Power Distribution/BCM Circuit Diagram - F33, F34, F35, F36, F37, F41 And F42 (1 Of 5)
G08743264Courtesy of FORD MOTOR CO.
