F30, F40

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

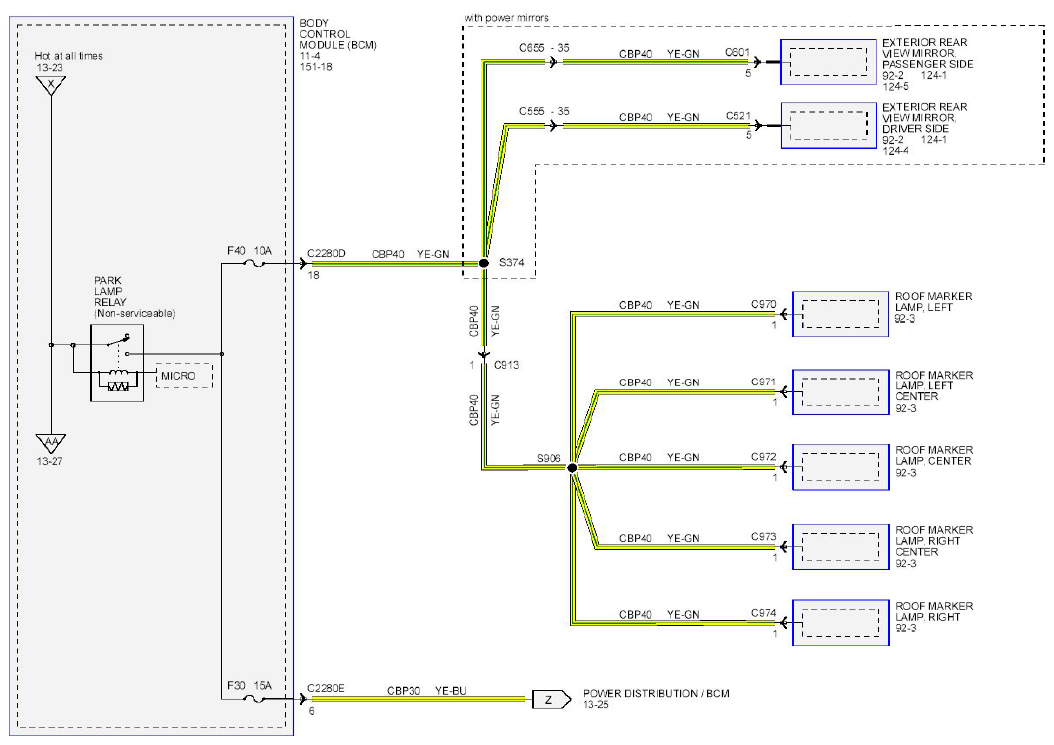

Fig 1: Power Distribution/BCM Circuit Diagram - F30 And F40 (1 Of 2)
G08743251Courtesy of FORD MOTOR CO.

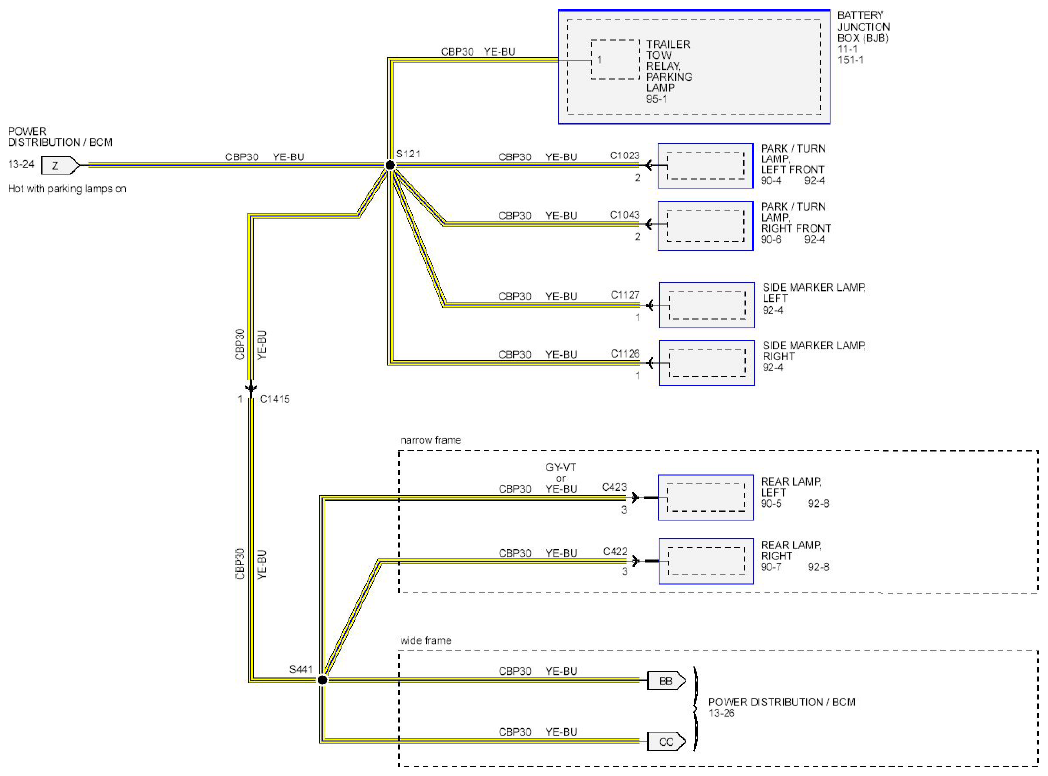

Fig 2: Power Distribution/BCM Circuit Diagram - F30 And F40 (2 Of 2)
G08743252Courtesy of FORD MOTOR CO.
