3-Button Message Center

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

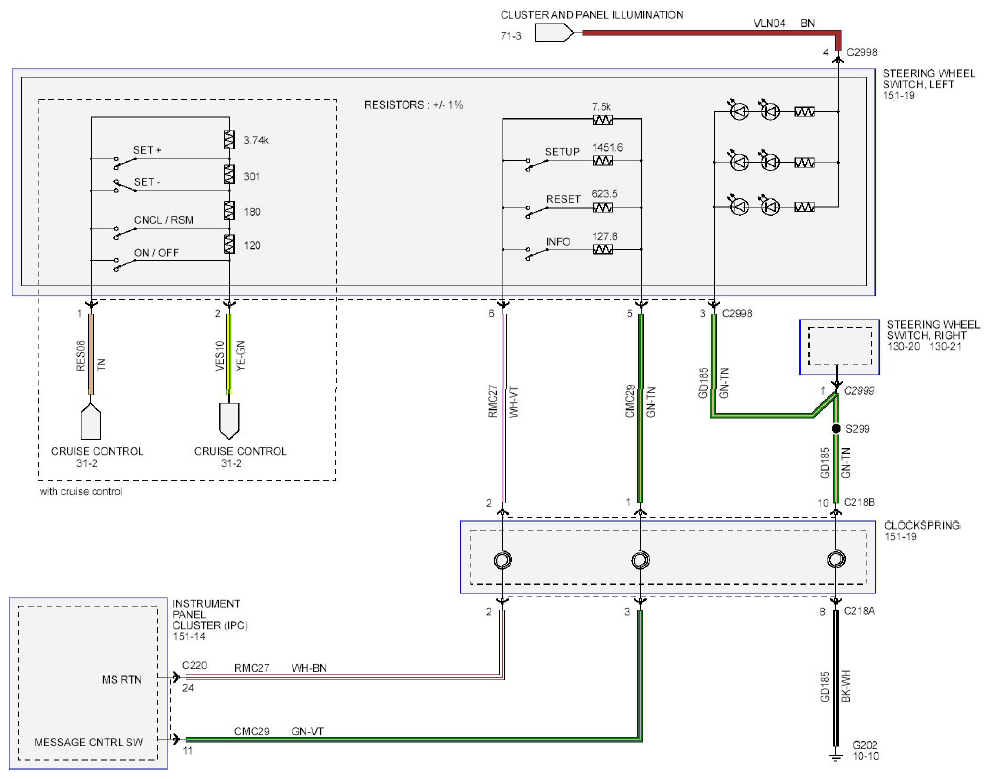

Fig 1: Instrument Cluster - Circuit Diagram (3-Button Message Center)
G08743378Courtesy of FORD MOTOR CO.
