Electronic Engine Controls-6.8L: Notes

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

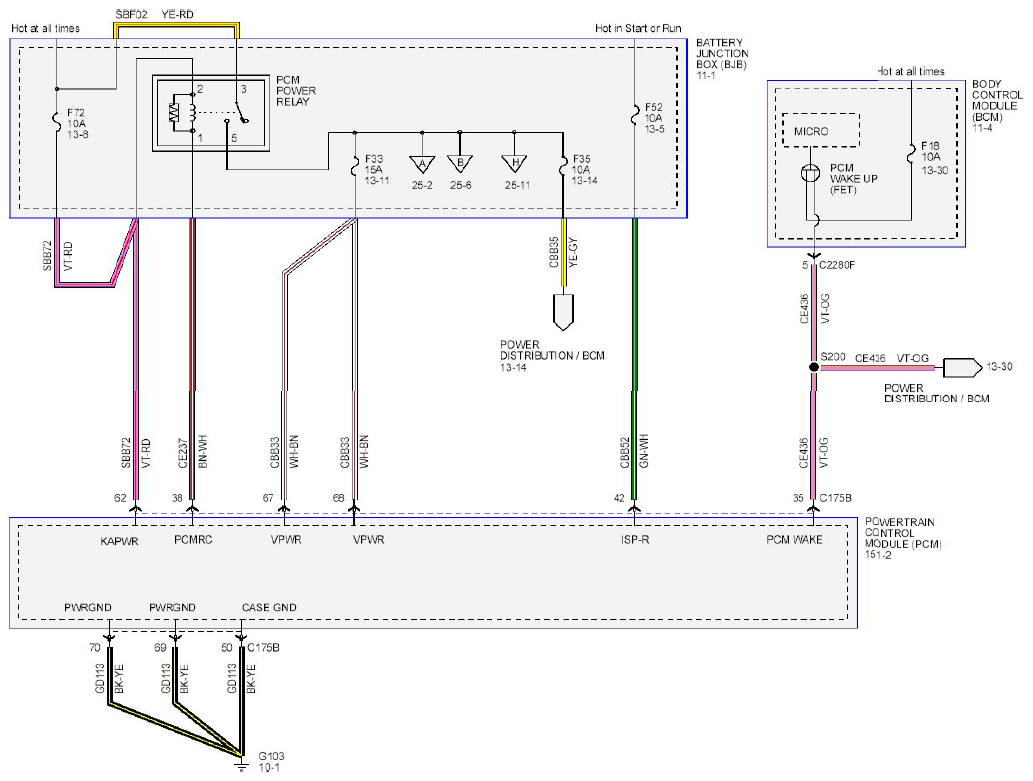

Fig 1: Electronic Engine Controls - 6.8L - Circuit Diagram (1 Of 12)

G08743278

Courtesy of FORD MOTOR CO.

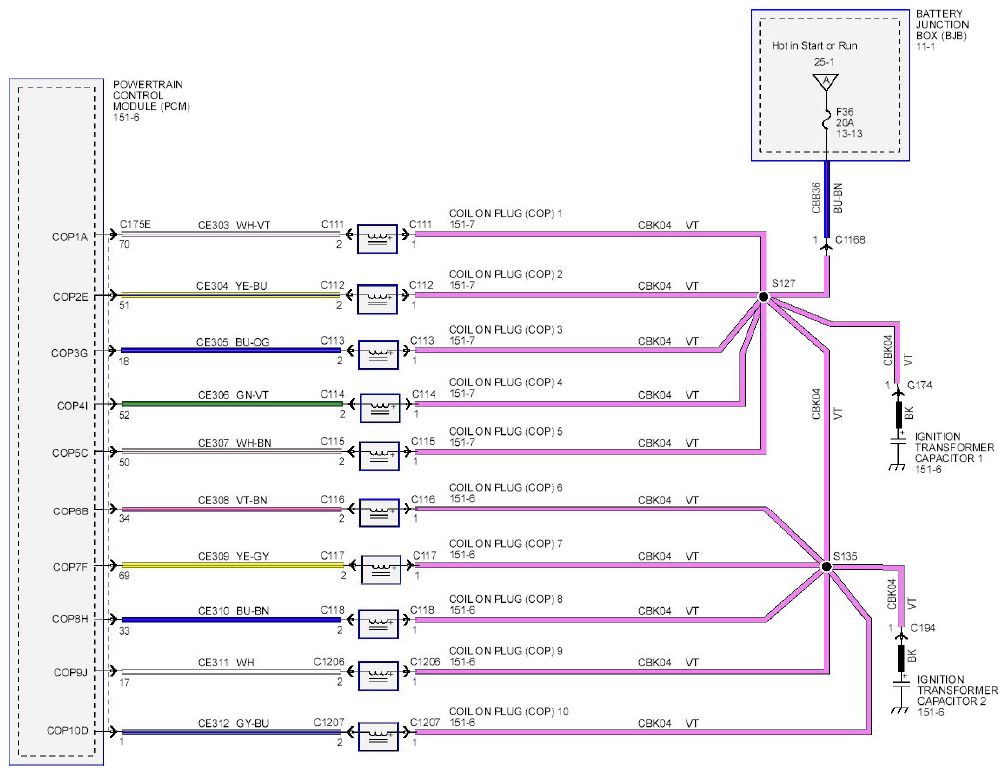

Fig 2: Electronic Engine Controls - 6.8L - Circuit Diagram (2 Of 12)

G08743279

Courtesy of FORD MOTOR CO.

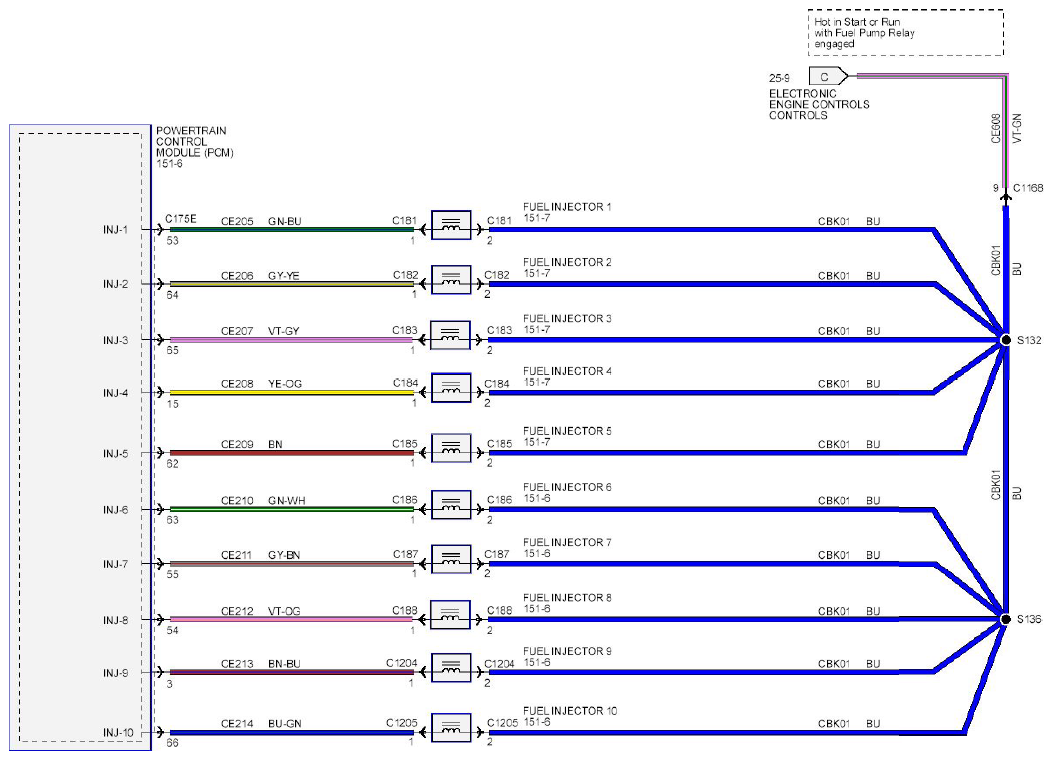

Fig 3: Electronic Engine Controls - 6.8L - Circuit Diagram (3 Of 12)

G08743280

Courtesy of FORD MOTOR CO.

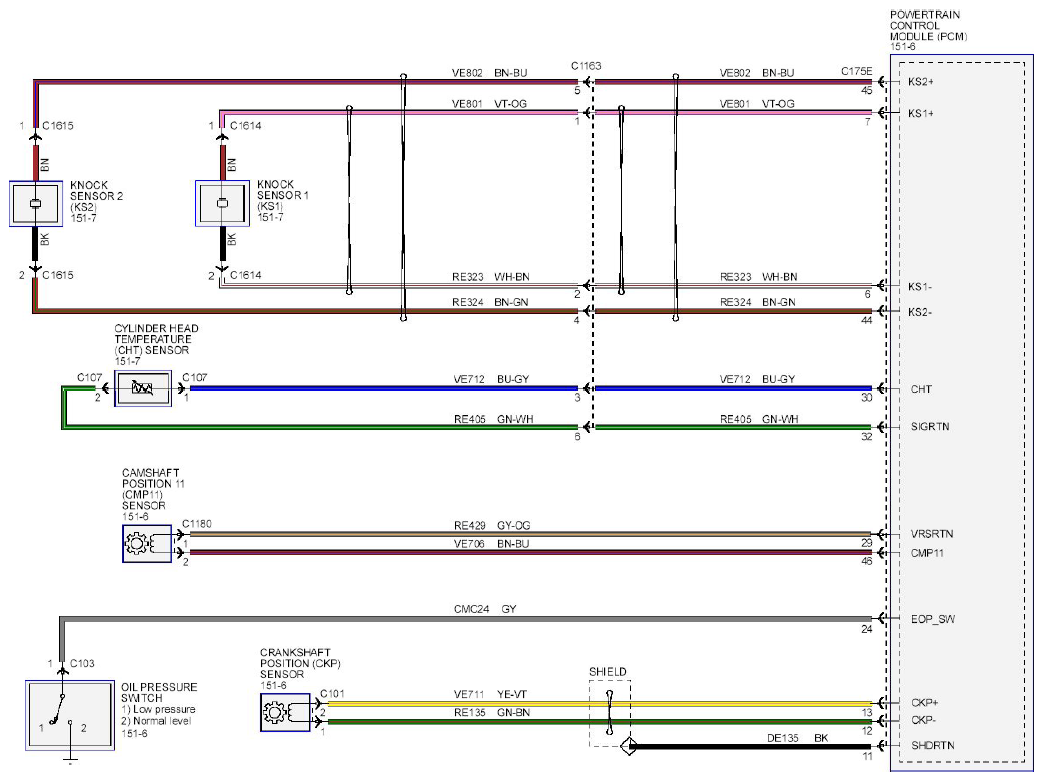

Fig 4: Electronic Engine Controls - 6.8L - Circuit Diagram (4 Of 12)

G08743281

Courtesy of FORD MOTOR CO.

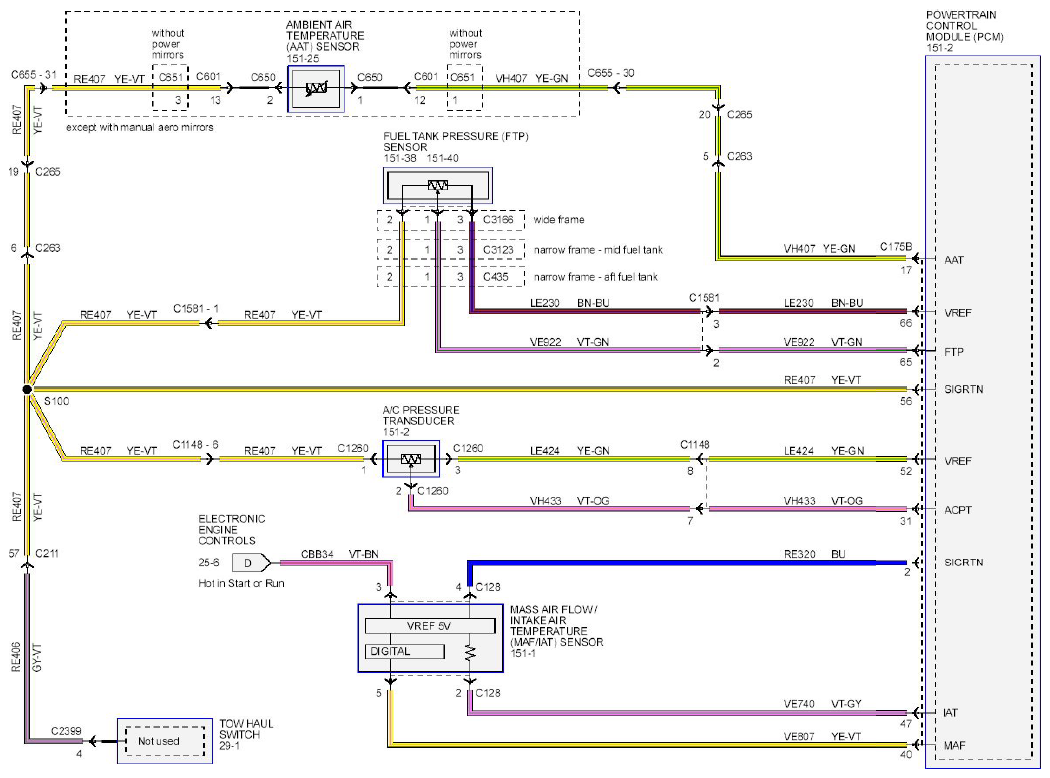

Fig 5: Electronic Engine Controls - 6.8L - Circuit Diagram (5 Of 12)

G08743282

Courtesy of FORD MOTOR CO.

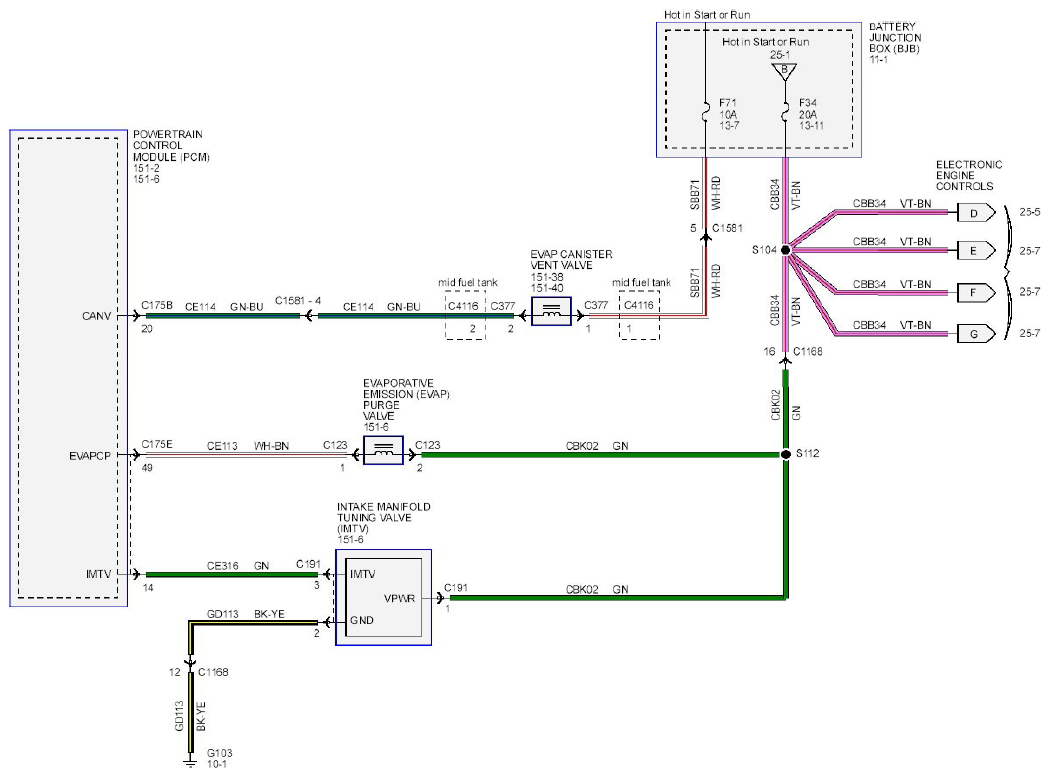

Fig 6: Electronic Engine Controls - 6.8L - Circuit Diagram (6 Of 12)

G08743283

Courtesy of FORD MOTOR CO.

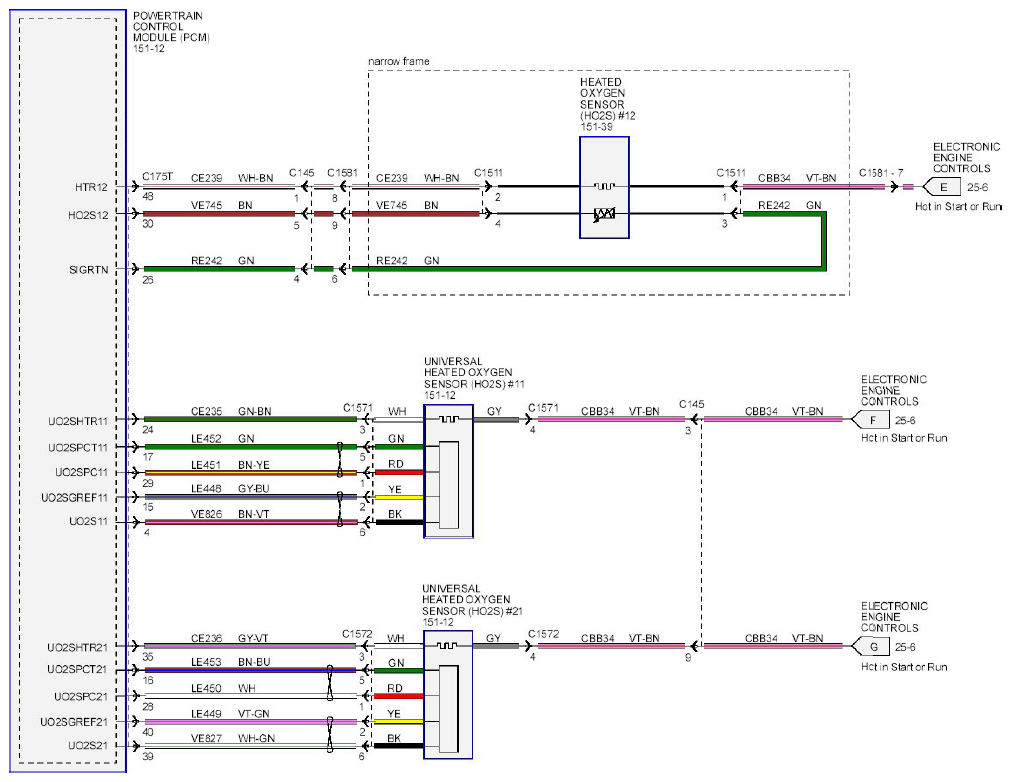

Fig 7: Electronic Engine Controls - 6.8L - Circuit Diagram (7 Of 12)

G08743284

Courtesy of FORD MOTOR CO.

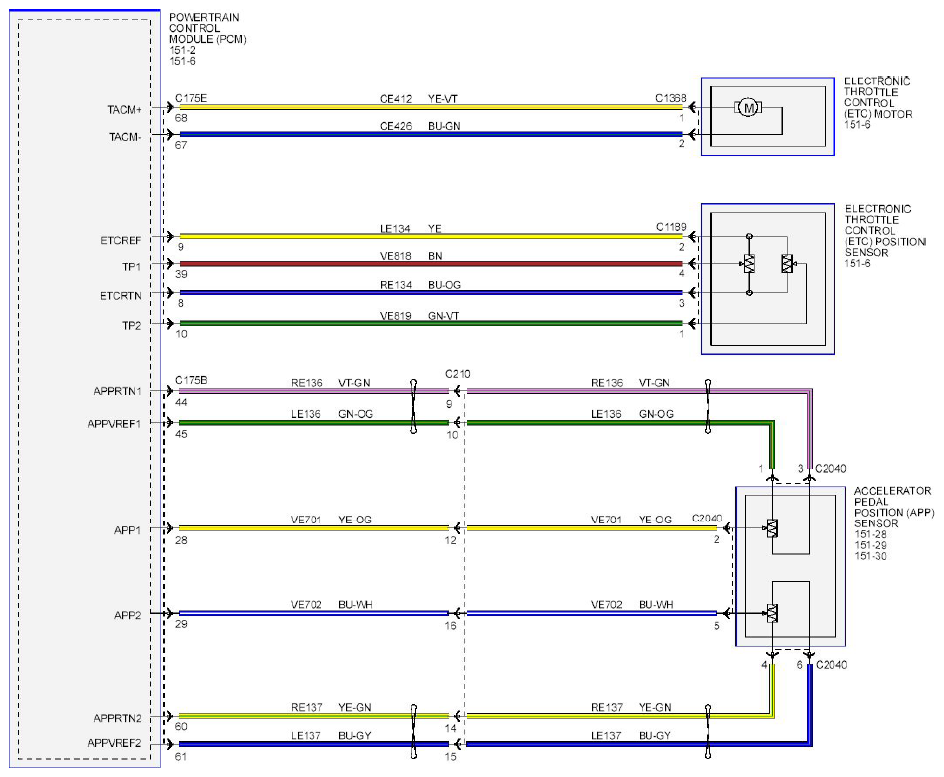

Fig 8: Electronic Engine Controls - 6.8L - Circuit Diagram (8 Of 12)

G08743285

Courtesy of FORD MOTOR CO.

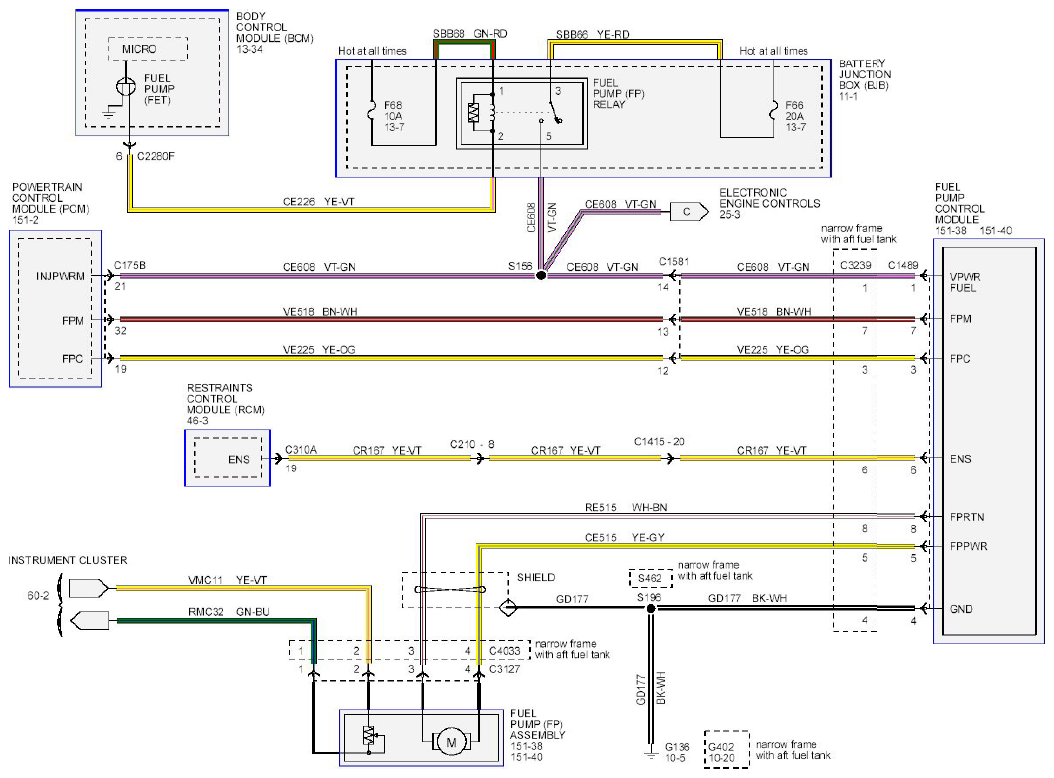

Fig 9: Electronic Engine Controls - 6.8L - Circuit Diagram (9 Of 12)

G08743286

Courtesy of FORD MOTOR CO.

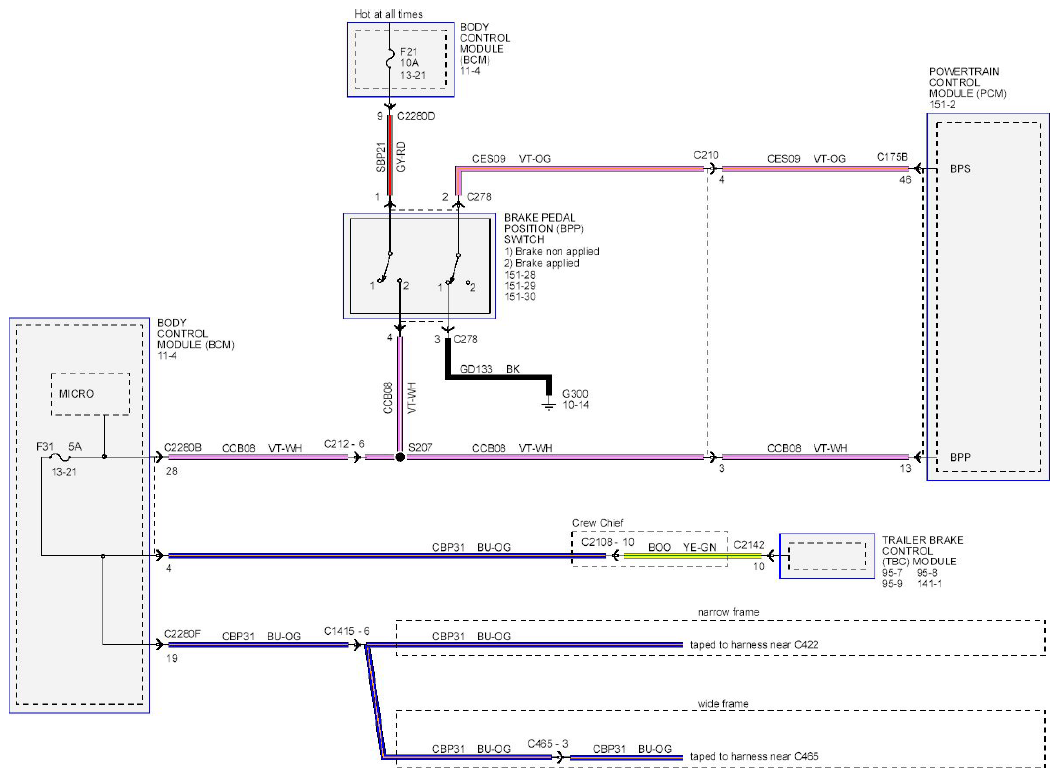

Fig 10: Electronic Engine Controls - 6.8L - Circuit Diagram (10 Of 12)

G08743287

Courtesy of FORD MOTOR CO.

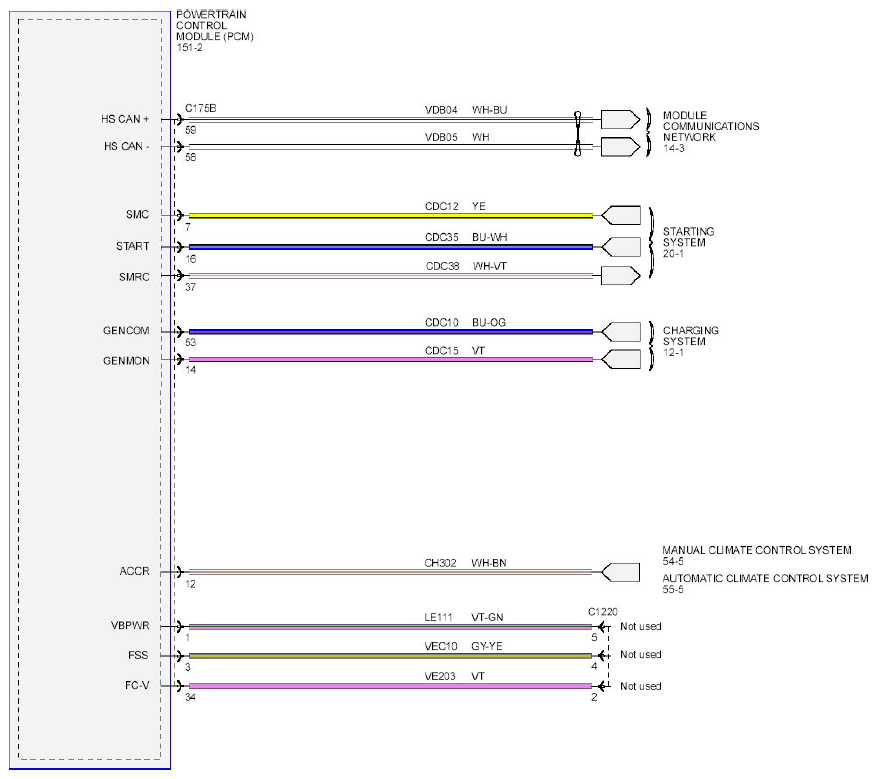

Fig 11: Electronic Engine Controls - 6.8L - Circuit Diagram (11 Of 12)

G08743289

Courtesy of FORD MOTOR CO.

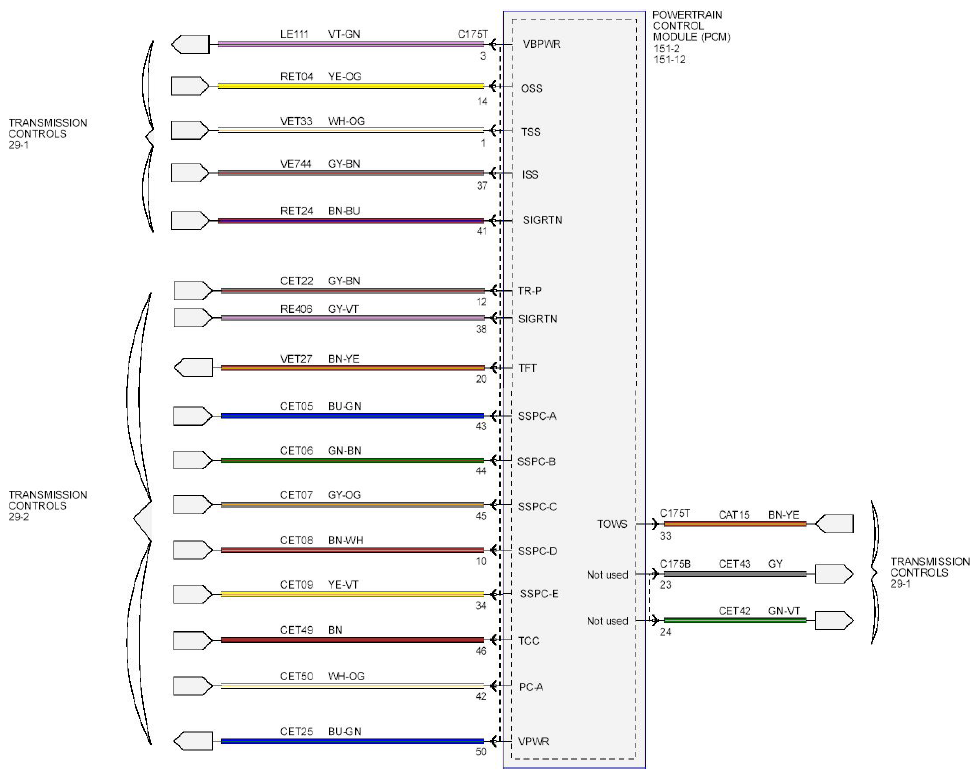

Fig 12: Electronic Engine Controls - 6.8L - Circuit Diagram (12 Of 12)

G08743290

Courtesy of FORD MOTOR CO.
