Except High Sulfur

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

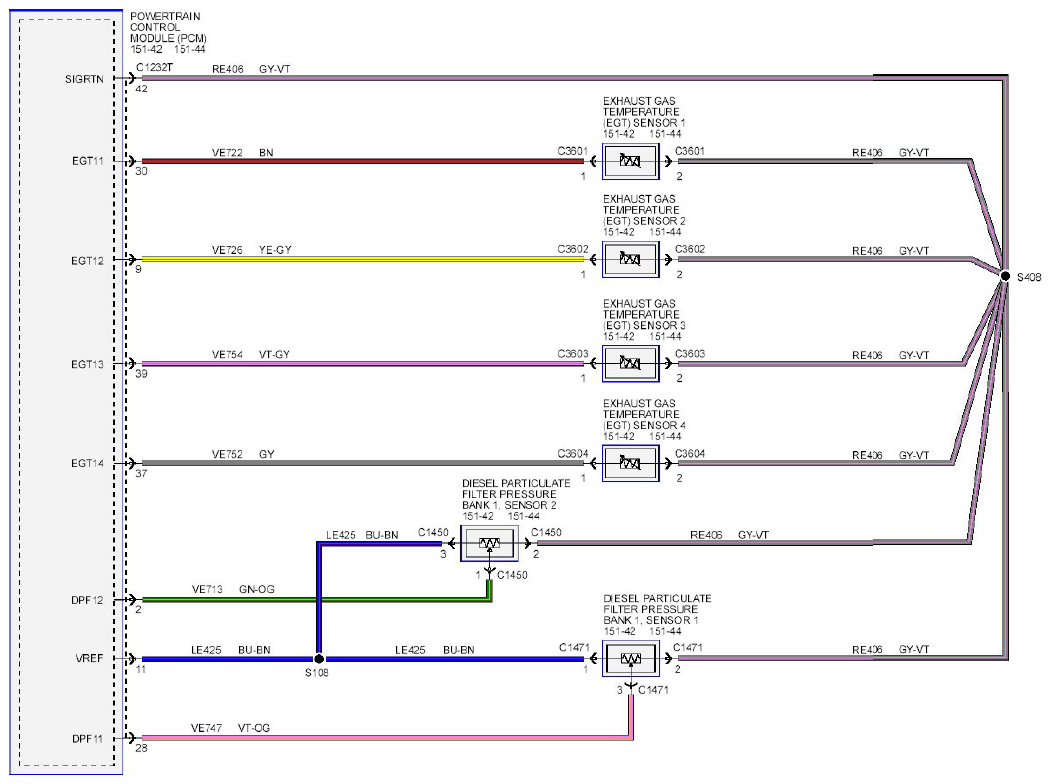

Fig 1: Electronic Engine Controls - 6.7L Diesel - Circuit Diagram - Except High Sulfur (1 Of 2)
G08743310Courtesy of FORD MOTOR CO.

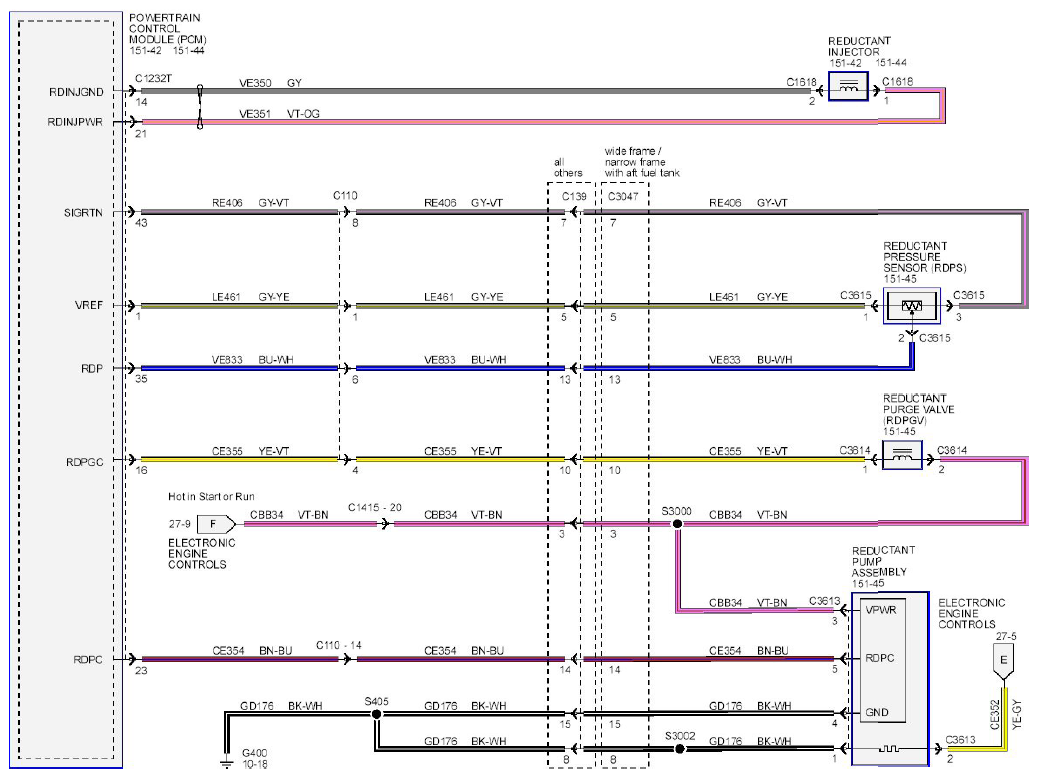

Fig 2: Electronic Engine Controls - 6.7L Diesel - Circuit Diagram - Except High Sulfur (2 Of 2)
G08743311Courtesy of FORD MOTOR CO.
