Seat Control Switch, Driver Side (6 -Way): Schematic

WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

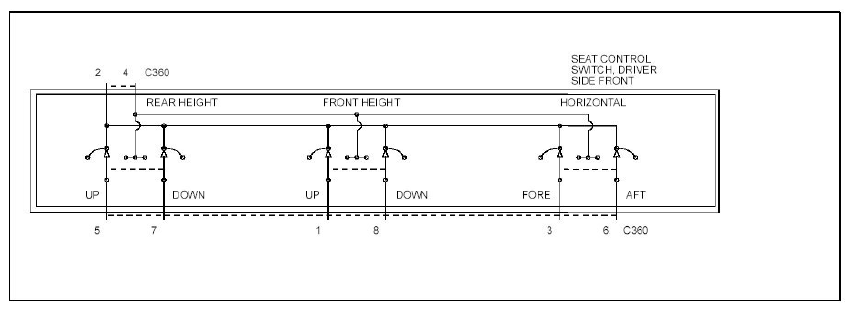

Fig 1: Driver Side Seat Control Switch (6 -Way) Schematic
G08748630Courtesy of FORD MOTOR CO.
