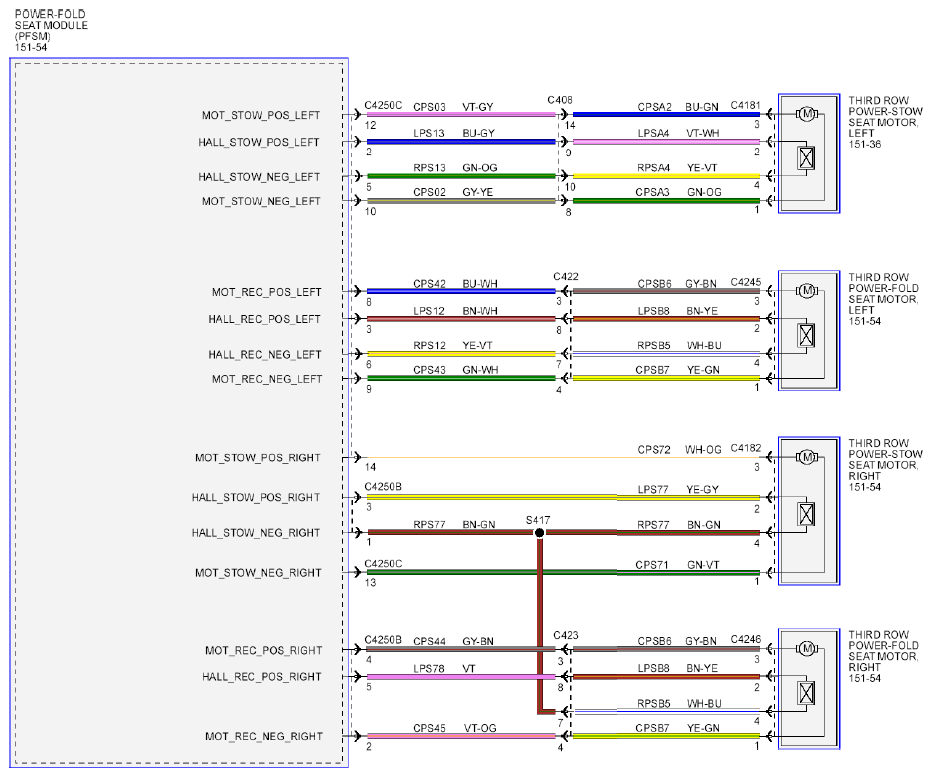

Fig 1: Power Seats (With Third Row Folding Seats Early Production) - Wiring Diagram (1 Of 4)
Courtesy of FORD MOTOR CO.

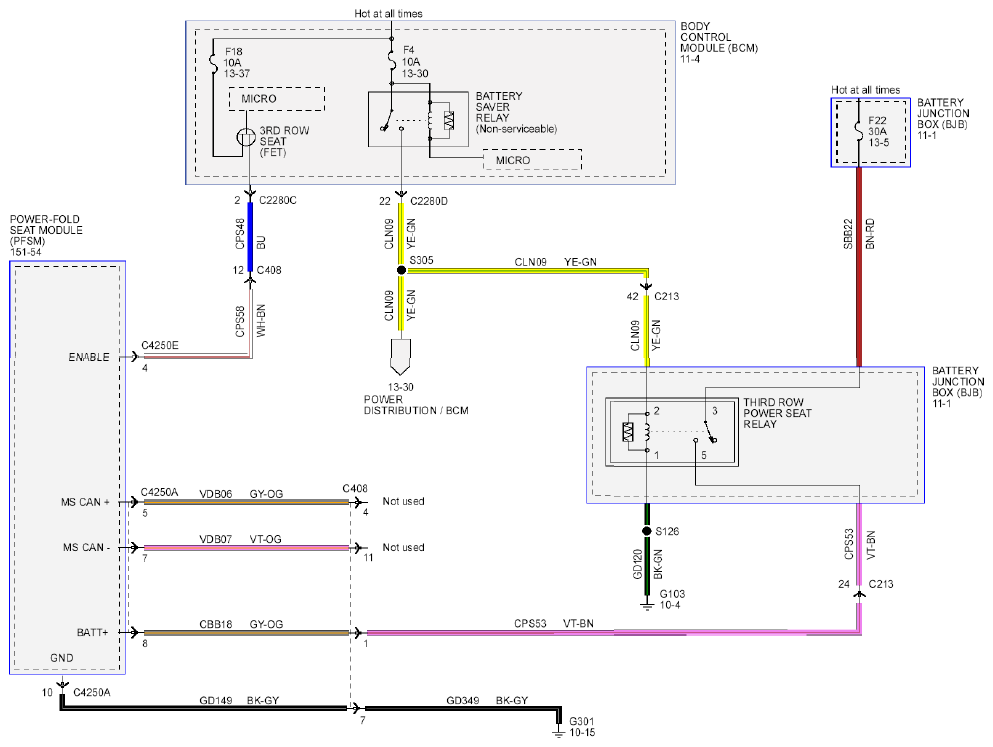

Fig 2: Power Seats (With Third Row Folding Seats Early Production) - Wiring Diagram (2 Of 4)
Courtesy of FORD MOTOR CO.

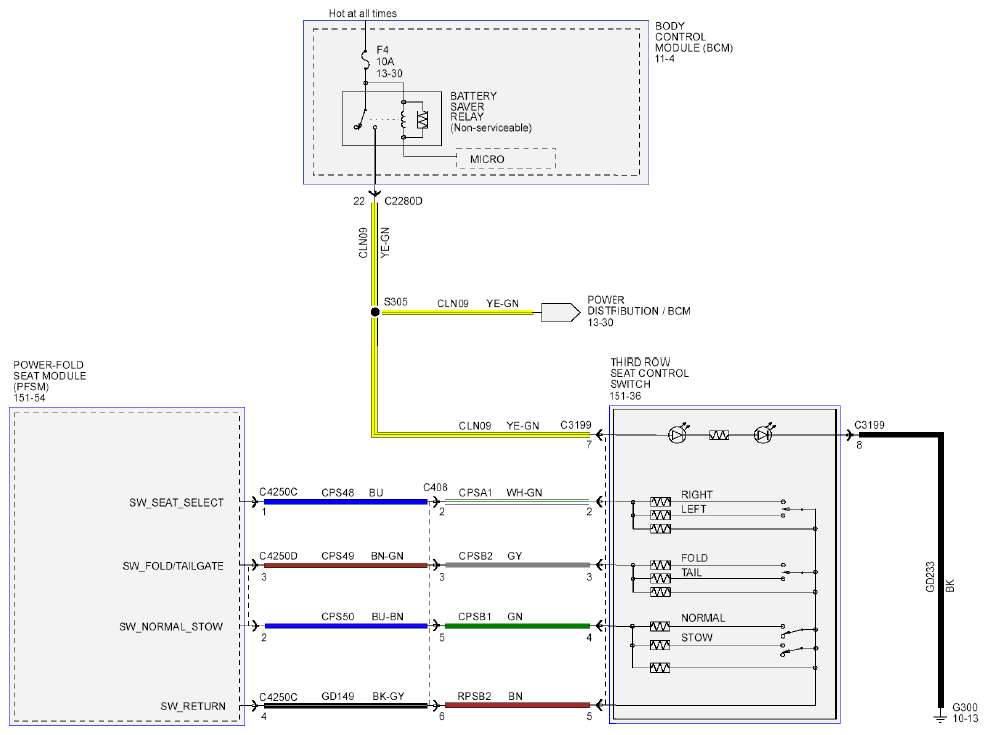

Fig 3: Power Seats (With Third Row Folding Seats Early Production) - Wiring Diagram (3 Of 4)
Courtesy of FORD MOTOR CO.

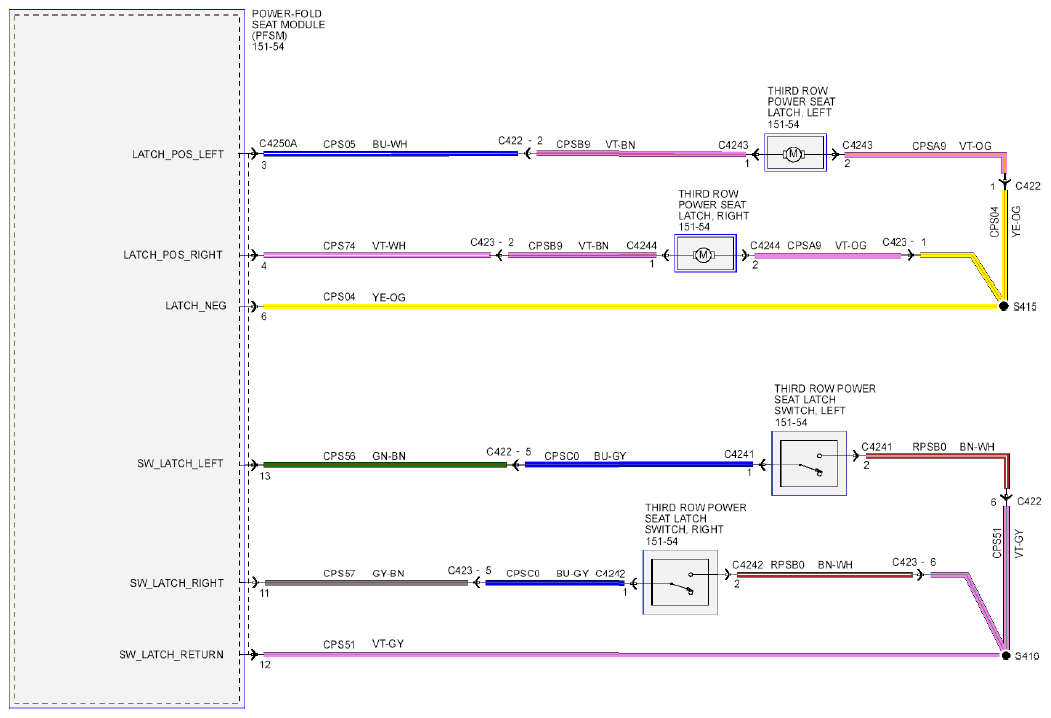

Fig 4: Power Seats (With Third Row Folding Seats Early Production) - Wiring Diagram (4 Of 4)
