WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Power Mirrors - Wiring Diagram (Limited Sport - With Memory)
Courtesy of FORD MOTOR CO.

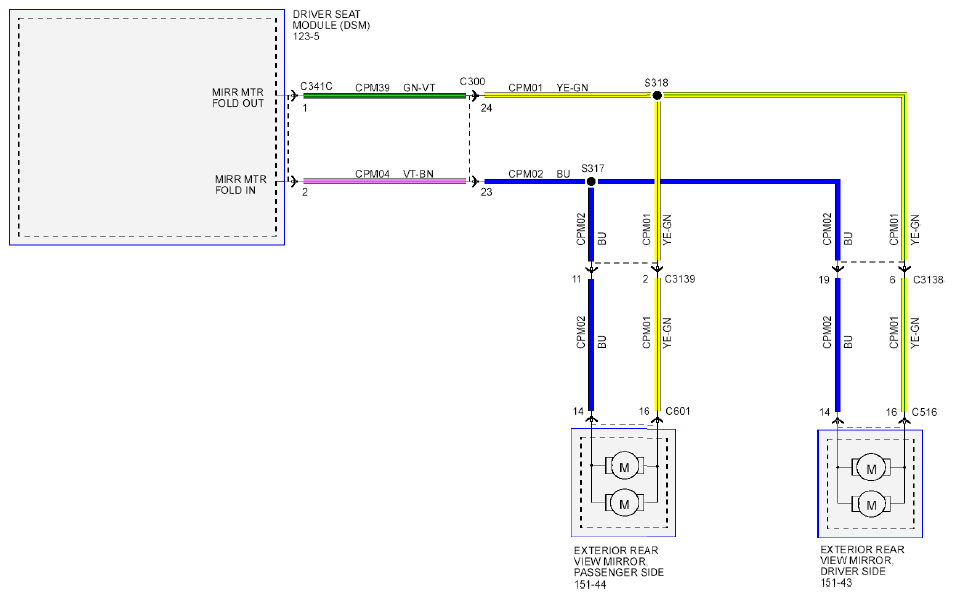

Fig 1: Power Mirrors (Limited Sport - With Memory) - Wiring Diagram (1 Of 3)
Courtesy of FORD MOTOR CO.

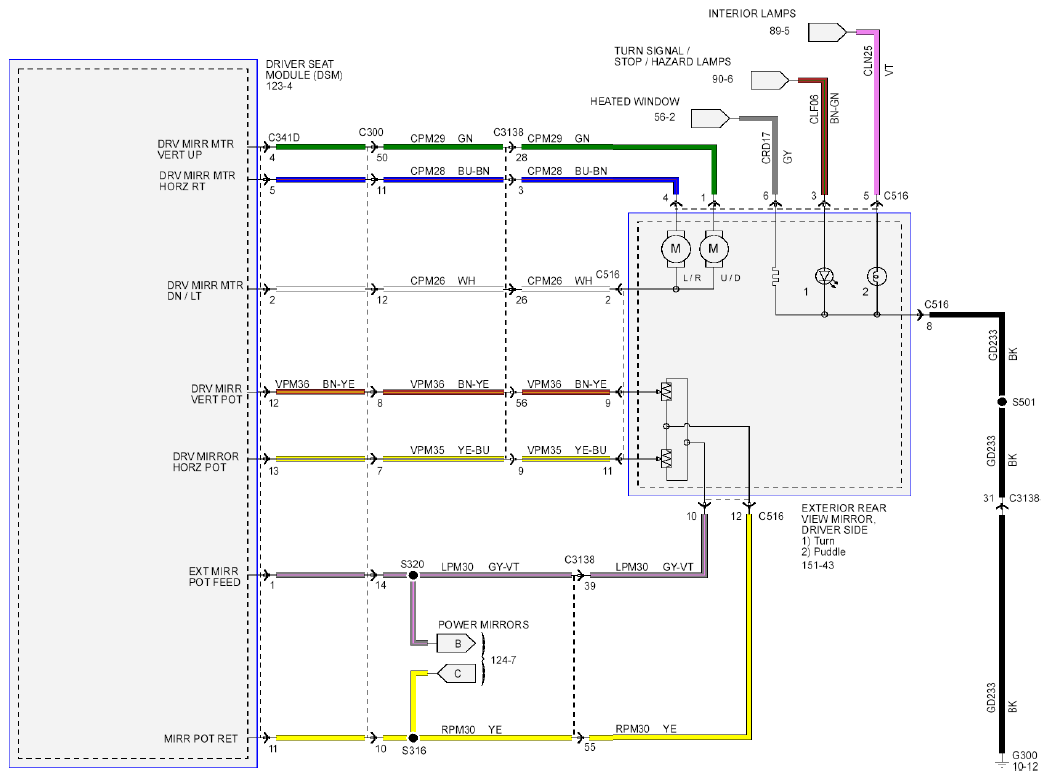

Fig 2: Power Mirrors (Limited Sport - With Memory) - Wiring Diagram (2 Of 3)
Courtesy of FORD MOTOR CO.

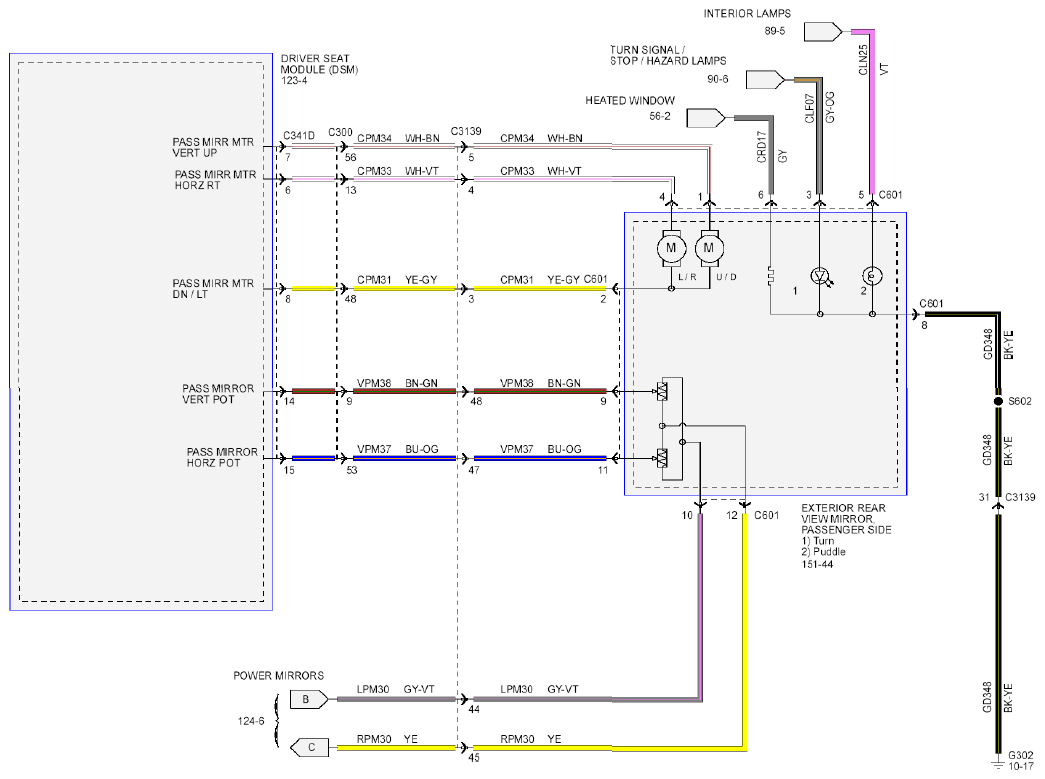

Fig 3: Power Mirrors (Limited Sport - With Memory) - Wiring Diagram (3 Of 3)
