WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

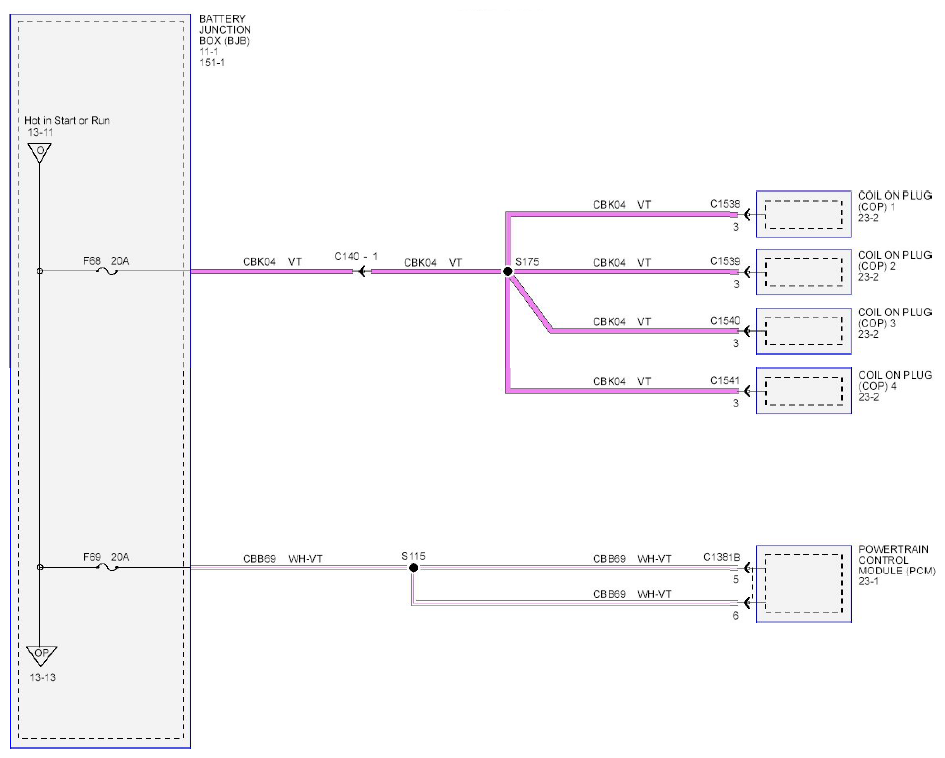

Fig 1: Power Distribution/BCM - Wiring Diagram - F68 And F69 (2.0L GTDI)
Courtesy of FORD MOTOR CO.

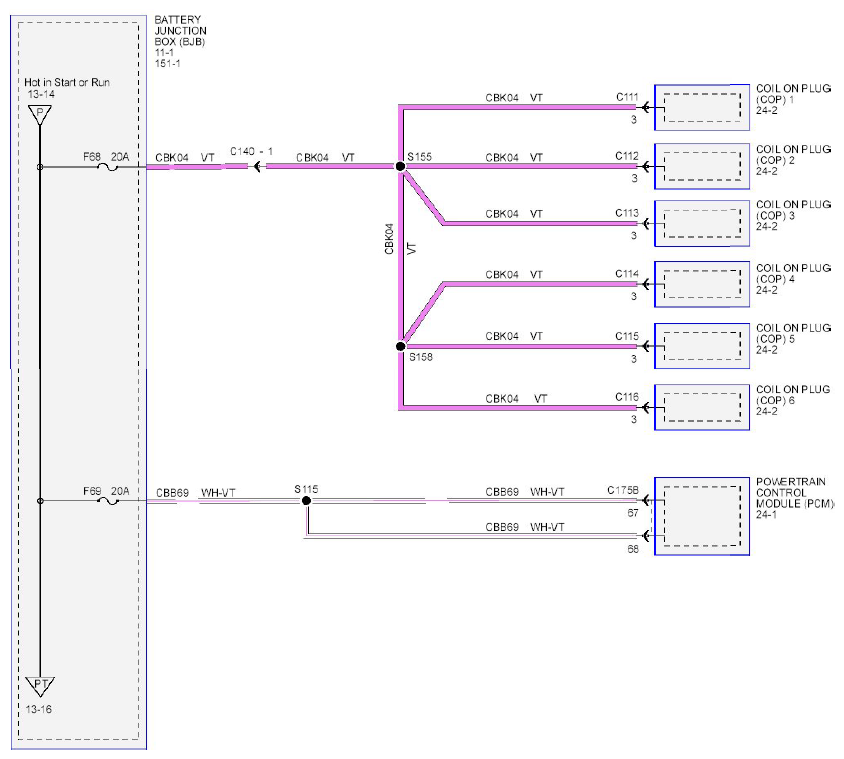

Fig 1: Power Distribution/BCM - Wiring Diagram - F68 And F69 (3.5L/3.7L TIVCT)
Courtesy of FORD MOTOR CO.

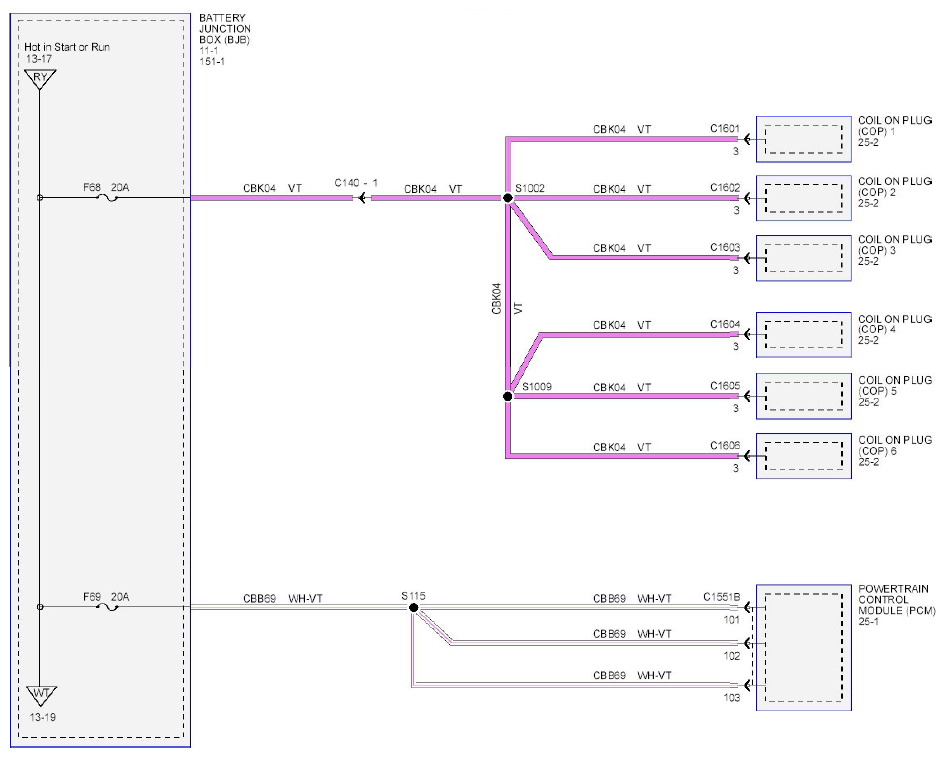

Fig 1: Power Distribution/BCM - Wiring Diagram - F68 And F69 (3.5L GTDI)
