F22, F47

WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

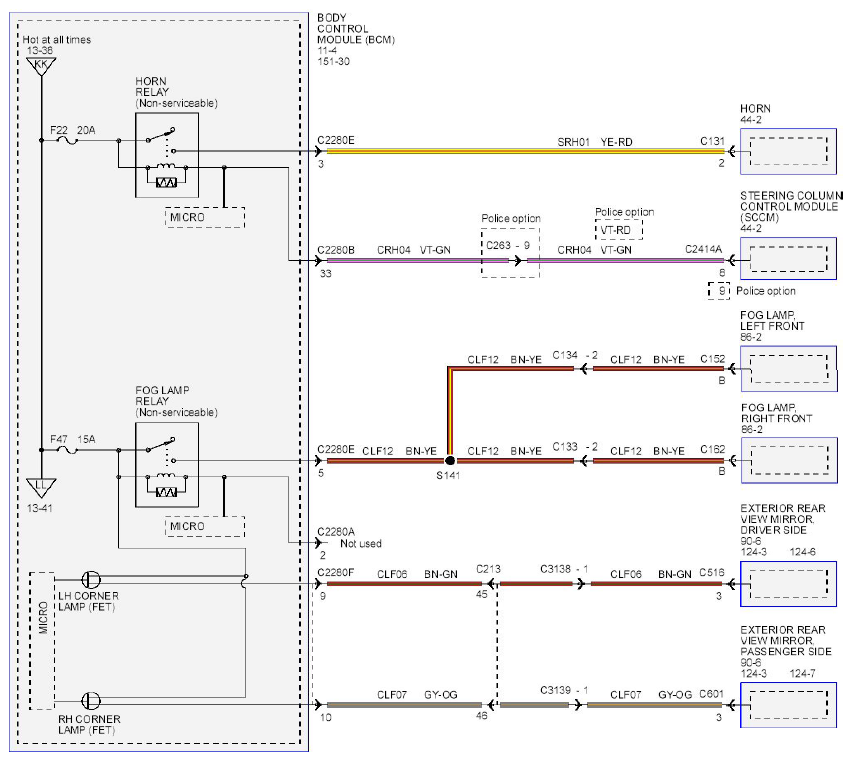

Fig 1: Power Distribution/BCM - Wiring Diagram - F22 And F47
G08748335Courtesy of FORD MOTOR CO.
