With Heated Seats

WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

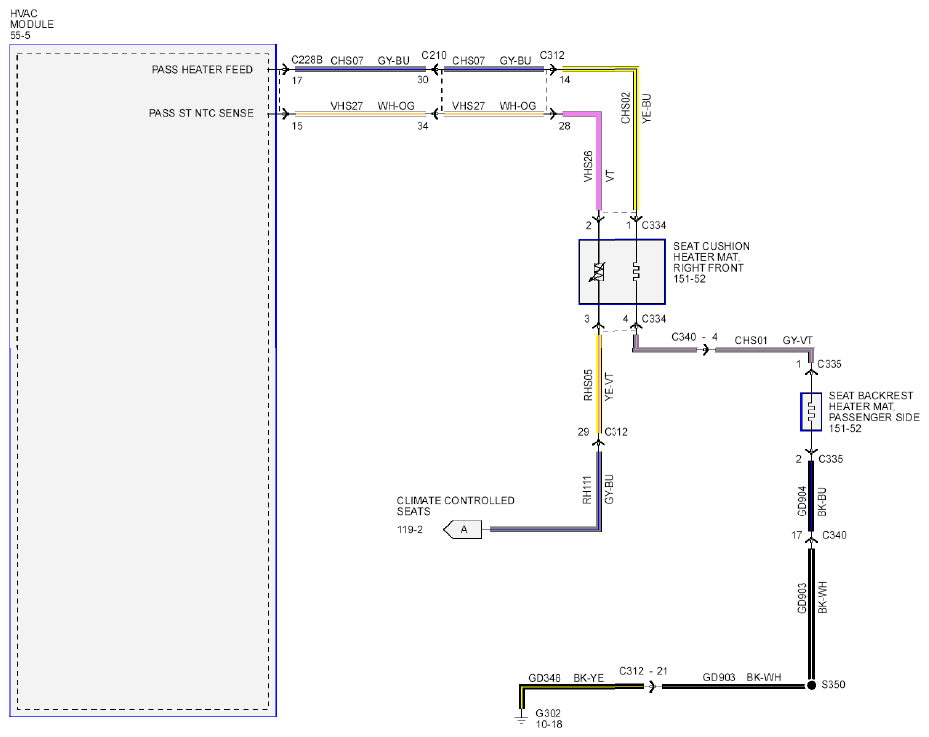

Fig 1: Climate Controlled Seats (With Heated Seats) - Wiring Diagram (1 Of 3)

Courtesy of FORD MOTOR CO.

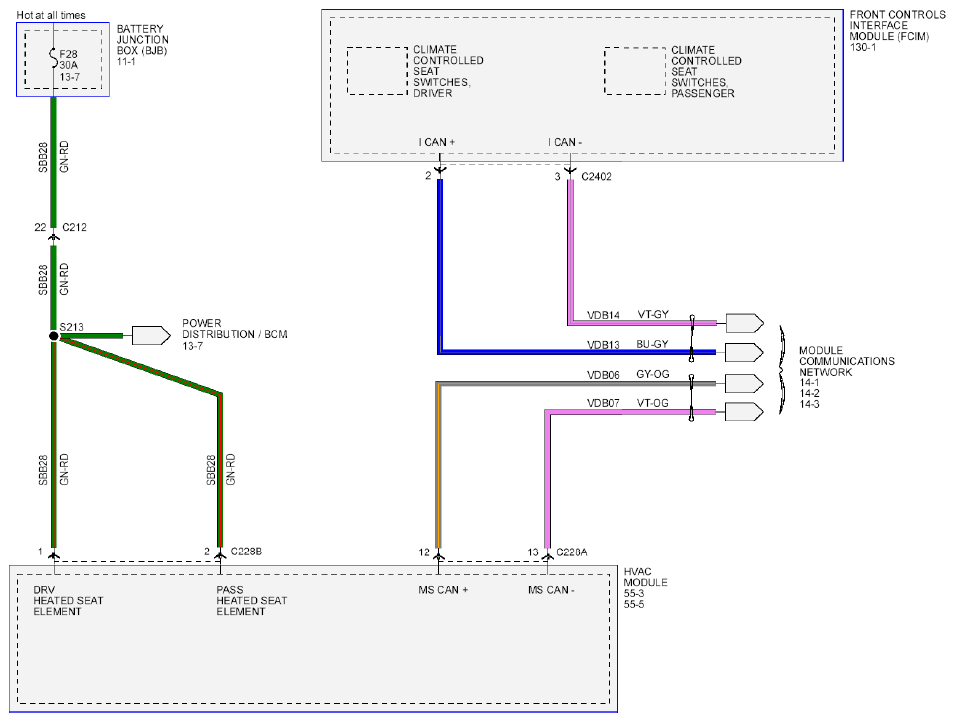

Fig 2: Climate Controlled Seats (With Heated Seats) - Wiring Diagram (2 Of 3)

Courtesy of FORD MOTOR CO.

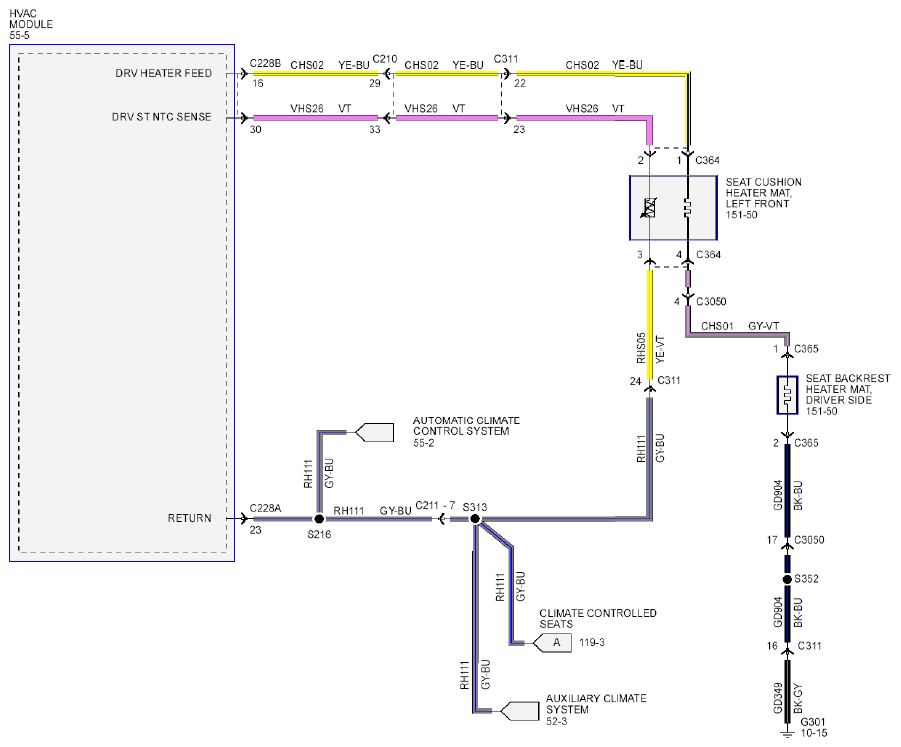

Fig 3: Climate Controlled Seats (With Heated Seats) - Wiring Diagram (3 Of 3)

Courtesy of FORD MOTOR CO.
