With Terrain Management

WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

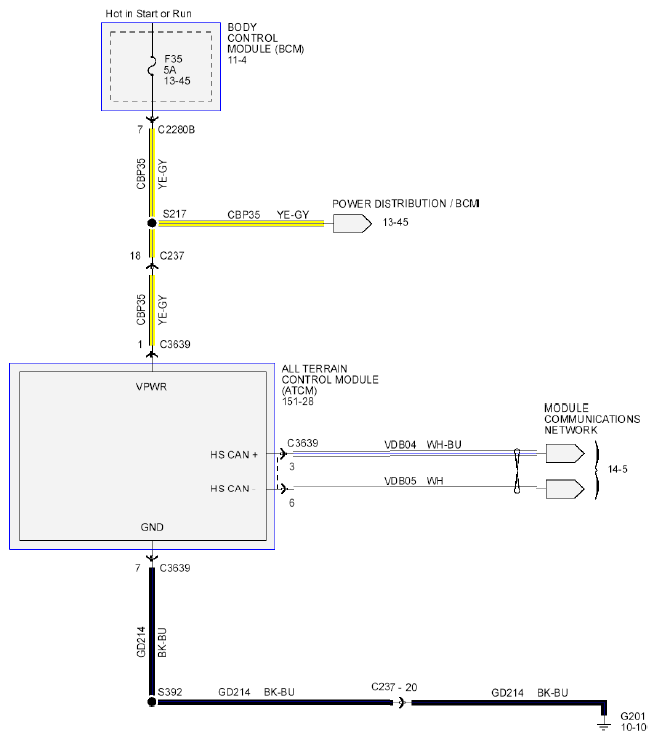

Fig 1: All Wheel Drive - Wiring Diagram (With Terrain Management)
G08748415Courtesy of FORD MOTOR CO.
