G106, G111, G112

WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

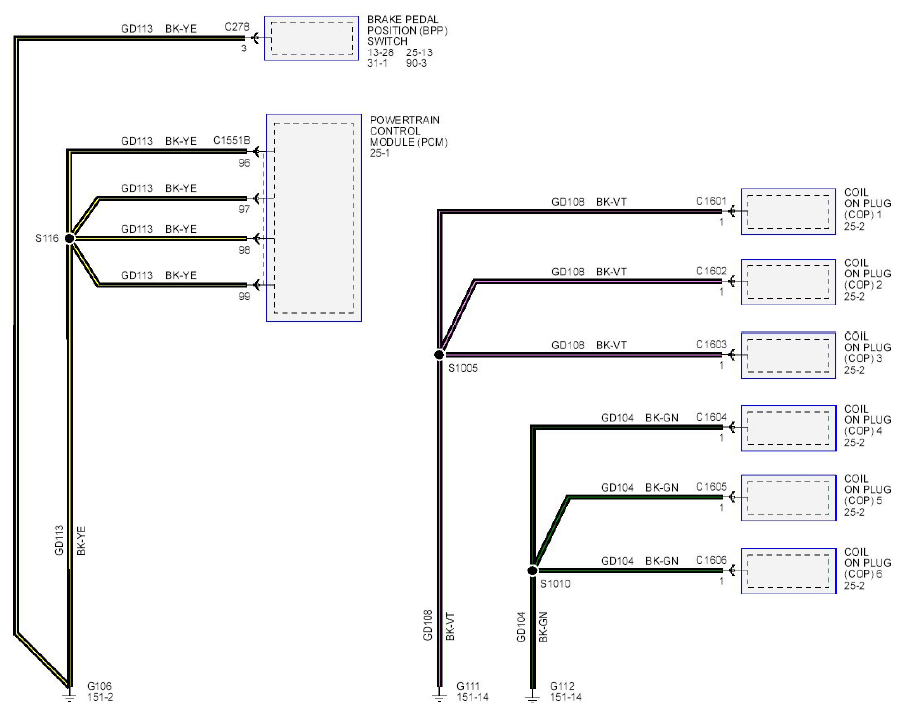

Fig 1: Grounds System Wiring Diagram (G106, G111, G112)
G08748279Courtesy of FORD MOTOR CO.
