Section 203 (OEM Ground Distribution): Grounds: G103

WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

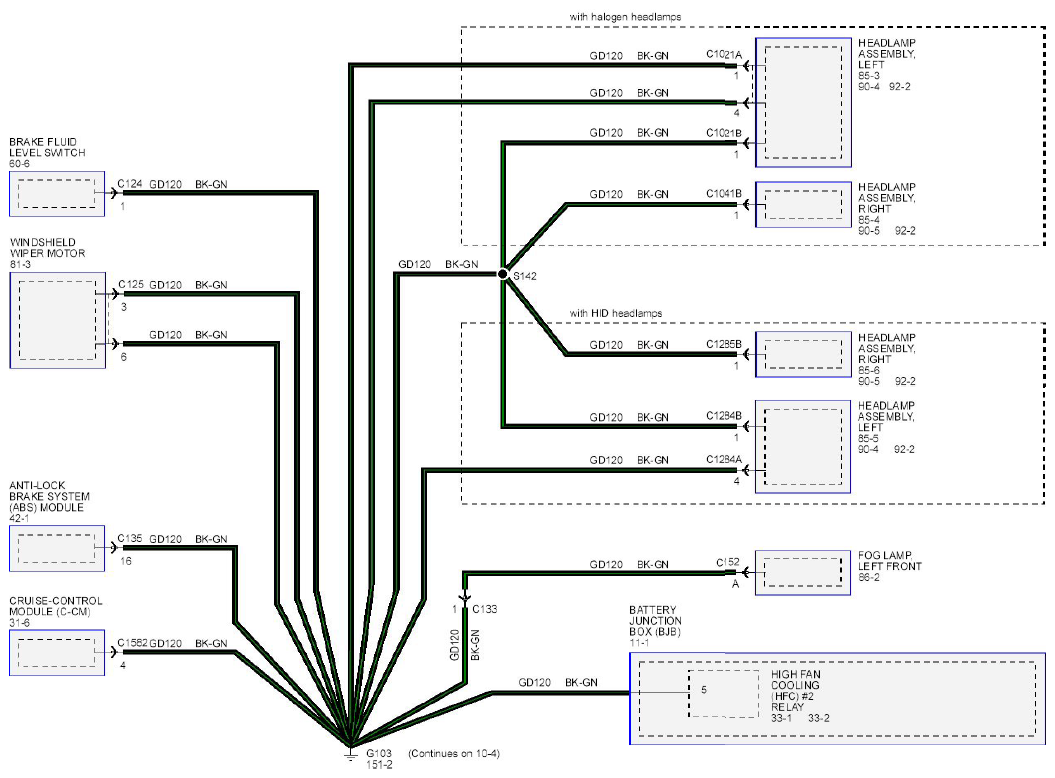

Fig 1: Grounds System Wiring Diagram (G103)

Courtesy of FORD MOTOR CO.
