Convertible Top Tension Cable: Removal

WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: LH shown in illustration, RH similar.

Remove the upper quarter trim panel cap and upper quarter trim panel. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION .
Open the convertible top approximately half-way.
Remove pushpins and the front weatherstrip.

Fig 1: Locating Front Weatherstrip Pushpins
Courtesy of FORD MOTOR CO.
Remove the 2 Torx screws and the front weatherstrip retainer channel.

Fig 2: Locating Front Weatherstrip Retainer Channel Torx Screws
Courtesy of FORD MOTOR CO.
Drill out the rivet attaching the cable flag to the convertible top frame No. 1 bow. Once the cable flag is loose, use a small punch to knock out the rivet slug and clear the hole.

Fig 3: Locating Cable Guide Rivet
Courtesy of FORD MOTOR CO.
Using side cutters, cut the cable from the cable flag (cut as close to the flag as possible).

Fig 4: Locating Cable Flag
Courtesy of FORD MOTOR CO.
NOTE: Use the old cable to pull the new cable through the top.

Temporarily tie the old cable to the spring end of the new tension cable (make sure it is secure).
Close the convertible top until it is approximately 15.25 cm (6 in) from the top of the windshield frame.
From inside vehicle, carefully pull the old tension cable out to feed the new tension cable through the convertible top. It may be necessary to open the convertible top to get the spring of the new cable passed through the body.

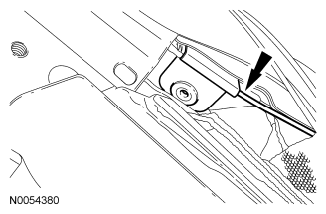

With the convertible top 15.25 cm (6 in) from the top of the window, drill out the rivet attaching the old cable to the convertible top frame No. 5 bow. Use a small punch to knock out the rivet slug and clear the hole.

Fig 5: Locating Rivet Slug Hole
Courtesy of FORD MOTOR CO.
