Windshield Glass: Notes
WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOLS
| Deluxe Windshield Removal Tool 164-R2450 or equivalent |
|
| The Pumper 164-R2459 or equivalent |
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| Dow Urethane Adhesive Betaseal™ Express |
- |
| Dow Urethane One Step Glass Primer Betaprime™ 5500 / 5500A / 5500SA |
- |
| Sika Urethane Adhesive Sika Tack ASAP |
- |
| Sika Urethane Metal and Glass Primer Sika 206 G+P |
- |
| Ultra-Clear Spray Glass Cleaner ZC-23 |
ESR-M14P5-A |

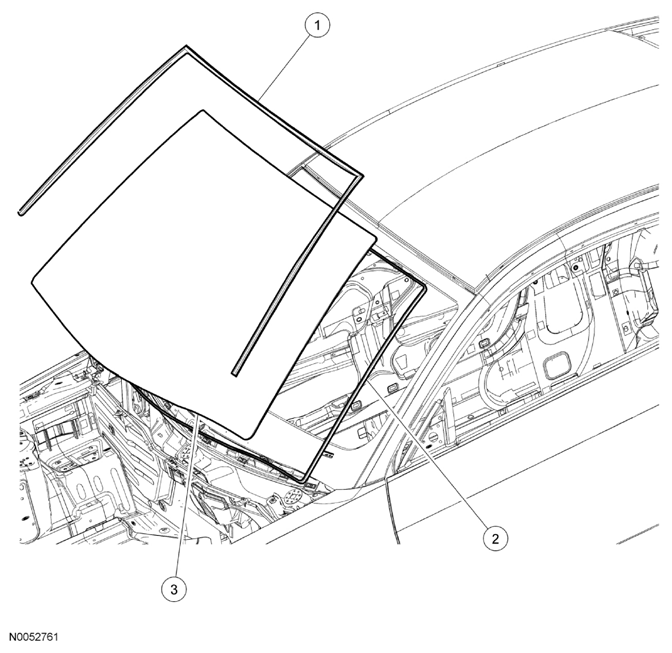

| Item | Part Number | Description |
|---|---|---|
| 1 | 7603110 | Windshield glass moulding (may be serviced separately and is included with new windshield glass assembly) |
| 2 | - | Urethane adhesive |
| 3 | 6303100 | Windshield glass assembly (new assembly includes windshield glass moulding) |
