Window Glass - Rear Quarter, Coupe: Notes

WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOLS

G08646803Courtesy of FORD MOTOR CO.
Deluxe Windshield Removal Tool
164-R2450 or equivalent
MATERIAL SPECIFICATIONS

Item Specification
Dow Urethane Adhesive
Betaseal™ Express
-
Dow Urethane One Step Glass Primer
Betaprime™ 5500 / 5500A / 5500SA
-
Sika Urethane Adhesive
Sika Tack ASAP
-
Sika Urethane Metal and Glass Primer
Sika 206 G+P
-
Ultra-Clear Spray Glass Cleaner
ZC-23
ESR-M14P5-A

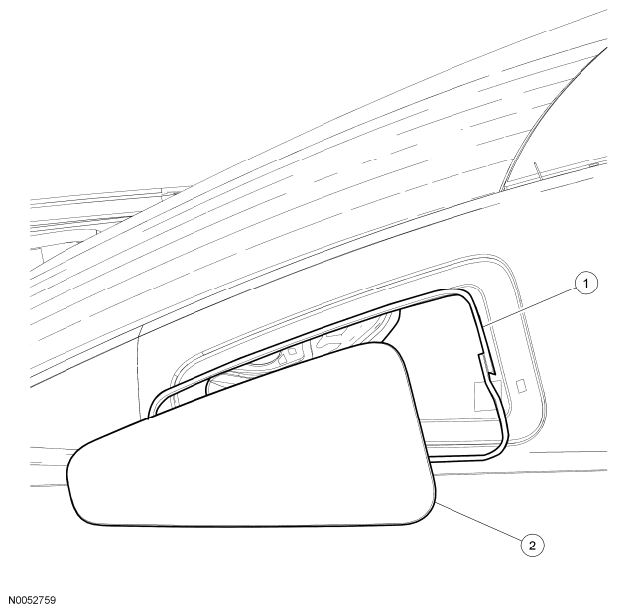

Fig 1: Identifying Urethane Adhesive And Quarter Window Glass
G06403994Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Urethane adhesive
2 6329710 RH/632971 LH Quarter window glass
