Window Glass - Rear Quarter, Convertible: Notes

WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

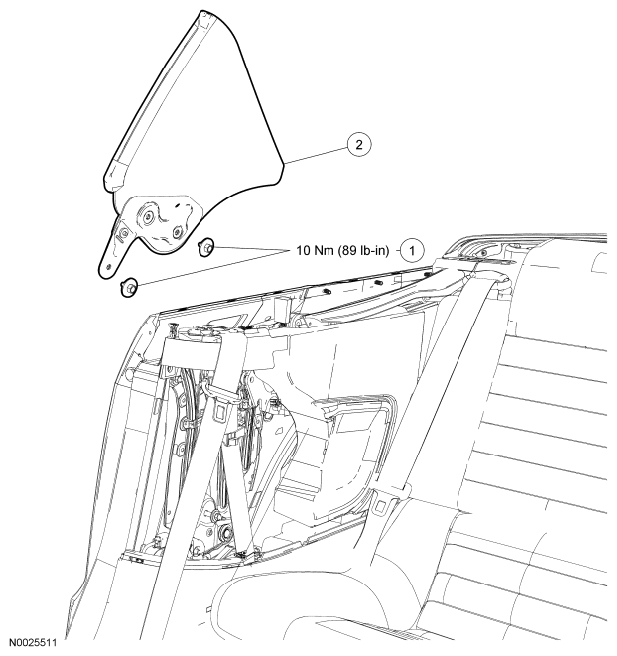

Fig 1: Rear Quarter Window Glass And Bolts With Torque Specifications
G06403999Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W711156 Rear quarter window glass bolts (2 required)
2 7629710 RH/7629711 LH Rear quarter window glass
