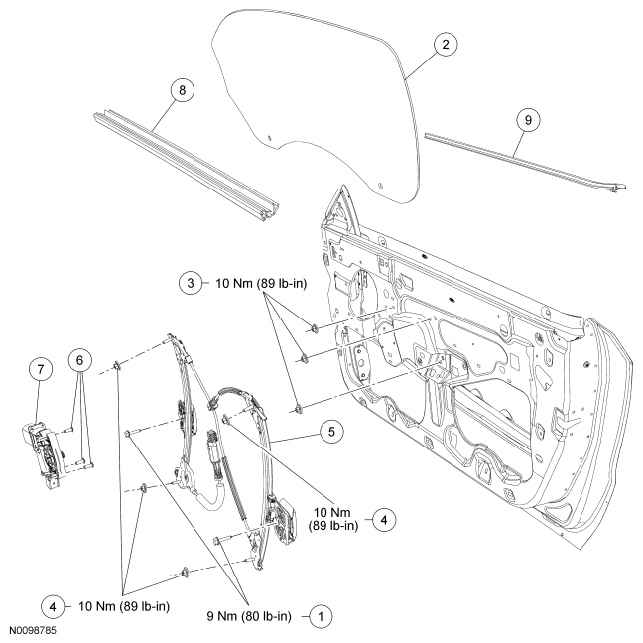

Glass, Frames and Mechanisms - Exploded View, Front Door
WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Coupe shown in illustration, convertible similar.
NOTE:
RH side shown in illustration, LH side similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | 63231A06 | Door window glass bolts and sleeves (2 required) |
| 2 | 6321410 RH/6321411 LH | Door window glass (coupe) |
| 2 | 7621410 RH/7621411 LH | Door window glass (convertible) |
| 3 | N621907 | Door window motor nuts (3 required) |
| 4 | N621907 | Door window regulator nuts (4 required) |
| 5 | 6323208 RH/6323209 LH | Door window regulator |
| 6 | - | Door window regulator motor screws (3 required) |
| 7 | 6323394 RH/6323395 LH | Door window regulator motor |
| 8 | 6321456 RH/6321457 LH | Interior beltline weatherstrip |
| 9 | 6321452 RH/6321453 LH | Exterior beltline weatherstrip |
- For additional information, refer to the appropriate procedures.
