Cowl Vent Screen
WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

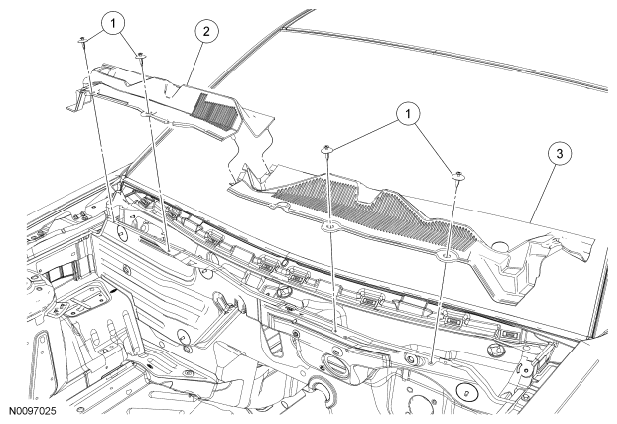

| Item | Part Number | Description |
|---|---|---|
| 1 | N804837 | Cowl vent screen pin-type retainers (4 required) |
| 2 | 63018A14 | RH cowl vent screen |
| 3 | 63018A15 | LH cowl vent screen |
- Remove the 2 wiper pivot arms. For additional information, refer to WIPERS AND WASHERS .
- Remove the 4 cowl vent screen pin-type retainers.
-
NOTE: The RH cowl vent screen overlaps the LH cowl vent screen and must be removed first.
Remove the RH and LH cowl vent screens.
- To install, reverse the removal procedure.
