Fuel Pump Module: Notes
WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOLS
| Fuel Storage Tanker 164-R3202 or equivalent |
|
| Fuel Tank Sender Unit Wrench 310-123 |

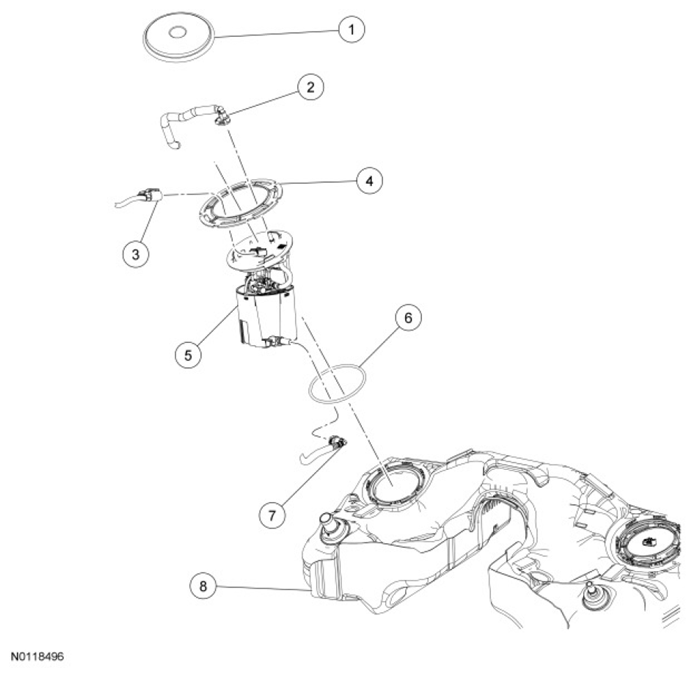

| Item | Part Number | Description |
|---|---|---|
| 1 | 9C335 | Fuel Pump (FP) module access cover |
| 2 | - | Fuel tube-to-FP module quick connect coupling (part of 9J279) |
| 3 | 14A464 | FP module electrical connector |
| 4 | 9C385 | FP module lock ring |
| 5 | 9H307 | FP module |
| 6 | 9E275 | FP module O-ring seal |
| 7 | - | Internal fuel tube-to-FP module quick connect coupling (part of 9002) |
| 8 | 9002 | Fuel tank |
