Transmission Fluid Cooler Tubes (3.7L Engine)
WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

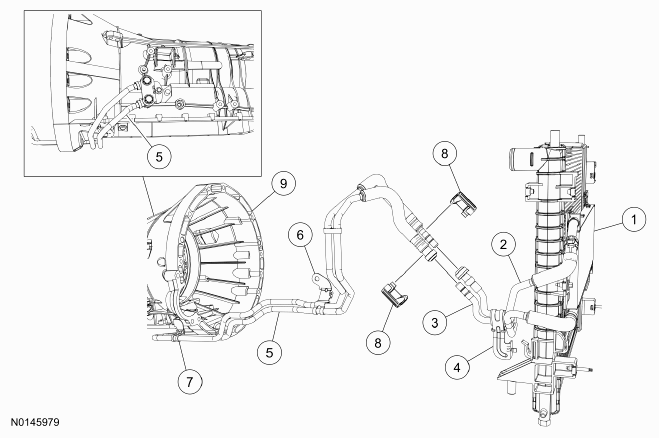

| Item | Part Number | Description |
|---|---|---|
| 1 | 7A095 | Transmission fluid cooler |
| 2 | 7R081 | Transmission fluid cooler inlet hose |
| 3 | 7R081 | Transmission fluid cooler outlet hose |
| 4 | - | Transmission fluid cooler assembly bracket (part of 7R081) |
| 5 | 7R081 | Transmission fluid cooler tube assembly |
| 6 | - | Transmission fluid cooler tube assembly bracket (part of 7R081) |
| 7 | - | Transmission fluid cooler tube assembly bracket (part of 7R081) |
| 8 | 7Z465 | Transmission fluid cooler tube quick connect secondary latches |
| 9 | 7005 | Transmission case |
