Timing Drive Components: Installation

WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Do not compress the ratchet assembly. This will damage the ratchet assembly.

NOTE: LH shown in illustration, RH similar.

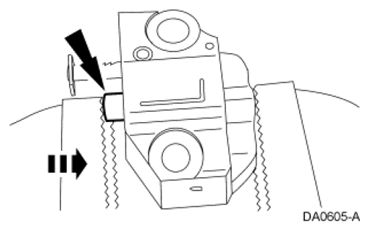

Compress each tensioner plunger, using an edge of a vise.

Fig 1: Compressing Tensioner Plunger Using Vise
Courtesy of FORD MOTOR CO.

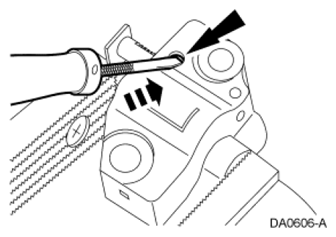

Using a small screwdriver or pick, push back and hold the ratchet mechanism.

Fig 2: Holding Ratchet Mechanism Using Screwdriver
Courtesy of FORD MOTOR CO.
While holding the ratchet mechanism, push the ratchet arm back into the tensioner housing.

Fig 3: Pushing Ratchet Arm Back Into Tensioner Housing
Courtesy of FORD MOTOR CO.
Install a suitable pin into the hole of each tensioner housing to hold the ratchet assembly and plunger in place during installation.
- Remove the tensioner from the vise.

  Fig 4: Installing Paper Clip Into Hole Of Tensioner Housing
  Courtesy of FORD MOTOR CO.
If the colored links are not visible, mark one link on one end and 2 links on the other end, and use as timing marks.

Fig 5: Locating Copper Link Timing Marks
Courtesy of FORD MOTOR CO.
Using the Crankshaft Holding Tool, position the crankshaft.

Fig 6: Positioning Crankshaft Using Crankshaft Holding Tool
Courtesy of FORD MOTOR CO.
Install the crankshaft sprocket with the flange facing forward.

Fig 7: Locating Crankshaft Sprocket Flange Facing
Courtesy of FORD MOTOR CO.
Install the LH primary timing chain guide and the 2 bolts.
- Tighten to 10 Nm (89 lb-in).

  Fig 8: Locating LH Primary Timing Chain Guide And Bolts
  Courtesy of FORD MOTOR CO.
Position the camshaft sprocket timing marks as shown in illustration.

Fig 9: Locating Camshaft Sprocket Timing Marks
Courtesy of FORD MOTOR CO.
Position the LH (inner) timing chain onto the crankshaft sprocket, aligning the one colored link on the timing chain with the slot on the crankshaft sprocket.

Fig 10: Locating Crankshaft Sprocket Timing Mark Aligning Position
Courtesy of FORD MOTOR CO.
Install the LH timing chain on the camshaft sprocket, aligning the 2 colored links with the timing mark on the sprocket.

Fig 11: Locating Timing Marks On Timing Chain
Courtesy of FORD MOTOR CO.
Install the LH primary timing chain tensioner arm.

Fig 12: Locating LH Primary Timing Chain Tensioner Arm
Courtesy of FORD MOTOR CO.
Install the LH primary timing chain tensioner and the 2 bolts.
- Tighten to 25 Nm (18 lb-ft).
- Remove the pin from the tensioner.

  Fig 13: Locating LH Primary Timing Chain Tensioner And Bolts
  Courtesy of FORD MOTOR CO.
Install the RH primary timing chain guide and the 2 bolts.
- Tighten to 10 Nm (89 lb-in).

  Fig 14: Locating RH Primary Timing Chain Guide And Bolts
  Courtesy of FORD MOTOR CO.
Position the RH (outer) timing chain on the crankshaft sprocket, aligning the colored link with the timing marks on the sprocket.

Fig 15: Locating Copper (Marked) Link With Timing Mark On Crankshaft Sprocket
Courtesy of FORD MOTOR CO.
Install the RH timing chain on the camshaft sprocket, aligning the 2 colored links with the timing mark on the sprocket.

Fig 16: Locating RH Timing Chain Timing Mark On Camshaft Sprocket
Courtesy of FORD MOTOR CO.
Install the RH primary timing chain tensioner arm.

Fig 17: Locating RH Primary Timing Chain Tensioner Arm
Courtesy of FORD MOTOR CO.
Install the RH primary timing chain tensioner and the 2 bolts.
- Tighten to 25 Nm (18 lb-ft).
- Remove the pin from the tensioner.

  Fig 18: Locating RH Primary Timing Chain Tensioner And Bolts
  Courtesy of FORD MOTOR CO.
As a post-check, verify correct alignment of all timing marks. Make sure that the colored links are lined up with the marks on the crankshaft sprocket and the camshaft sprockets.

Fig 19: Locating Timing Marks On Crankshaft Sprocket And Camshaft Sprockets
Courtesy of FORD MOTOR CO.
Install the crankshaft washer.

Fig 20: Locating Crankshaft Washer
Courtesy of FORD MOTOR CO.
Install the crankshaft sensor ring.

Fig 21: Locating Crankshaft Sensor Ring
Courtesy of FORD MOTOR CO.
Install the engine front cover. For additional information, refer to ENGINE FRONT COVER .
Install the camshaft roller followers. For additional information, refer to VALVE TRAIN COMPONENTS - EXPLODED VIEW and CAMSHAFT ROLLER FOLLOWER .
