Oil Level Indicator and Tube: Notes
WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL SPECIFICATIONS
| Item |
Specification |
Motorcraft® SAE 5W-50 Full Synthetic Motor Oil
XO-5W50-QGT or equivalent |
WSS-M2C931-B |
Courtesy of FORD MOTOR CO.

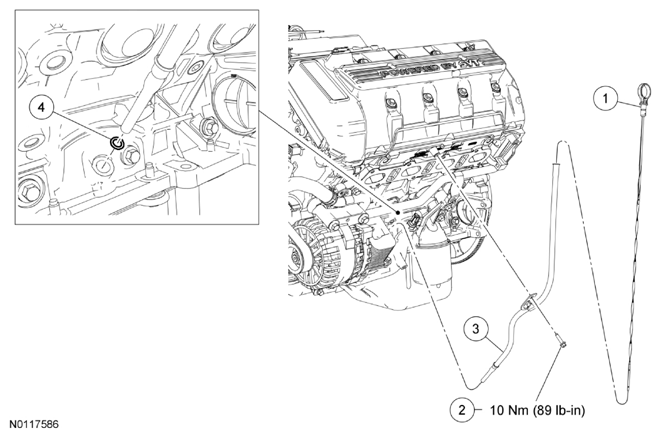

| Item |
Part Number |
Description |
| 1 |
6750 |
Oil level indicator |
| 2 |
N806155 |
Oil level indicator tube bolt |
| 3 |
6754 |
Oil level indicator tube |
| 4 |
- |
O-ring seal |
