Oil Cooler Thermostat: Installation

WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
  1. NOTE: Clean the mounting surfaces with Motorcraft® Metal Surface Prep. Follow the directions on the packaging. Inspect the mating surfaces.

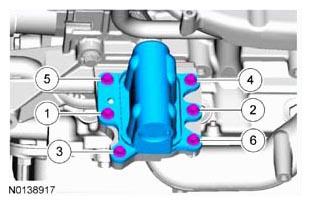

    Using new gaskets, install the oil cooler thermostat and the 6 bolts. Tighten in the sequence shown in illustration in 2 stages.

    • Stage 1: Tighten to 9 Nm (80 lb-in).
    • Stage 2: Tighten an additional 60 degrees.
      G08643061
  2. Install the ACL assembly and the ACL outlet tube. Refer to INTAKE AIR DISTRIBUTION & FILTERING .
  3. Connect the battery ground cable. Refer to BATTERY, MOUNTING AND CABLES .
